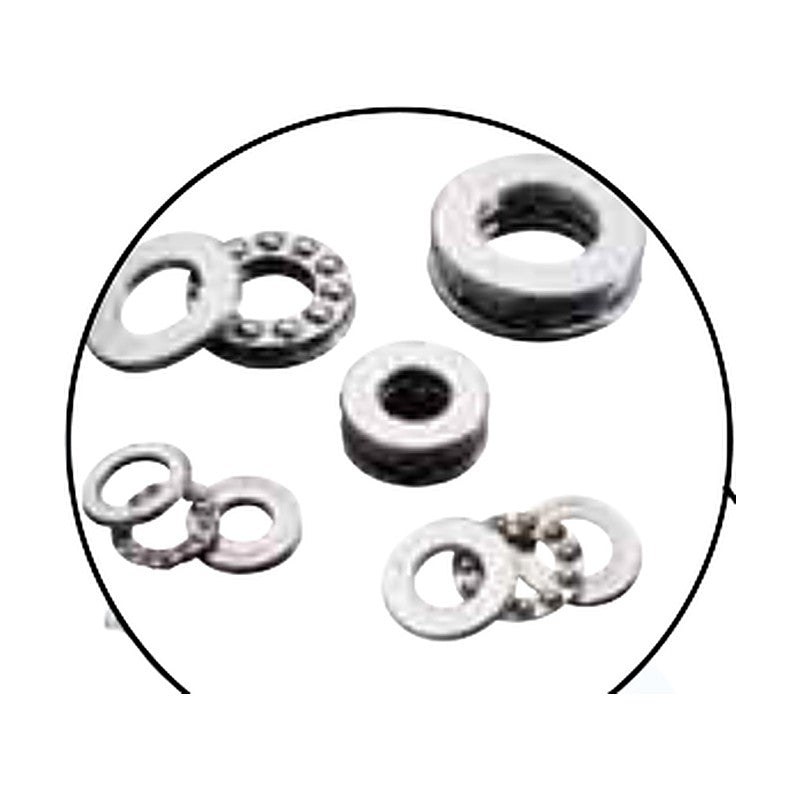

WBC 532U/533U/534U Thrust Ball Bearings with Seating Ring

WBC 532U/533U/534U Thrust Ball Bearings with Seating Ring

WBC single direction thrust ball bearings with spherical housing washer and seating ring (U), series 532U, 533U and 534U.

Key features

  • Spherical housing washer with matching seating ring (U)
  • Accommodates misalignment between shaft and housing
  • Single direction axial load capacity
  • T = height H2 including seating ring
  • Load ratings in kgf, speeds for grease and oil

Specifications

Brand WBC
Manufacturer Wonil Bearing Industry Co., Ltd.
Bearing type Thrust ball bearing
Load ratings kgf (as catalogued)
Units mm
Direction Single
Seat Spherical washer + seating ring (C)
Source WBC (Wonil Bearing) Thrust Bearing General Catalogue, p. 14-23
53200U d: 10 mm | D: 26 mm | T: 13 mm | C: 1,300 kgf | Co: 1,440 kgf | n oil: 9,000 rpm
53201U d: 12 mm | D: 28 mm | T: 13 mm | C: 1,350 kgf | Co: 1,600 kgf | n oil: 8,500 rpm
53202U d: 15 mm | D: 32 mm | T: 15 mm | C: 1,710 kgf | Co: 2,100 kgf | n oil: 7,500 rpm
53203U d: 17 mm | D: 35 mm | T: 15 mm | C: 1,760 kgf | Co: 2,300 kgf | n oil: 7,500 rpm
53204U d: 20 mm | D: 40 mm | T: 17 mm | C: 2,290 kgf | Co: 3,200 kgf | n oil: 6,000 rpm
53205U d: 25 mm | D: 47 mm | T: 19 mm | C: 2,860 kgf | Co: 4,250 kgf | n oil: 5,600 rpm
53305U d: 25 mm | D: 52 mm | T: 22 mm | C: 3,650 kgf | Co: 5,200 kgf | n oil: 4,800 rpm
53405U d: 25 mm | D: 60 mm | T: 29 mm | C: 5,700 kgf | Co: 7,550 kgf | n oil: 4,000 rpm
53206U d: 30 mm | D: 52 mm | T: 20 mm | C: 3,000 kgf | Co: 4,900 kgf | n oil: 5,300 rpm
53306U d: 30 mm | D: 60 mm | T: 25 mm | C: 4,400 kgf | Co: 6,650 kgf | n oil: 4,200 rpm
53406U d: 30 mm | D: 70 mm | T: 33 mm | C: 7,450 kgf | Co: 10,600 kgf | n oil: 3,400 rpm
53207U d: 35 mm | D: 62 mm | T: 22 mm | C: 4,050 kgf | Co: 6,600 kgf | n oil: 4,500 rpm
53307U d: 35 mm | D: 68 mm | T: 28 mm | C: 5,700 kgf | Co: 8,850 kgf | n oil: 3,700 rpm
53407U d: 35 mm | D: 80 mm | T: 37 mm | C: 8,950 kgf | Co: 13,100 kgf | n oil: 3,000 rpm
53208U d: 40 mm | D: 68 mm | T: 23 mm | C: 4,850 kgf | Co: 8,300 kgf | n oil: 4,200 rpm
53308U d: 40 mm | D: 78 mm | T: 31 mm | C: 7,100 kgf | Co: 11,400 kgf | n oil: 3,300 rpm
53408U d: 40 mm | D: 90 mm | T: 42 mm | C: 10,500 kgf | Co: 15,800 kgf | n oil: 2,600 rpm
53209U d: 45 mm | D: 73 mm | T: 24 mm | C: 4,900 kgf | Co: 8,850 kgf | n oil: 4,000 rpm
53309U d: 45 mm | D: 85 mm | T: 33 mm | C: 8,200 kgf | Co: 13,800 kgf | n oil: 3,000 rpm
53409U d: 45 mm | D: 100 mm | T: 46 mm | C: 13,000 kgf | Co: 20,700 kgf | n oil: 2,400 rpm
53210U d: 50 mm | D: 78 mm | T: 26 mm | C: 5,000 kgf | Co: 9,400 kgf | n oil: 3,600 rpm
53310U d: 50 mm | D: 95 mm | T: 37 mm | C: 9,950 kgf | Co: 17,000 kgf | n oil: 2,800 rpm
53410U d: 50 mm | D: 110 mm | T: 50 mm | C: 15,000 kgf | Co: 24,300 kgf | n oil: 2,200 rpm
53211U d: 55 mm | D: 90 mm | T: 30 mm | C: 7,150 kgf | Co: 13,400 kgf | n oil: 3,200 rpm
53311U d: 55 mm | D: 105 mm | T: 42 mm | C: 11,800 kgf | Co: 20,600 kgf | n oil: 2,400 rpm
53411U d: 55 mm | D: 120 mm | T: 55 mm | C: 18,500 kgf | Co: 29,500 kgf | n oil: 1,900 rpm
53212U d: 60 mm | D: 95 mm | T: 31 mm | C: 7,300 kgf | Co: 14,200 kgf | n oil: 3,000 rpm
53312U d: 60 mm | D: 110 mm | T: 42 mm | C: 12,100 kgf | Co: 22,200 kgf | n oil: 2,400 rpm
53412U d: 60 mm | D: 130 mm | T: 58 mm | C: 20,600 kgf | Co: 33,500 kgf | n oil: 1,800 rpm
53213U d: 65 mm | D: 100 mm | T: 32 mm | C: 7,700 kgf | Co: 15,900 kgf | n oil: 2,800 rpm
53313U d: 65 mm | D: 115 mm | T: 43 mm | C: 12,500 kgf | Co: 23,800 kgf | n oil: 2,300 rpm
53413U d: 65 mm | D: 140 mm | T: 65 mm | C: 23,800 kgf | Co: 41,500 kgf | n oil: 1,600 rpm
53214U d: 70 mm | D: 105 mm | T: 32 mm | C: 7,550 kgf | Co: 15,900 kgf | n oil: 2,800 rpm
53314U d: 70 mm | D: 125 mm | T: 48 mm | C: 14,000 kgf | Co: 26,400 kgf | n oil: 2,000 rpm
53414U d: 70 mm | D: 150 mm | T: 69 mm | C: 25,700 kgf | Co: 46,500 kgf | n oil: 1,500 rpm
53215U d: 75 mm | D: 110 mm | T: 32 mm | C: 7,950 kgf | Co: 17,600 kgf | n oil: 2,700 rpm
53315U d: 75 mm | D: 135 mm | T: 52 mm | C: 16,200 kgf | Co: 31,000 kgf | n oil: 1,900 rpm
53415U d: 75 mm | D: 160 mm | T: 75 mm | C: 25,900 kgf | Co: 47,500 kgf | n oil: 1,400 rpm
53216U d: 80 mm | D: 115 mm | T: 33 mm | C: 8,050 kgf | Co: 18,400 kgf | n oil: 2,600 rpm
53316U d: 80 mm | D: 140 mm | T: 52 mm | C: 16,700 kgf | Co: 33,000 kgf | n oil: 1,800 rpm
53416U d: 80 mm | D: 170 mm | T: 78 mm | C: 27,800 kgf | Co: 52,500 kgf | n oil: 1,400 rpm
53217U d: 85 mm | D: 125 mm | T: 37 mm | C: 9,800 kgf | Co: 22,300 kgf | n oil: 2,400 rpm
53317U d: 85 mm | D: 150 mm | T: 58 mm | C: 21,100 kgf | Co: 41,000 kgf | n oil: 1,700 rpm
53417XU d: 85 mm | D: 180 mm | T: 83 mm | C: 31,500 kgf | Co: 63,500 kgf | n oil: 1,300 rpm
53218U d: 90 mm | D: 135 mm | T: 42 mm | C: 11,600 kgf | Co: 26,200 kgf | n oil: 2,200 rpm
53318U d: 90 mm | D: 155 mm | T: 59 mm | C: 21,900 kgf | Co: 44,000 kgf | n oil: 1,600 rpm
53418XU d: 90 mm | D: 190 mm | T: 88 mm | C: 33,500 kgf | Co: 69,500 kgf | n oil: 1,200 rpm
53220U d: 100 mm | D: 150 mm | T: 45 mm | C: 13,700 kgf | Co: 31,500 kgf | n oil: 1,900 rpm
53320U d: 100 mm | D: 170 mm | T: 64 mm | C: 24,300 kgf | Co: 50,500 kgf | n oil: 1,500 rpm
53420XU d: 100 mm | D: 210 mm | T: 98 mm | C: 38,000 kgf | Co: 83,000 kgf | n oil: 1,100 rpm
53222U d: 110 mm | D: 160 mm | T: 45 mm | C: 13,900 kgf | Co: 33,500 kgf | n oil: 1,900 rpm
53322XU d: 110 mm | D: 190 mm | T: 72 mm | C: 28,800 kgf | Co: 63,500 kgf | n oil: 1,300 rpm
53422XU d: 110 mm | D: 230 mm | T: 109 mm | C: 42,000 kgf | Co: 97,500 kgf | n oil: 950 rpm
53224U d: 120 mm | D: 170 mm | T: 46 mm | C: 14,400 kgf | Co: 36,500 kgf | n oil: 1,800 rpm
53324XU d: 120 mm | D: 210 mm | T: 80 mm | C: 33,500 kgf | Co: 78,500 kgf | n oil: 1,200 rpm
53424XU d: 120 mm | D: 250 mm | T: 118 mm | C: 49,000 kgf | Co: 118,000 kgf | n oil: 850 rpm
53226XU d: 130 mm | D: 190 mm | T: 53 mm | C: 18,700 kgf | Co: 46,500 kgf | n oil: 1,600 rpm
53326XU d: 130 mm | D: 225 mm | T: 86 mm | C: 35,500 kgf | Co: 86,500 kgf | n oil: 1,100 rpm
53426XU d: 130 mm | D: 270 mm | T: 128 mm | C: 53,500 kgf | Co: 134,000 kgf | n oil: 800 rpm
53228XU d: 140 mm | D: 200 mm | T: 55 mm | C: 18,900 kgf | Co: 48,500 kgf | n oil: 1,500 rpm
53328XU d: 140 mm | D: 240 mm | T: 92 mm | C: 37,500 kgf | Co: 95,000 kgf | n oil: 1,000 rpm
53428XU d: 140 mm | D: 280 mm | T: 131 mm | C: 56,500 kgf | Co: 148,000 kgf | n oil: 750 rpm
53230XU d: 150 mm | D: 215 mm | T: 60 mm | C: 24,300 kgf | Co: 62,000 kgf | n oil: 1,400 rpm
53330XU d: 150 mm | D: 250 mm | T: 92 mm | C: 39,000 kgf | Co: 101,000 kgf | n oil: 1,000 rpm
53430XU d: 150 mm | D: 300 mm | T: 140 mm | C: 63,000 kgf | Co: 170,000 kgf | n oil: 710 rpm
53232XU d: 160 mm | D: 225 mm | T: 61 mm | C: 25,400 kgf | Co: 68,000 kgf | n oil: 1,300 rpm
53332XU d: 160 mm | D: 270 mm | T: 100 mm | C: 48,500 kgf | Co: 124,000 kgf | n oil: 900 rpm
53432XU d: 160 mm | D: 320 mm | T: 150 mm | C: 66,000 kgf | Co: 187,000 kgf | n oil: 670 rpm
53234XU d: 170 mm | D: 240 mm | T: 65 mm | C: 28,500 kgf | Co: 77,000 kgf | n oil: 1,200 rpm
53334XU d: 170 mm | D: 280 mm | T: 100 mm | C: 47,500 kgf | Co: 133,000 kgf | n oil: 900 rpm
53434XU d: 170 mm | D: 340 mm | T: 156 mm | C: 73,000 kgf | Co: 210,000 kgf | n oil: 630 rpm
53236XU d: 180 mm | D: 250 mm | T: 66 mm | C: 28,900 kgf | Co: 80,500 kgf | n oil: 1,200 rpm
53336XU d: 180 mm | D: 300 mm | T: 109 mm | C: 49,000 kgf | Co: 142,000 kgf | n oil: 800 rpm
53436XU d: 180 mm | D: 360 mm | T: 164 mm | C: 76,500 kgf | Co: 230,000 kgf | n oil: 600 rpm
53238XU d: 190 mm | D: 270 mm | T: 73 mm | C: 32,500 kgf | Co: 93,500 kgf | n oil: 1,100 rpm
53338XU d: 190 mm | D: 320 mm | T: 121 mm | C: 56,000 kgf | Co: 165,000 kgf | n oil: 750 rpm
53240XU d: 200 mm | D: 280 mm | T: 14 mm | C: 32,500 kgf | Co: 93,500 kgf | n oil: 1,100 rpm
53340XU d: 200 mm | D: 340 mm | T: 130 mm | C: 61,500 kgf | Co: 188,000 kgf | n oil: 710 rpm
53244XU d: 220 mm | D: 300 mm | T: 75 mm | C: 33,500 kgf | Co: 102,000 kgf | n oil: 1,000 rpm
53248XU d: 240 mm | D: 340 mm | T: 92 mm | C: 43,000 kgf | Co: 139,000 kgf | n oil: 850 rpm
53252XU d: 260 mm | D: 360 mm | T: 93 mm | C: 43,500 kgf | Co: 146,000 kgf | n oil: 800 rpm
53256XU d: 280 mm | D: 380 mm | T: 94 mm | C: 46,000 kgf | Co: 165,000 kgf | n oil: 800 rpm
53260XU d: 300 mm | D: 420 mm | T: 112 mm | C: 55,000 kgf | Co: 204,000 kgf | n oil: 670 rpm
53264XU d: 320 mm | D: 440 mm | T: 112 mm | C: 59,500 kgf | Co: 226,000 kgf | n oil: 670 rpm
53268XU d: 340 mm | D: 460 mm | T: 113 mm | C: 60,500 kgf | Co: 236,000 kgf | n oil: 650 rpm
53272XU d: 360 mm | D: 500 mm | T: 130 mm | C: 72,000 kgf | Co: 295,000 kgf | n oil: 560 rpm
