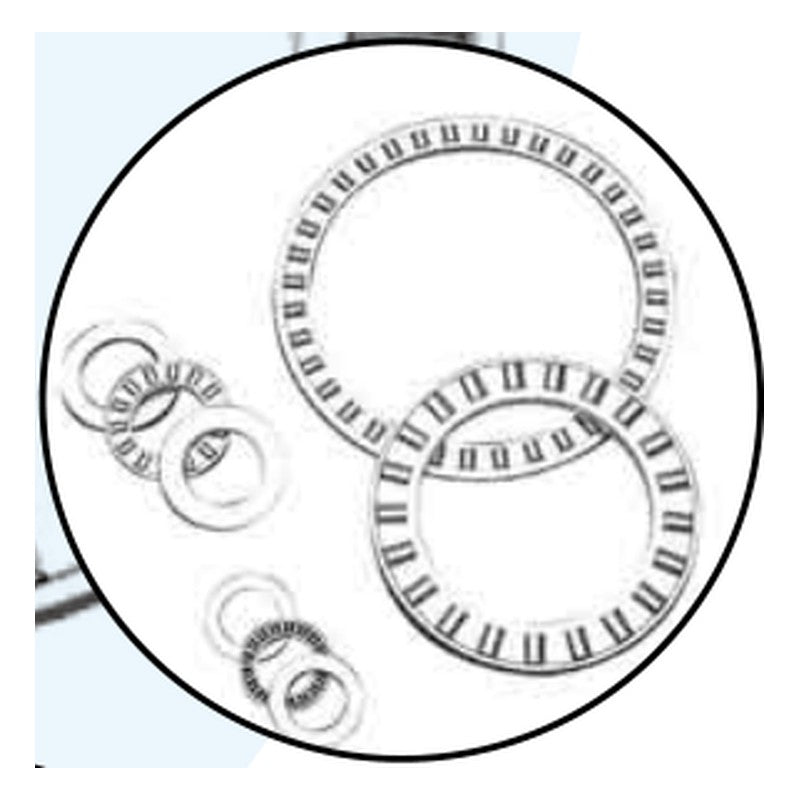

WBC 811/812/893/874/894 Cylindrical Roller Thrust Bearings

WBC 811/812/893/874/894 Cylindrical Roller Thrust Bearings

WBC cylindrical roller thrust bearings in series 811, 812, 893, 874 and 894, for heavy axial loads and shock loads where axial rigidity is required.

Key features

  • High axial load capacity, insensitive to shock loads
  • Consist of K roller-and-cage assembly, WS shaft washer and GS housing washer
  • Components also available separately (K, WS, GS, LS)
  • Bore from 15 mm to 600 mm
  • Shaft tolerance h6 (j6), housing H7 (K7) per catalogue

Specifications

Brand WBC
Manufacturer Wonil Bearing Industry Co., Ltd.
Bearing type Cylindrical roller thrust bearing
Series 811, 812, 893, 874, 894
Load ratings kN
Units mm
Source WBC (Wonil Bearing) Thrust Bearing General Catalogue, p. 42-51
81102 d: 15 mm | C: 10.4 kN | Co: 24.5 kN | n grease: 4,500 rpm | n oil: 12,000 rpm
81103 d: 17 mm | C: 10.8 kN | Co: 27 kN | n grease: 4,300 rpm | n oil: 11,000 rpm
81104 d: 20 mm | C: 20.4 kN | Co: 54 kN | n grease: 3,800 rpm | n oil: 9,500 rpm
81105 d: 25 mm | C: 26.5 kN | Co: 73.5 kN | n grease: 3,200 rpm | n oil: 8,000 rpm
81106 d: 30 mm | C: 28 kN | Co: 83 kN | n grease: 2,600 rpm | n oil: 6,700 rpm
81206 d: 30 mm | C: 46.5 kN | Co: 122 kN | n grease: 2,400 rpm | n oil: 6,300 rpm
89306 d: 30 mm | C: 69 kN | Co: 197 kN | n grease: 2,700 rpm | n oil: 6,500 rpm
81107 d: 35 mm | C: 26 kN | Co: 78 kN | n grease: 2,200 rpm | n oil: 6,000 rpm
81207 d: 35 mm | C: 51 kN | Co: 143 kN | n grease: 1,900 rpm | n oil: 5,300 rpm
89307 d: 35 mm | C: 80 kN | Co: 237 kN | n grease: 2,300 rpm | n oil: 5,500 rpm
81108 d: 40 mm | C: 38 kN | Co: 116 kN | n grease: 1,900 rpm | n oil: 5,300 rpm
81208 d: 40 mm | C: 76.5 kN | Co: 220 kN | n grease: 1,700 rpm | n oil: 4,800 rpm
89308 d: 40 mm | C: 122 kN | Co: 385 kN | n grease: 1,500 rpm | n oil: 4,900 rpm
87408 d: 40 mm | C: 135 kN | Co: 480 kN | n grease: 1,600 rpm | n oil: 4,400 rpm
81109 d: 45 mm | C: 45 kN | Co: 153 kN | n grease: 1,700 rpm | n oil: 4,800 rpm
81209 d: 45 mm | C: 83 kN | Co: 255 kN | n grease: 1,600 rpm | n oil: 4,500 rpm
89309 d: 45 mm | C: 139 kN | Co: 445 kN | n grease: 1,400 rpm | n oil: 4,400 rpm
87409 d: 45 mm | C: 154 kN | Co: 560 kN | n grease: 1,500 rpm | n oil: 4,000 rpm
81110 d: 50 mm | C: 42.5 kN | Co: 143 kN | n grease: 1,500 rpm | n oil: 4,300 rpm
81210 d: 50 mm | C: 88 kN | Co: 285 kN | n grease: 1,400 rpm | n oil: 4,000 rpm
89310 d: 50 mm | C: 167 kN | Co: 560 kN | n grease: 1,300 rpm | n oil: 4,000 rpm
87410 d: 50 mm | C: 200 kN | Co: 740 kN | n grease: 1,300 rpm | n oil: 3,600 rpm
81111 d: 55 mm | C: 52 kN | Co: 193 kN | n grease: 1,400 rpm | n oil: 4,000 rpm
81211 d: 55 mm | C: 106 kN | Co: 340 kN | n grease: 1,200 rpm | n oil: 3,600 rpm
89311 d: 55 mm | C: 184 kN | Co: 600 kN | n grease: 1,300 rpm | n oil: 3,600 rpm
87411 d: 55 mm | C: 222 kN | Co: 870 kN | n grease: 1,200 rpm | n oil: 3,300 rpm
81112 d: 60 mm | C: 67 kN | Co: 232 kN | n grease: 1,200 rpm | n oil: 3,600 rpm
81212 d: 60 mm | C: 114 kN | Co: 365 kN | n grease: 1,100 rpm | n oil: 3,400 rpm
89312 d: 60 mm | C: 196 kN | Co: 670 kN | n grease: 1,200 rpm | n oil: 3,400 rpm
87412 d: 60 mm | C: 260 kN | Co: 1,000 kN | n grease: 1,100 rpm | n oil: 3,000 rpm
89412 d: 60 mm | C: 390 kN | Co: 1,220 kN | n grease: 900 rpm | n oil: 3,000 rpm
81113 d: 65 mm | C: 68 kN | Co: 245 kN | n grease: 1,100 rpm | n oil: 3,400 rpm
81213 d: 65 mm | C: 118 kN | Co: 390 kN | n grease: 1,000 rpm | n oil: 3,200 rpm
89313 d: 65 mm | C: 194 kN | Co: 670 kN | n grease: 1,200 rpm | n oil: 2,200 rpm
87413 d: 65 mm | C: 300 kN | Co: 1,140 kN | n grease: 1,000 rpm | n oil: 2,800 rpm
89413 d: 65 mm | C: 445 kN | Co: 1,410 kN | n grease: 850 rpm | n oil: 2,800 rpm
81114 d: 70 mm | C: 71 kN | Co: 265 kN | n grease: 1,000 rpm | n oil: 3,200 rpm
81214 d: 70 mm | C: 122 kN | Co: 415 kN | n grease: 950 rpm | n oil: 3,000 rpm
89314 d: 70 mm | C: 239 kN | Co: 830 kN | n grease: 1,000 rpm | n oil: 3,000 rpm
87414 d: 70 mm | C: 360 kN | Co: 1,380 kN | n grease: 900 rpm | n oil: 2,600 rpm
89414 d: 70 mm | C: 450 kN | Co: 1,390 kN | n grease: 900 rpm | n oil: 2,600 rpm
81115 d: 75 mm | C: 75 kN | Co: 285 kN | n grease: 950 rpm | n oil: 3,000 rpm
81215 d: 75 mm | C: 125 kN | Co: 440 kN | n grease: 900 rpm | n oil: 2,800 rpm
89315 d: 75 mm | C: 285 kN | Co: 1,010 kN | n grease: 1,000 rpm | n oil: 2,700 rpm
87415 d: 75 mm | C: 430 kN | Co: 1,660 kN | n grease: 800 rpm | n oil: 2,500 rpm
89415 d: 75 mm | C: 500 kN | Co: 1,580 kN | n grease: 800 rpm | n oil: 2,500 rpm
81116 d: 80 mm | C: 76.5 kN | Co: 300 kN | n grease: 900 rpm | n oil: 2,800 rpm
81216 d: 80 mm | C: 129 kN | Co: 455 kN | n grease: 850 rpm | n oil: 2,600 rpm
89316 d: 80 mm | C: 305 kN | Co: 1,110 kN | n grease: 950 rpm | n oil: 2,600 rpm
87416 d: 80 mm | C: 450 kN | Co: 1,810 kN | n grease: 750 rpm | n oil: 2,300 rpm
89416 d: 80 mm | C: 560 kN | Co: 1,770 kN | n grease: 750 rpm | n oil: 2,300 rpm
81117 d: 85 mm | C: 76.5 kN | Co: 310 kN | n grease: 850 rpm | n oil: 2,600 rpm
81217 d: 85 mm | C: 153 kN | Co: 550 kN | n grease: 800 rpm | n oil: 2,400 rpm
89317 d: 85 mm | C: 325 kN | Co: 1,140 kN | n grease: 900 rpm | n oil: 2,500 rpm
87417 d: 85 mm | C: 485 kN | Co: 1,920 kN | n grease: 700 rpm | n oil: 2,200 rpm
89417 d: 85 mm | C: 620 kN | Co: 1,980 kN | n grease: 700 rpm | n oil: 2,200 rpm
81118 d: 90 mm | C: 104 kN | Co: 415 kN | n grease: 800 rpm | n oil: 2,400 rpm
81218 d: 90 mm | C: 190 kN | Co: 670 kN | n grease: 800 rpm | n oil: 2,400 rpm
89318 d: 90 mm | C: 330 kN | Co: 1,200 kN | n grease: 850 rpm | n oil: 2,400 rpm
87418 d: 90 mm | C: 510 kN | Co: 2,090 kN | n grease: 700 rpm | n oil: 2,100 rpm
89418 d: 90 mm | C: 680 kN | Co: 2,200 kN | n grease: 650 rpm | n oil: 2,100 rpm
81120 d: 100 mm | C: 146 kN | Co: 585 kN | n grease: 750 rpm | n oil: 2,200 rpm
81220 d: 100 mm | C: 224 kN | Co: 815 kN | n grease: 700 rpm | n oil: 2,000 rpm
89320 d: 100 mm | C: 380 kN | Co: 1,400 kN | n grease: 750 rpm | n oil: 2,100 rpm
87420 d: 100 mm | C: 680 kN | Co: 2,800 kN | n grease: 550 rpm | n oil: 1,900 rpm
89420 d: 100 mm | C: 850 kN | Co: 2,850 kN | n grease: 550 rpm | n oil: 1,900 rpm
81122 d: 110 mm | C: 160 kN | Co: 655 kN | n grease: 700 rpm | n oil: 2,000 rpm
81222 d: 110 mm | C: 232 kN | Co: 865 kN | n grease: 670 rpm | n oil: 1,900 rpm
89322 d: 110 mm | C: 500 kN | Co: 1,870 kN | n grease: 650 rpm | n oil: 1,900 rpm
87422 d: 110 mm | C: 810 kN | Co: 3,350 kN | n grease: 490 rpm | n oil: 1,700 rpm
89422 d: 110 mm | C: 1,000 kN | Co: 3,400 kN | n grease: 480 rpm | n oil: 1,700 rpm
81124 d: 120 mm | C: 160 kN | Co: 680 kN | n grease: 670 rpm | n oil: 1,900 rpm
81224 d: 120 mm | C: 245 kN | Co: 950 kN | n grease: 630 rpm | n oil: 1,800 rpm
89324 d: 120 mm | C: 640 kN | Co: 2,420 kN | n grease: 550 rpm | n oil: 1,700 rpm
87424 d: 120 mm | C: 960 kN | Co: 4,100 kN | n grease: 420 rpm | n oil: 1,600 rpm
89424 d: 120 mm | C: 1,160 kN | Co: 4,000 kN | n grease: 430 rpm | n oil: 1,600 rpm
81126 d: 130 mm | C: 183 kN | Co: 780 kN | n grease: 600 rpm | n oil: 1,700 rpm
81226 d: 130 mm | C: 365 kN | Co: 1,400 kN | n grease: 560 rpm | n oil: 1,600 rpm
89326 d: 130 mm | C: 710 kN | Co: 2,700 kN | n grease: 490 rpm | n oil: 1,600 rpm
87426 d: 130 mm | C: 1,050 kN | Co: 4,550 kN | n grease: 400 rpm | n oil: 1,400 rpm
89426 d: 130 mm | C: 1,330 kN | Co: 4,600 kN | n grease: 400 rpm | n oil: 1,400 rpm
81128 d: 140 mm | C: 196 kN | Co: 865 kN | n grease: 560 rpm | n oil: 1,600 rpm
81228 d: 140 mm | C: 375 kN | Co: 1,460 kN | n grease: 530 rpm | n oil: 1,500 rpm
89328 d: 140 mm | C: 820 kN | Co: 3,200 kN | n grease: 430 rpm | n oil: 1,500 rpm
87428 d: 140 mm | C: 1,110 kN | Co: 4,950 kN | n grease: 370 rpm | n oil: 1,400 rpm
89428 d: 140 mm | C: 1,380 kN | Co: 4,950 kN | n grease: 370 rpm | n oil: 1,400 rpm
81130 d: 150 mm | C: 204 kN | Co: 930 kN | n grease: 530 rpm | n oil: 1,500 rpm
81230 d: 150 mm | C: 455 kN | Co: 1,800 kN | n grease: 500 rpm | n oil: 1,400 rpm
89330 d: 150 mm | C: 840 kN | Co: 3,350 kN | n grease: 410 rpm | n oil: 1,400 rpm
87430 d: 150 mm | C: 1,260 kN | Co: 5,500 kN | n grease: 350 rpm | n oil: 1,300 rpm
89430 d: 150 mm | C: 1,570 kN | Co: 5,700 kN | n grease: 340 rpm | n oil: 1,300 rpm
81132 d: 160 mm | C: 212 kN | Co: 980 kN | n grease: 500 rpm | n oil: 1,400 rpm
81232 d: 160 mm | C: 465 kN | Co: 1,900 kN | n grease: 500 rpm | n oil: 1,400 rpm
89332 d: 160 mm | C: 970 kN | Co: 3,900 kN | n grease: 380 rpm | n oil: 1,300 rpm
87432 d: 160 mm | C: 1,450 kN | Co: 6,600 kN | n grease: 310 rpm | n oil: 1,200 rpm
89432 d: 160 mm | C: 1,780 kN | Co: 6,500 kN | n grease: 310 rpm | n oil: 1,200 rpm
81134 d: 170 mm | C: 265 kN | Co: 1,220 kN | n grease: 500 rpm | n oil: 1,400 rpm
81234 d: 170 mm | C: 510 kN | Co: 2,080 kN | n grease: 480 rpm | n oil: 1,300 rpm
89334 d: 170 mm | C: 1,000 kN | Co: 4,050 kN | n grease: 360 rpm | n oil: 1,300 rpm
87434 d: 170 mm | C: 1,620 kN | Co: 7,300 kN | n grease: 290 rpm | n oil: 1,100 rpm
89434 d: 170 mm | C: 1,990 kN | Co: 7,400 kN | n grease: 280 rpm | n oil: 1,100 rpm
81136 d: 180 mm | C: 275 kN | Co: 1,290 kN | n grease: 480 rpm | n oil: 1,300 rpm
81236 d: 180 mm | C: 520 kN | Co: 2,160 kN | n grease: 450 rpm | n oil: 1,200 rpm
89336 d: 180 mm | C: 1,260 kN | Co: 5,100 kN | n grease: 310 rpm | n oil: 1,200 rpm
87436 d: 180 mm | C: 1,860 kN | Co: 8,600 kN | n grease: 260 rpm | n oil: 1,100 rpm
89436 d: 180 mm | C: 2,210 kN | Co: 8,200 kN | n grease: 270 rpm | n oil: 1,100 rpm
81138 d: 190 mm | C: 315 kN | Co: 1,500 kN | n grease: 450 rpm | n oil: 1,200 rpm
81238 d: 190 mm | C: 655 kN | Co: 2,650 kN | n grease: 430 rpm | n oil: 1,100 rpm
89338 d: 190 mm | C: 1,420 kN | Co: 5,700 kN | n grease: 290 rpm | n oil: 1,100 rpm
87438 d: 190 mm | C: 1,990 kN | Co: 9,300 kN | n grease: 250 rpm | n oil: 1,000 rpm
89438 d: 190 mm | C: 2,450 kN | Co: 9,200 kN | n grease: 250 rpm | n oil: 1,000 rpm
81140 d: 200 mm | C: 325 kN | Co: 1,600 kN | n grease: 450 rpm | n oil: 1,200 rpm
81240 d: 200 mm | C: 695 kN | Co: 2,900 kN | n grease: 430 rpm | n oil: 1,100 rpm
89340 d: 200 mm | C: 1,630 kN | Co: 6,600 kN | n grease: 270 rpm | n oil: 1,100 rpm
87440 d: 200 mm | C: 2,290 kN | Co: 10,700 kN | n grease: 220 rpm | n oil: 950 rpm
89440 d: 200 mm | C: 2,700 kN | Co: 10,200 kN | n grease: 230 rpm | n oil: 950 rpm
81144 d: 220 mm | C: 355 kN | Co: 1,830 kN | n grease: 430 rpm | n oil: 1,100 rpm
81244 d: 220 mm | C: 710 kN | Co: 3,050 kN | n grease: 400 rpm | n oil: 1,000 rpm
89444 d: 220 mm | C: 2,900 kN | Co: 11,500 kN | n grease: 210 rpm | n oil: 900 rpm
81148 d: 240 mm | C: 465 kN | Co: 2,360 kN | n grease: 380 rpm | n oil: 950 rpm
81248 d: 240 mm | C: 980 kN | Co: 4,250 kN | n grease: 360 rpm | n oil: 900 rpm
89448 d: 240 mm | C: 3,000 kN | Co: 12,200 kN | n grease: 190 rpm | n oil: 850 rpm
81152 d: 260 mm | C: 500 kN | Co: 2,650 kN | n grease: 360 rpm | n oil: 900 rpm
81252 d: 260 mm | C: 1,040 kN | Co: 4,650 kN | n grease: 340 rpm | n oil: 850 rpm
89452 d: 260 mm | C: 3,550 kN | Co: 14,600 kN | n grease: 170 rpm | n oil: 800 rpm
81156 d: 280 mm | C: 670 kN | Co: 3,450 kN | n grease: 340 rpm | n oil: 850 rpm
81256 d: 280 mm | C: 1,060 kN | Co: 4,900 kN | n grease: 320 rpm | n oil: 800 rpm
89456 d: 280 mm | C: 4,200 kN | Co: 17,400 kN | n grease: 160 rpm | n oil: 700 rpm
81160 d: 300 mm | C: 800 kN | Co: 4,000 kN | n grease: 300 rpm | n oil: 750 rpm
81260 d: 300 mm | C: 1,400 kN | Co: 6,200 kN | n grease: 280 rpm | n oil: 700 rpm
89460 d: 300 mm | C: 4,300 kN | Co: 18,400 kN | n grease: 150 rpm | n oil: 700 rpm
81164 d: 320 mm | C: 865 kN | Co: 4,500 kN | n grease: 280 rpm | n oil: 700 rpm
81264 d: 320 mm | C: 1,430 kN | Co: 6,550 kN | n grease: 260 rpm | n oil: 670 rpm
81168 d: 340 mm | C: 850 kN | Co: 4,500 kN | n grease: 260 rpm | n oil: 670 rpm
81268 d: 340 mm | C: 1,500 kN | Co: 7,100 kN | n grease: 240 rpm | n oil: 630 rpm
81172 d: 360 mm | C: 900 kN | Co: 4,900 kN | n grease: 240 rpm | n oil: 630 rpm
81272 d: 360 mm | C: 1,960 kN | Co: 9,150 kN | n grease: 220 rpm | n oil: 600 rpm
81176 d: 380 mm | C: 880 kN | Co: 4,900 kN | n grease: 240 rpm | n oil: 630 rpm
81276 d: 380 mm | C: 2,000 kN | Co: 9,500 kN | n grease: 200 rpm | n oil: 560 rpm
81180 d: 400 mm | C: 915 kN | Co: 5,100 kN | n grease: 220 rpm | n oil: 600 rpm
81280 d: 400 mm | C: 2,080 kN | Co: 10,000 kN | n grease: 200 rpm | n oil: 560 rpm
81184 d: 420 mm | C: 930 kN | Co: 5,400 kN | n grease: 200 rpm | n oil: 560 rpm
81284 d: 420 mm | C: 2,600 kN | Co: 12,200 kN | n grease: 190 rpm | n oil: 530 rpm
81188 d: 440 mm | C: 1,340 kN | Co: 7,350 kN | n grease: 190 rpm | n oil: 530 rpm
81288 d: 440 mm | C: 2,650 kN | Co: 12,900 kN | n grease: 180 rpm | n oil: 500 rpm
81192 d: 460 mm | C: 1,370 kN | Co: 7,800 kN | n grease: 180 rpm | n oil: 500 rpm
81292 d: 460 mm | C: 2,700 kN | Co: 13,400 kN | n grease: 170 rpm | n oil: 480 rpm
81196 d: 480 mm | C: 1,400 kN | Co: 8,000 kN | n grease: 180 rpm | n oil: 500 rpm
81296 d: 480 mm | C: 3,050 kN | Co: 15,000 kN | n grease: 160 rpm | n oil: 450 rpm
811/500 d: 500 mm | C: 1,430 kN | Co: 8,500 kN | n grease: 170 rpm | n oil: 480 rpm
812/500 d: 500 mm | C: 3,100 kN | Co: 15,600 kN | n grease: 160 rpm | n oil: 450 rpm
811/530 d: 530 mm | C: 1,630 kN | Co: 9,500 kN | n grease: 160 rpm | n oil: 450 rpm
812/530 d: 530 mm | C: 3,550 kN | Co: 18,000 kN | n grease: 150 rpm | n oil: 430 rpm
811/560 d: 560 mm | C: 1,660 kN | Co: 10,000 kN | n grease: 150 rpm | n oil: 430 rpm
812/560 d: 560 mm | C: 3,600 kN | Co: 18,600 kN | n grease: 140 rpm | n oil: 400 rpm
811/600 d: 600 mm | C: 1,700 kN | Co: 10,600 kN | n grease: 140 rpm | n oil: 400 rpm
812/600 d: 600 mm | C: 4,050 kN | Co: 21,200 kN | n grease: 130 rpm | n oil: 380 rpm
Thrust BearingsWBC
157 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WBC 811/812/893/874/894 Cylindrical Roller Thrust Bearings

Brand WBC·Thrust Bearings

Available part numbers (157)

81102, 81103, 81104, 81105, 81106, 81206, 89306, 81107, 81207, 89307 + 147 more — see full table ↓

How to order

Send the WBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
81102d: 15 mm | C: 10.4 kN | Co: 24.5 kN | n grease: 4,500 rpm | n oil: 12,000 rpm
81103d: 17 mm | C: 10.8 kN | Co: 27 kN | n grease: 4,300 rpm | n oil: 11,000 rpm
81104d: 20 mm | C: 20.4 kN | Co: 54 kN | n grease: 3,800 rpm | n oil: 9,500 rpm
81105d: 25 mm | C: 26.5 kN | Co: 73.5 kN | n grease: 3,200 rpm | n oil: 8,000 rpm
81106d: 30 mm | C: 28 kN | Co: 83 kN | n grease: 2,600 rpm | n oil: 6,700 rpm
81206d: 30 mm | C: 46.5 kN | Co: 122 kN | n grease: 2,400 rpm | n oil: 6,300 rpm
89306d: 30 mm | C: 69 kN | Co: 197 kN | n grease: 2,700 rpm | n oil: 6,500 rpm
81107d: 35 mm | C: 26 kN | Co: 78 kN | n grease: 2,200 rpm | n oil: 6,000 rpm
81207d: 35 mm | C: 51 kN | Co: 143 kN | n grease: 1,900 rpm | n oil: 5,300 rpm
89307d: 35 mm | C: 80 kN | Co: 237 kN | n grease: 2,300 rpm | n oil: 5,500 rpm
81108d: 40 mm | C: 38 kN | Co: 116 kN | n grease: 1,900 rpm | n oil: 5,300 rpm
81208d: 40 mm | C: 76.5 kN | Co: 220 kN | n grease: 1,700 rpm | n oil: 4,800 rpm
89308d: 40 mm | C: 122 kN | Co: 385 kN | n grease: 1,500 rpm | n oil: 4,900 rpm
87408d: 40 mm | C: 135 kN | Co: 480 kN | n grease: 1,600 rpm | n oil: 4,400 rpm
81109d: 45 mm | C: 45 kN | Co: 153 kN | n grease: 1,700 rpm | n oil: 4,800 rpm
81209d: 45 mm | C: 83 kN | Co: 255 kN | n grease: 1,600 rpm | n oil: 4,500 rpm
89309d: 45 mm | C: 139 kN | Co: 445 kN | n grease: 1,400 rpm | n oil: 4,400 rpm
87409d: 45 mm | C: 154 kN | Co: 560 kN | n grease: 1,500 rpm | n oil: 4,000 rpm
81110d: 50 mm | C: 42.5 kN | Co: 143 kN | n grease: 1,500 rpm | n oil: 4,300 rpm
81210d: 50 mm | C: 88 kN | Co: 285 kN | n grease: 1,400 rpm | n oil: 4,000 rpm
89310d: 50 mm | C: 167 kN | Co: 560 kN | n grease: 1,300 rpm | n oil: 4,000 rpm
87410d: 50 mm | C: 200 kN | Co: 740 kN | n grease: 1,300 rpm | n oil: 3,600 rpm
81111d: 55 mm | C: 52 kN | Co: 193 kN | n grease: 1,400 rpm | n oil: 4,000 rpm
81211d: 55 mm | C: 106 kN | Co: 340 kN | n grease: 1,200 rpm | n oil: 3,600 rpm
89311d: 55 mm | C: 184 kN | Co: 600 kN | n grease: 1,300 rpm | n oil: 3,600 rpm
87411d: 55 mm | C: 222 kN | Co: 870 kN | n grease: 1,200 rpm | n oil: 3,300 rpm
81112d: 60 mm | C: 67 kN | Co: 232 kN | n grease: 1,200 rpm | n oil: 3,600 rpm
81212d: 60 mm | C: 114 kN | Co: 365 kN | n grease: 1,100 rpm | n oil: 3,400 rpm
89312d: 60 mm | C: 196 kN | Co: 670 kN | n grease: 1,200 rpm | n oil: 3,400 rpm
87412d: 60 mm | C: 260 kN | Co: 1,000 kN | n grease: 1,100 rpm | n oil: 3,000 rpm
89412d: 60 mm | C: 390 kN | Co: 1,220 kN | n grease: 900 rpm | n oil: 3,000 rpm
81113d: 65 mm | C: 68 kN | Co: 245 kN | n grease: 1,100 rpm | n oil: 3,400 rpm
81213d: 65 mm | C: 118 kN | Co: 390 kN | n grease: 1,000 rpm | n oil: 3,200 rpm
89313d: 65 mm | C: 194 kN | Co: 670 kN | n grease: 1,200 rpm | n oil: 2,200 rpm
87413d: 65 mm | C: 300 kN | Co: 1,140 kN | n grease: 1,000 rpm | n oil: 2,800 rpm
89413d: 65 mm | C: 445 kN | Co: 1,410 kN | n grease: 850 rpm | n oil: 2,800 rpm
81114d: 70 mm | C: 71 kN | Co: 265 kN | n grease: 1,000 rpm | n oil: 3,200 rpm
81214d: 70 mm | C: 122 kN | Co: 415 kN | n grease: 950 rpm | n oil: 3,000 rpm
89314d: 70 mm | C: 239 kN | Co: 830 kN | n grease: 1,000 rpm | n oil: 3,000 rpm
87414d: 70 mm | C: 360 kN | Co: 1,380 kN | n grease: 900 rpm | n oil: 2,600 rpm
89414d: 70 mm | C: 450 kN | Co: 1,390 kN | n grease: 900 rpm | n oil: 2,600 rpm
81115d: 75 mm | C: 75 kN | Co: 285 kN | n grease: 950 rpm | n oil: 3,000 rpm
81215d: 75 mm | C: 125 kN | Co: 440 kN | n grease: 900 rpm | n oil: 2,800 rpm
89315d: 75 mm | C: 285 kN | Co: 1,010 kN | n grease: 1,000 rpm | n oil: 2,700 rpm
87415d: 75 mm | C: 430 kN | Co: 1,660 kN | n grease: 800 rpm | n oil: 2,500 rpm
89415d: 75 mm | C: 500 kN | Co: 1,580 kN | n grease: 800 rpm | n oil: 2,500 rpm
81116d: 80 mm | C: 76.5 kN | Co: 300 kN | n grease: 900 rpm | n oil: 2,800 rpm
81216d: 80 mm | C: 129 kN | Co: 455 kN | n grease: 850 rpm | n oil: 2,600 rpm
89316d: 80 mm | C: 305 kN | Co: 1,110 kN | n grease: 950 rpm | n oil: 2,600 rpm
87416d: 80 mm | C: 450 kN | Co: 1,810 kN | n grease: 750 rpm | n oil: 2,300 rpm
89416d: 80 mm | C: 560 kN | Co: 1,770 kN | n grease: 750 rpm | n oil: 2,300 rpm
81117d: 85 mm | C: 76.5 kN | Co: 310 kN | n grease: 850 rpm | n oil: 2,600 rpm
81217d: 85 mm | C: 153 kN | Co: 550 kN | n grease: 800 rpm | n oil: 2,400 rpm
89317d: 85 mm | C: 325 kN | Co: 1,140 kN | n grease: 900 rpm | n oil: 2,500 rpm
87417d: 85 mm | C: 485 kN | Co: 1,920 kN | n grease: 700 rpm | n oil: 2,200 rpm
89417d: 85 mm | C: 620 kN | Co: 1,980 kN | n grease: 700 rpm | n oil: 2,200 rpm
81118d: 90 mm | C: 104 kN | Co: 415 kN | n grease: 800 rpm | n oil: 2,400 rpm
81218d: 90 mm | C: 190 kN | Co: 670 kN | n grease: 800 rpm | n oil: 2,400 rpm
89318d: 90 mm | C: 330 kN | Co: 1,200 kN | n grease: 850 rpm | n oil: 2,400 rpm
87418d: 90 mm | C: 510 kN | Co: 2,090 kN | n grease: 700 rpm | n oil: 2,100 rpm
89418d: 90 mm | C: 680 kN | Co: 2,200 kN | n grease: 650 rpm | n oil: 2,100 rpm
81120d: 100 mm | C: 146 kN | Co: 585 kN | n grease: 750 rpm | n oil: 2,200 rpm
81220d: 100 mm | C: 224 kN | Co: 815 kN | n grease: 700 rpm | n oil: 2,000 rpm
89320d: 100 mm | C: 380 kN | Co: 1,400 kN | n grease: 750 rpm | n oil: 2,100 rpm
87420d: 100 mm | C: 680 kN | Co: 2,800 kN | n grease: 550 rpm | n oil: 1,900 rpm
89420d: 100 mm | C: 850 kN | Co: 2,850 kN | n grease: 550 rpm | n oil: 1,900 rpm
81122d: 110 mm | C: 160 kN | Co: 655 kN | n grease: 700 rpm | n oil: 2,000 rpm
81222d: 110 mm | C: 232 kN | Co: 865 kN | n grease: 670 rpm | n oil: 1,900 rpm
89322d: 110 mm | C: 500 kN | Co: 1,870 kN | n grease: 650 rpm | n oil: 1,900 rpm
87422d: 110 mm | C: 810 kN | Co: 3,350 kN | n grease: 490 rpm | n oil: 1,700 rpm
89422d: 110 mm | C: 1,000 kN | Co: 3,400 kN | n grease: 480 rpm | n oil: 1,700 rpm
81124d: 120 mm | C: 160 kN | Co: 680 kN | n grease: 670 rpm | n oil: 1,900 rpm
81224d: 120 mm | C: 245 kN | Co: 950 kN | n grease: 630 rpm | n oil: 1,800 rpm
89324d: 120 mm | C: 640 kN | Co: 2,420 kN | n grease: 550 rpm | n oil: 1,700 rpm
87424d: 120 mm | C: 960 kN | Co: 4,100 kN | n grease: 420 rpm | n oil: 1,600 rpm
89424d: 120 mm | C: 1,160 kN | Co: 4,000 kN | n grease: 430 rpm | n oil: 1,600 rpm
81126d: 130 mm | C: 183 kN | Co: 780 kN | n grease: 600 rpm | n oil: 1,700 rpm
81226d: 130 mm | C: 365 kN | Co: 1,400 kN | n grease: 560 rpm | n oil: 1,600 rpm
89326d: 130 mm | C: 710 kN | Co: 2,700 kN | n grease: 490 rpm | n oil: 1,600 rpm
87426d: 130 mm | C: 1,050 kN | Co: 4,550 kN | n grease: 400 rpm | n oil: 1,400 rpm
89426d: 130 mm | C: 1,330 kN | Co: 4,600 kN | n grease: 400 rpm | n oil: 1,400 rpm
81128d: 140 mm | C: 196 kN | Co: 865 kN | n grease: 560 rpm | n oil: 1,600 rpm
81228d: 140 mm | C: 375 kN | Co: 1,460 kN | n grease: 530 rpm | n oil: 1,500 rpm
89328d: 140 mm | C: 820 kN | Co: 3,200 kN | n grease: 430 rpm | n oil: 1,500 rpm
87428d: 140 mm | C: 1,110 kN | Co: 4,950 kN | n grease: 370 rpm | n oil: 1,400 rpm
89428d: 140 mm | C: 1,380 kN | Co: 4,950 kN | n grease: 370 rpm | n oil: 1,400 rpm
81130d: 150 mm | C: 204 kN | Co: 930 kN | n grease: 530 rpm | n oil: 1,500 rpm
81230d: 150 mm | C: 455 kN | Co: 1,800 kN | n grease: 500 rpm | n oil: 1,400 rpm
89330d: 150 mm | C: 840 kN | Co: 3,350 kN | n grease: 410 rpm | n oil: 1,400 rpm
87430d: 150 mm | C: 1,260 kN | Co: 5,500 kN | n grease: 350 rpm | n oil: 1,300 rpm
89430d: 150 mm | C: 1,570 kN | Co: 5,700 kN | n grease: 340 rpm | n oil: 1,300 rpm
81132d: 160 mm | C: 212 kN | Co: 980 kN | n grease: 500 rpm | n oil: 1,400 rpm
81232d: 160 mm | C: 465 kN | Co: 1,900 kN | n grease: 500 rpm | n oil: 1,400 rpm
89332d: 160 mm | C: 970 kN | Co: 3,900 kN | n grease: 380 rpm | n oil: 1,300 rpm
87432d: 160 mm | C: 1,450 kN | Co: 6,600 kN | n grease: 310 rpm | n oil: 1,200 rpm
89432d: 160 mm | C: 1,780 kN | Co: 6,500 kN | n grease: 310 rpm | n oil: 1,200 rpm
81134d: 170 mm | C: 265 kN | Co: 1,220 kN | n grease: 500 rpm | n oil: 1,400 rpm
81234d: 170 mm | C: 510 kN | Co: 2,080 kN | n grease: 480 rpm | n oil: 1,300 rpm
89334d: 170 mm | C: 1,000 kN | Co: 4,050 kN | n grease: 360 rpm | n oil: 1,300 rpm
87434d: 170 mm | C: 1,620 kN | Co: 7,300 kN | n grease: 290 rpm | n oil: 1,100 rpm
89434d: 170 mm | C: 1,990 kN | Co: 7,400 kN | n grease: 280 rpm | n oil: 1,100 rpm
81136d: 180 mm | C: 275 kN | Co: 1,290 kN | n grease: 480 rpm | n oil: 1,300 rpm
81236d: 180 mm | C: 520 kN | Co: 2,160 kN | n grease: 450 rpm | n oil: 1,200 rpm
89336d: 180 mm | C: 1,260 kN | Co: 5,100 kN | n grease: 310 rpm | n oil: 1,200 rpm
87436d: 180 mm | C: 1,860 kN | Co: 8,600 kN | n grease: 260 rpm | n oil: 1,100 rpm
89436d: 180 mm | C: 2,210 kN | Co: 8,200 kN | n grease: 270 rpm | n oil: 1,100 rpm
81138d: 190 mm | C: 315 kN | Co: 1,500 kN | n grease: 450 rpm | n oil: 1,200 rpm
81238d: 190 mm | C: 655 kN | Co: 2,650 kN | n grease: 430 rpm | n oil: 1,100 rpm
89338d: 190 mm | C: 1,420 kN | Co: 5,700 kN | n grease: 290 rpm | n oil: 1,100 rpm
87438d: 190 mm | C: 1,990 kN | Co: 9,300 kN | n grease: 250 rpm | n oil: 1,000 rpm
89438d: 190 mm | C: 2,450 kN | Co: 9,200 kN | n grease: 250 rpm | n oil: 1,000 rpm
81140d: 200 mm | C: 325 kN | Co: 1,600 kN | n grease: 450 rpm | n oil: 1,200 rpm
81240d: 200 mm | C: 695 kN | Co: 2,900 kN | n grease: 430 rpm | n oil: 1,100 rpm
89340d: 200 mm | C: 1,630 kN | Co: 6,600 kN | n grease: 270 rpm | n oil: 1,100 rpm
87440d: 200 mm | C: 2,290 kN | Co: 10,700 kN | n grease: 220 rpm | n oil: 950 rpm
89440d: 200 mm | C: 2,700 kN | Co: 10,200 kN | n grease: 230 rpm | n oil: 950 rpm
81144d: 220 mm | C: 355 kN | Co: 1,830 kN | n grease: 430 rpm | n oil: 1,100 rpm
81244d: 220 mm | C: 710 kN | Co: 3,050 kN | n grease: 400 rpm | n oil: 1,000 rpm
89444d: 220 mm | C: 2,900 kN | Co: 11,500 kN | n grease: 210 rpm | n oil: 900 rpm
81148d: 240 mm | C: 465 kN | Co: 2,360 kN | n grease: 380 rpm | n oil: 950 rpm
81248d: 240 mm | C: 980 kN | Co: 4,250 kN | n grease: 360 rpm | n oil: 900 rpm
89448d: 240 mm | C: 3,000 kN | Co: 12,200 kN | n grease: 190 rpm | n oil: 850 rpm
81152d: 260 mm | C: 500 kN | Co: 2,650 kN | n grease: 360 rpm | n oil: 900 rpm
81252d: 260 mm | C: 1,040 kN | Co: 4,650 kN | n grease: 340 rpm | n oil: 850 rpm
89452d: 260 mm | C: 3,550 kN | Co: 14,600 kN | n grease: 170 rpm | n oil: 800 rpm
81156d: 280 mm | C: 670 kN | Co: 3,450 kN | n grease: 340 rpm | n oil: 850 rpm
81256d: 280 mm | C: 1,060 kN | Co: 4,900 kN | n grease: 320 rpm | n oil: 800 rpm
89456d: 280 mm | C: 4,200 kN | Co: 17,400 kN | n grease: 160 rpm | n oil: 700 rpm
81160d: 300 mm | C: 800 kN | Co: 4,000 kN | n grease: 300 rpm | n oil: 750 rpm
81260d: 300 mm | C: 1,400 kN | Co: 6,200 kN | n grease: 280 rpm | n oil: 700 rpm
89460d: 300 mm | C: 4,300 kN | Co: 18,400 kN | n grease: 150 rpm | n oil: 700 rpm
81164d: 320 mm | C: 865 kN | Co: 4,500 kN | n grease: 280 rpm | n oil: 700 rpm
81264d: 320 mm | C: 1,430 kN | Co: 6,550 kN | n grease: 260 rpm | n oil: 670 rpm
81168d: 340 mm | C: 850 kN | Co: 4,500 kN | n grease: 260 rpm | n oil: 670 rpm
81268d: 340 mm | C: 1,500 kN | Co: 7,100 kN | n grease: 240 rpm | n oil: 630 rpm
81172d: 360 mm | C: 900 kN | Co: 4,900 kN | n grease: 240 rpm | n oil: 630 rpm
81272d: 360 mm | C: 1,960 kN | Co: 9,150 kN | n grease: 220 rpm | n oil: 600 rpm
81176d: 380 mm | C: 880 kN | Co: 4,900 kN | n grease: 240 rpm | n oil: 630 rpm
81276d: 380 mm | C: 2,000 kN | Co: 9,500 kN | n grease: 200 rpm | n oil: 560 rpm
81180d: 400 mm | C: 915 kN | Co: 5,100 kN | n grease: 220 rpm | n oil: 600 rpm
81280d: 400 mm | C: 2,080 kN | Co: 10,000 kN | n grease: 200 rpm | n oil: 560 rpm
81184d: 420 mm | C: 930 kN | Co: 5,400 kN | n grease: 200 rpm | n oil: 560 rpm
81284d: 420 mm | C: 2,600 kN | Co: 12,200 kN | n grease: 190 rpm | n oil: 530 rpm
81188d: 440 mm | C: 1,340 kN | Co: 7,350 kN | n grease: 190 rpm | n oil: 530 rpm
81288d: 440 mm | C: 2,650 kN | Co: 12,900 kN | n grease: 180 rpm | n oil: 500 rpm
81192d: 460 mm | C: 1,370 kN | Co: 7,800 kN | n grease: 180 rpm | n oil: 500 rpm
81292d: 460 mm | C: 2,700 kN | Co: 13,400 kN | n grease: 170 rpm | n oil: 480 rpm
81196d: 480 mm | C: 1,400 kN | Co: 8,000 kN | n grease: 180 rpm | n oil: 500 rpm
81296d: 480 mm | C: 3,050 kN | Co: 15,000 kN | n grease: 160 rpm | n oil: 450 rpm
811/500d: 500 mm | C: 1,430 kN | Co: 8,500 kN | n grease: 170 rpm | n oil: 480 rpm
812/500d: 500 mm | C: 3,100 kN | Co: 15,600 kN | n grease: 160 rpm | n oil: 450 rpm
811/530d: 530 mm | C: 1,630 kN | Co: 9,500 kN | n grease: 160 rpm | n oil: 450 rpm
812/530d: 530 mm | C: 3,550 kN | Co: 18,000 kN | n grease: 150 rpm | n oil: 430 rpm
811/560d: 560 mm | C: 1,660 kN | Co: 10,000 kN | n grease: 150 rpm | n oil: 430 rpm
812/560d: 560 mm | C: 3,600 kN | Co: 18,600 kN | n grease: 140 rpm | n oil: 400 rpm
811/600d: 600 mm | C: 1,700 kN | Co: 10,600 kN | n grease: 140 rpm | n oil: 400 rpm
812/600d: 600 mm | C: 4,050 kN | Co: 21,200 kN | n grease: 130 rpm | n oil: 380 rpm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
