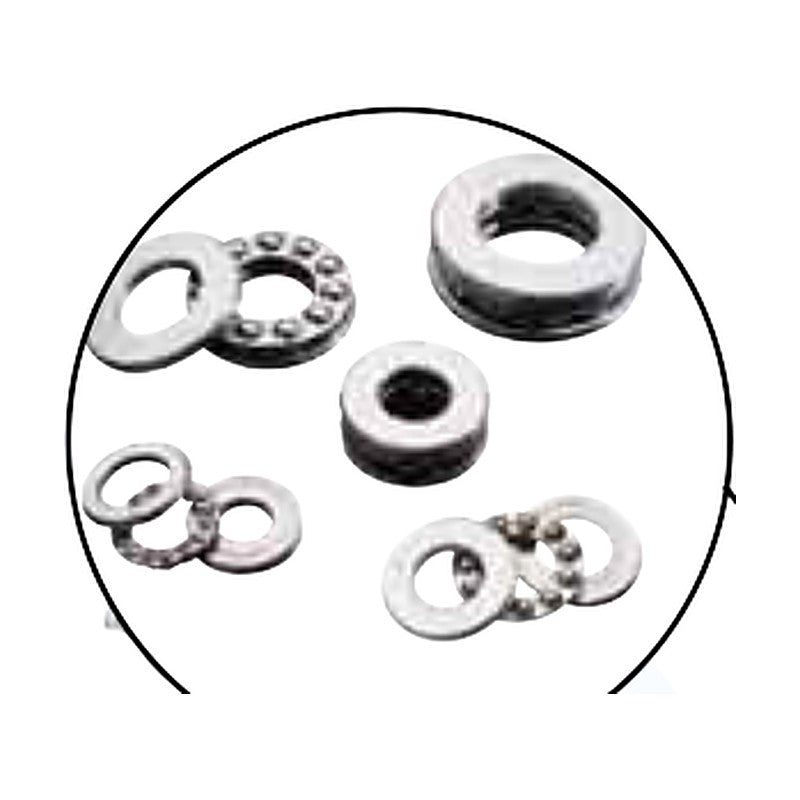

WBC 900 Series Thrust Ball Bearings (10-120 mm)

WBC 900 Series Thrust Ball Bearings (10-120 mm)

WBC 900 series single direction thrust ball bearings for axial loads in one direction.

Key features

  • Single direction thrust ball bearing
  • Shaft washer, housing washer and ball-and-cage assembly
  • Abutment dimensions dc/Dc listed for shaft and housing design
  • Load ratings in kgf
  • Made in Korea by Wonil Bearing Industry

Specifications

Brand WBC
Manufacturer Wonil Bearing Industry Co., Ltd.
Bearing type Thrust ball bearing
Load ratings kgf (as catalogued)
Units mm
Direction Single
Series 900
Source WBC (Wonil Bearing) Thrust Bearing General Catalogue, p. 23
900 d: 10 mm | D: 25 mm | H: 12 mm | C: 995 kgf | Co: 1,390 kgf
902 d: 15 mm | D: 35 mm | H: 14 mm | C: 1,510 kgf | Co: 2,300 kgf
904 d: 20 mm | D: 40 mm | H: 14 mm | C: 1,750 kgf | Co: 3,050 kgf
905 d: 25 mm | D: 48 mm | H: 15.5 mm | C: 2,150 kgf | Co: 4,100 kgf
906 d: 30 mm | D: 53 mm | H: 15.5 mm | C: 2,280 kgf | Co: 4,700 kgf
907 d: 35 mm | D: 62 mm | H: 18 mm | C: 3,050 kgf | Co: 6,350 kgf
908 d: 40 mm | D: 64 mm | H: 18 mm | C: 2,840 kgf | Co: 6,500 kgf
909 d: 45 mm | D: 73 mm | H: 22 mm | C: 3,900 kgf | Co: 9,050 kgf
910 d: 50 mm | D: 78 mm | H: 22 mm | C: 4,450 kgf | Co: 10,500 kgf
911 d: 55 mm | D: 88 mm | H: 24.5 mm | C: 5,450 kgf | Co: 12,900 kgf
912 d: 60 mm | D: 90 mm | H: 24.5 mm | C: 4,700 kgf | Co: 12,400 kgf
913 d: 65 mm | D: 100 mm | H: 27 mm | C: 5,500 kgf | Co: 15,300 kgf
914 d: 70 mm | D: 103 mm | H: 27 mm | C: 5,800 kgf | Co: 16,100 kgf
915 d: 75 mm | D: 110 mm | H: 27 mm | C: 6,050 kgf | Co: 16,900 kgf
916 d: 80 mm | D: 115 mm | H: 29 mm | C: 6,800 kgf | Co: 19,100 kgf
917 d: 85 mm | D: 125 mm | H: 30.5 mm | C: 8,700 kgf | Co: 23,900 kgf
918 d: 90 mm | D: 135 mm | H: 30.5 mm | C: 10,200 kgf | Co: 29,000 kgf
920 d: 100 mm | D: 150 mm | H: 32.5 mm | C: 12,100 kgf | Co: 34,500 kgf
922 d: 110 mm | D: 160 mm | H: 40 mm | C: 14,000 kgf | Co: 40,500 kgf
924 d: 120 mm | D: 170 mm | H: 43 mm | C: 14,200 kgf | Co: 42,500 kgf
Thrust BearingsWBC
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
