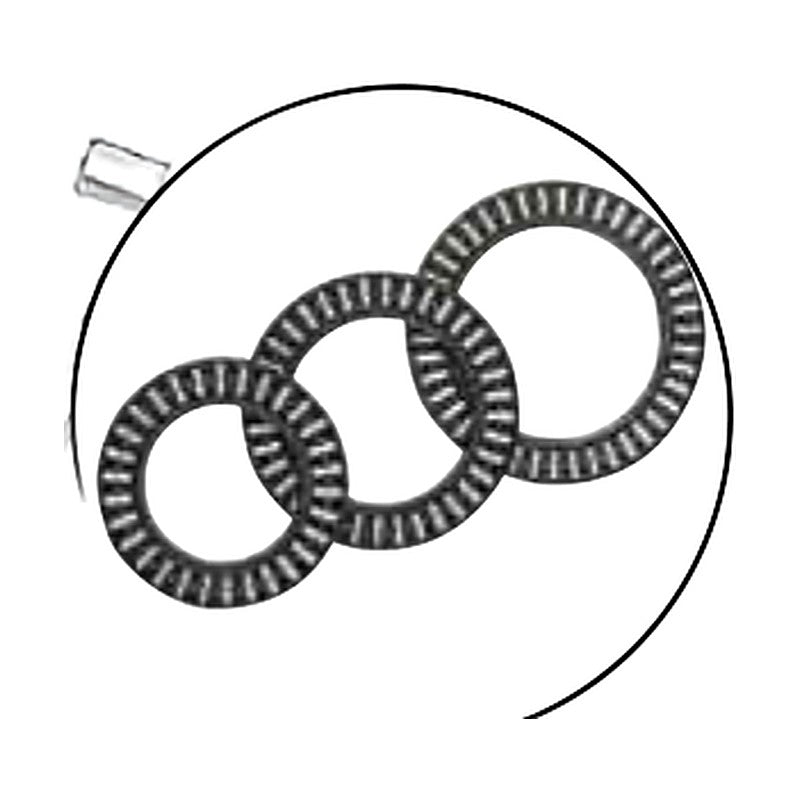

WBC AXK Thrust Needle Roller & Cage Assemblies, AS/LS/WS/GS Washers

WBC AXK Thrust Needle Roller & Cage Assemblies, AS/LS/WS/GS Washers

WBC AXK thrust needle roller and cage assemblies with matching AS thrust washers, LS track washers and WS/GS shaft and housing washers, shaft 10 to 160 mm.

Key features

  • Very small section height (2 to 5 mm needle diameter)
  • AXK can run directly on hardened, ground machine parts
  • AS thin washers, LS track washers, WS/GS ground washers
  • Shaft h8 (h6) and housing H10 (H7) recommended
  • Load ratings in kN, grease and oil speed limits

Specifications

Brand WBC
Manufacturer Wonil Bearing Industry Co., Ltd.
Bearing type Thrust needle roller
Load ratings kN (AXK)
Units mm
Source WBC (Wonil Bearing) Thrust Bearing General Catalogue, p. 54-59
AXK.1024 Shaft: 10 mm | Dw: 24 mm | Part: Needle roller & cage | C: 7.80 kN | Co: 23.60 kN
LS.1024 Shaft: 10 mm | Dw: 24 mm | Part: Track washer | C: - | Co: -
AS.1024 Shaft: 10 mm | Dw: 24 mm | Part: Thrust washer | C: - | Co: -
WS.81100 Shaft: 10 mm | Dw: 24 mm | Part: Shaft washer | C: - | Co: -
GS.81100 Shaft: 10 mm | Dw: 24 mm | Part: Housing washer | C: - | Co: -
AXK.1226 Shaft: 12 mm | Dw: 26 mm | Part: Needle roller & cage | C: 8.50 kN | Co: 27.00 kN
LS.1226 Shaft: 12 mm | Dw: 26 mm | Part: Track washer | C: - | Co: -
AS.1226 Shaft: 12 mm | Dw: 26 mm | Part: Thrust washer | C: - | Co: -
WS.81101 Shaft: 12 mm | Dw: 26 mm | Part: Shaft washer | C: - | Co: -
GS.81101 Shaft: 12 mm | Dw: 26 mm | Part: Housing washer | C: - | Co: -
AXK.1528 Shaft: 15 mm | Dw: 28 mm | Part: Needle roller & cage | C: 9.65 kN | Co: 33.50 kN
LS.1528 Shaft: 15 mm | Dw: 28 mm | Part: Track washer | C: - | Co: -
AS.1528 Shaft: 15 mm | Dw: 28 mm | Part: Thrust washer | C: - | Co: -
AXK.1730 Shaft: 17 mm | Dw: 30 mm | Part: Needle roller & cage | C: 10.20 kN | Co: 36.50 kN
LS.1730 Shaft: 17 mm | Dw: 30 mm | Part: Track washer | C: - | Co: -
AS.1730 Shaft: 17 mm | Dw: 30 mm | Part: Thrust washer | C: - | Co: -
AXK.2035 Shaft: 20 mm | Dw: 35 mm | Part: Needle roller & cage | C: 11.20 kN | Co: 43.00 kN
LS.2035 Shaft: 20 mm | Dw: 35 mm | Part: Track washer | C: - | Co: -
AS.2035 Shaft: 20 mm | Dw: 35 mm | Part: Thrust washer | C: - | Co: -
AXK.2542 Shaft: 25 mm | Dw: 42 mm | Part: Needle roller & cage | C: 12.50 kN | Co: 54.00 kN
LS.2542 Shaft: 25 mm | Dw: 42 mm | Part: Track washer | C: - | Co: -
AS.2542 Shaft: 25 mm | Dw: 42 mm | Part: Thrust washer | C: - | Co: -
AXK.3047 Shaft: 30 mm | Dw: 47 mm | Part: Needle roller & cage | C: 14.00 kN | Co: 65.50 kN
LS.3047 Shaft: 30 mm | Dw: 47 mm | Part: Track washer | C: - | Co: -
AS.3047 Shaft: 30 mm | Dw: 47 mm | Part: Thrust washer | C: - | Co: -
AXK.3552 Shaft: 35 mm | Dw: 52 mm | Part: Needle roller & cage | C: 15.30 kN | Co: 76.50 kN
LS.3552 Shaft: 35 mm | Dw: 52 mm | Part: Track washer | C: - | Co: -
AS.3552 Shaft: 35 mm | Dw: 52 mm | Part: Thrust washer | C: - | Co: -
AXK.4060 Shaft: 40 mm | Dw: 60 mm | Part: Needle roller & cage | C: 24.50 kN | Co: 110 kN
LS.4060 Shaft: 40 mm | Dw: 60 mm | Part: Track washer | C: - | Co: -
AS.4060 Shaft: 40 mm | Dw: 60 mm | Part: Thrust washer | C: - | Co: -
AXK.4565 Shaft: 45 mm | Dw: 65 mm | Part: Needle roller & cage | C: 26.50 kN | Co: 125 kN
LS.4565 Shaft: 45 mm | Dw: 65 mm | Part: Track washer | C: - | Co: -
AS.4565 Shaft: 45 mm | Dw: 65 mm | Part: Thrust washer | C: - | Co: -
AXK.5070 Shaft: 50 mm | Dw: 70 mm | Part: Needle roller & cage | C: 28.00 kN | Co: 137 kN
LS.5070 Shaft: 50 mm | Dw: 70 mm | Part: Track washer | C: - | Co: -
AS.5070 Shaft: 50 mm | Dw: 70 mm | Part: Thrust washer | C: - | Co: -
AXK.5578 Shaft: 55 mm | Dw: 78 mm | Part: Needle roller & cage | C: 36.00 kN | Co: 196 kN
LS.5578 Shaft: 55 mm | Dw: 78 mm | Part: Track washer | C: - | Co: -
AS.5578 Shaft: 55 mm | Dw: 78 mm | Part: Thrust washer | C: - | Co: -
AXK.6085 Shaft: 60 mm | Dw: 85 mm | Part: Needle roller & cage | C: 39.00 kN | Co: 240 kN
LS.6085 Shaft: 60 mm | Dw: 85 mm | Part: Track washer | C: - | Co: -
AS.6085 Shaft: 60 mm | Dw: 85 mm | Part: Thrust washer | C: - | Co: -
AXK.6590 Shaft: 65 mm | Dw: 90 mm | Part: Needle roller & cage | C: 40.50 kN | Co: 260 kN
LS.6590 Shaft: 65 mm | Dw: 90 mm | Part: Track washer | C: - | Co: -
AS.6590 Shaft: 65 mm | Dw: 90 mm | Part: Thrust washer | C: - | Co: -
AXK.7095 Shaft: 70 mm | Dw: 95 mm | Part: Needle roller & cage | C: 50.00 kN | Co: 260 kN
LS.7095 Shaft: 70 mm | Dw: 95 mm | Part: Track washer | C: - | Co: -
AS.7095 Shaft: 70 mm | Dw: 95 mm | Part: Thrust washer | C: - | Co: -
AXK.75100 Shaft: 75 mm | Dw: 100 mm | Part: Needle roller & cage | C: 51.00 kN | Co: 275 kN
LS.75100 Shaft: 75 mm | Dw: 100 mm | Part: Track washer | C: - | Co: -
AS.75100 Shaft: 75 mm | Dw: 100 mm | Part: Thrust washer | C: - | Co: -
AXK.80105 Shaft: 80 mm | Dw: 105 mm | Part: Needle roller & cage | C: 52.00 kN | Co: 285 kN
LS.80105 Shaft: 80 mm | Dw: 105 mm | Part: Track washer | C: - | Co: -
AS.80105 Shaft: 80 mm | Dw: 105 mm | Part: Thrust washer | C: - | Co: -
AXK.85110 Shaft: 85 mm | Dw: 110 mm | Part: Needle roller & cage | C: 54.00 kN | Co: 300 kN
LS.85110 Shaft: 85 mm | Dw: 110 mm | Part: Track washer | C: - | Co: -
AS.85110 Shaft: 85 mm | Dw: 110 mm | Part: Thrust washer | C: - | Co: -
AXK.90120 Shaft: 90 mm | Dw: 120 mm | Part: Needle roller & cage | C: 63.00 kN | Co: 415.00 kN
LS.90120 Shaft: 90 mm | Dw: 120 mm | Part: Track washer | C: - | Co: -
AS.90120 Shaft: 90 mm | Dw: 120 mm | Part: Thrust washer | C: - | Co: -
AXK.100135 Shaft: 100 mm | Dw: 135 mm | Part: Needle roller & cage | C: 78.00 kN | Co: 560.00 kN
LS.100135 Shaft: 100 mm | Dw: 135 mm | Part: Track washer | C: - | Co: -
AS.100135 Shaft: 100 mm | Dw: 135 mm | Part: Thrust washer | C: - | Co: -
AXK.110145 Shaft: 110 mm | Dw: 145 mm | Part: Needle roller & cage | C: 81,50 kN | Co: 600.00 kN
LS.110145 Shaft: 110 mm | Dw: 145 mm | Part: Track washer | C: - | Co: -
AS.110145 Shaft: 110 mm | Dw: 145 mm | Part: Thrust washer | C: - | Co: -
AXK.120155 Shaft: 120 mm | Dw: 155 mm | Part: Needle roller & cage | C: 85.00 kN | Co: 655.00 kN
LS.120155 Shaft: 120 mm | Dw: 155 mm | Part: Track washer | C: - | Co: -
AS.120155 Shaft: 120 mm | Dw: 155 mm | Part: Thrust washer | C: - | Co: -
AXK.130170 Shaft: 130 mm | Dw: 170 mm | Part: Needle roller & cage | C: 112.00 kN | Co: 830.00 kN
LS.130170 Shaft: 130 mm | Dw: 170 mm | Part: Track washer | C: - | Co: -
AS.130170 Shaft: 130 mm | Dw: 170 mm | Part: Thrust washer | C: - | Co: -
AXK.140180 Shaft: 140 mm | Dw: 178 mm | Part: Needle roller & cage | C: 116.00 kN | Co: 900.00 kN
LS.140180 Shaft: 140 mm | Dw: 178 mm | Part: Track washer | C: - | Co: -
AS.140180 Shaft: 140 mm | Dw: 178 mm | Part: Thrust washer | C: - | Co: -
AXK.150190 Shaft: 150 mm | Dw: 188 mm | Part: Needle roller & cage | C: 120.00 kN | Co: 950.00 kN
LS.150190 Shaft: 150 mm | Dw: 188 mm | Part: Track washer | C: - | Co: -
AS.150190 Shaft: 150 mm | Dw: 188 mm | Part: Thrust washer | C: - | Co: -
AXK.160200 Shaft: 160 mm | Dw: 198 mm | Part: Needle roller & cage | C: 125.00 kN | Co: 1,000.00 kN
LS.160200 Shaft: 160 mm | Dw: 198 mm | Part: Track washer | C: - | Co: -
AS.160200 Shaft: 160 mm | Dw: 198 mm | Part: Thrust washer | C: - | Co: -
