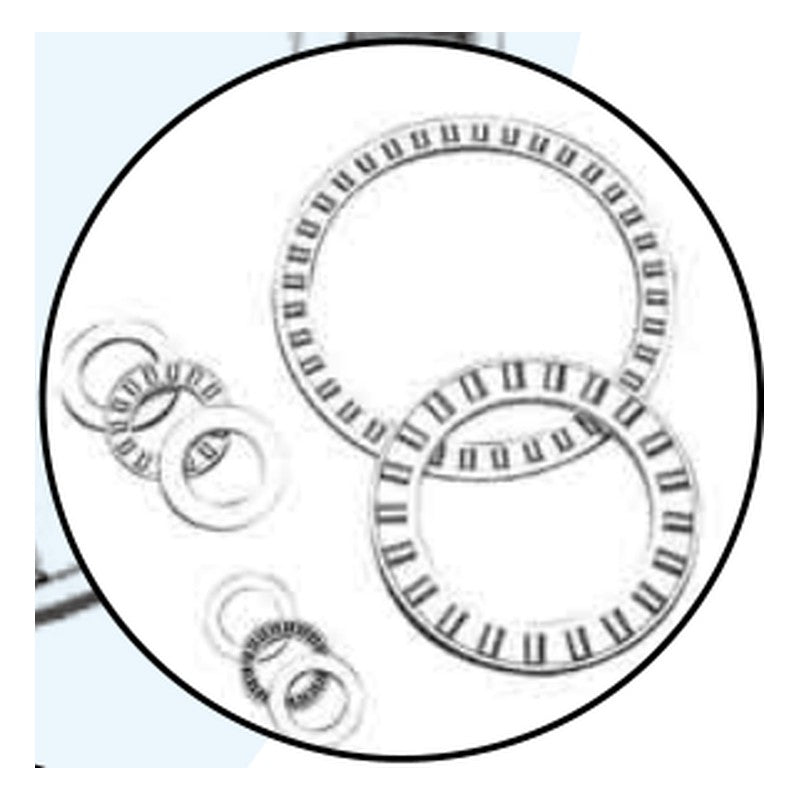

WBC K Thrust Cylindrical Roller & Cage Assemblies (811-894)

WBC K Thrust Cylindrical Roller & Cage Assemblies (811-894)

WBC K-series thrust cylindrical roller and cage assemblies for the 811, 812, 893, 874 and 894 bearing series, usable directly against hardened raceways.

Key features

  • Cylindrical rollers in a thrust cage (K.xxxxx)
  • Combine with WS, GS or LS washers or run on hardened machine parts
  • Very compact axial bearing arrangement
  • Load ratings as for the complete bearing

Specifications

Brand WBC
Manufacturer Wonil Bearing Industry Co., Ltd.
Bearing type Cylindrical roller thrust bearing
Series 811, 812, 893, 874, 894
Load ratings kN
Component Roller & cage assembly
Source WBC (Wonil Bearing) Thrust Bearing General Catalogue, p. 42-51
K.81102 Shaft: 15 mm | For bearing: 81102 | C: 10.4 kN | Co: 24.5 kN
K.81103 Shaft: 17 mm | For bearing: 81103 | C: 10.8 kN | Co: 27 kN
K.81104 Shaft: 20 mm | For bearing: 81104 | C: 20.4 kN | Co: 54 kN
K.81105 Shaft: 25 mm | For bearing: 81105 | C: 26.5 kN | Co: 73.5 kN
K.81106 Shaft: 30 mm | For bearing: 81106 | C: 28 kN | Co: 83 kN
K.81206 Shaft: 30 mm | For bearing: 81206 | C: 46.5 kN | Co: 122 kN
K.89306 Shaft: 30 mm | For bearing: 89306 | C: 69 kN | Co: 197 kN
K.81107 Shaft: 35 mm | For bearing: 81107 | C: 26 kN | Co: 78 kN
K.81207 Shaft: 35 mm | For bearing: 81207 | C: 51 kN | Co: 143 kN
K.89307 Shaft: 35 mm | For bearing: 89307 | C: 80 kN | Co: 237 kN
K.81108 Shaft: 40 mm | For bearing: 81108 | C: 38 kN | Co: 116 kN
K.81208 Shaft: 40 mm | For bearing: 81208 | C: 76.5 kN | Co: 220 kN
K.89308 Shaft: 40 mm | For bearing: 89308 | C: 122 kN | Co: 385 kN
K.87408 Shaft: 40 mm | For bearing: 87408 | C: 135 kN | Co: 480 kN
K.81109 Shaft: 45 mm | For bearing: 81109 | C: 45 kN | Co: 153 kN
K.81209 Shaft: 45 mm | For bearing: 81209 | C: 83 kN | Co: 255 kN
K.89309 Shaft: 45 mm | For bearing: 89309 | C: 139 kN | Co: 445 kN
K.87409 Shaft: 45 mm | For bearing: 87409 | C: 154 kN | Co: 560 kN
K.81110 Shaft: 50 mm | For bearing: 81110 | C: 42.5 kN | Co: 143 kN
K.81210 Shaft: 50 mm | For bearing: 81210 | C: 88 kN | Co: 285 kN
K.89310 Shaft: 50 mm | For bearing: 89310 | C: 167 kN | Co: 560 kN
K.87410 Shaft: 50 mm | For bearing: 87410 | C: 200 kN | Co: 740 kN
K.81111 Shaft: 55 mm | For bearing: 81111 | C: 52 kN | Co: 193 kN
K.81211 Shaft: 55 mm | For bearing: 81211 | C: 106 kN | Co: 340 kN
K.89311 Shaft: 55 mm | For bearing: 89311 | C: 184 kN | Co: 600 kN
K.87411 Shaft: 55 mm | For bearing: 87411 | C: 222 kN | Co: 870 kN
K.81112 Shaft: 60 mm | For bearing: 81112 | C: 67 kN | Co: 232 kN
K.81212 Shaft: 60 mm | For bearing: 81212 | C: 114 kN | Co: 365 kN
K.89312 Shaft: 60 mm | For bearing: 89312 | C: 196 kN | Co: 670 kN
K.87412 Shaft: 60 mm | For bearing: 87412 | C: 260 kN | Co: 1,000 kN
K.89412 Shaft: 60 mm | For bearing: 89412 | C: 390 kN | Co: 1,220 kN
K.81113 Shaft: 65 mm | For bearing: 81113 | C: 68 kN | Co: 245 kN
K.81213 Shaft: 65 mm | For bearing: 81213 | C: 118 kN | Co: 390 kN
K.89313 Shaft: 65 mm | For bearing: 89313 | C: 194 kN | Co: 670 kN
K.87413 Shaft: 65 mm | For bearing: 87413 | C: 300 kN | Co: 1,140 kN
K.89413 Shaft: 65 mm | For bearing: 89413 | C: 445 kN | Co: 1,410 kN
K.81114 Shaft: 70 mm | For bearing: 81114 | C: 71 kN | Co: 265 kN
K.81214 Shaft: 70 mm | For bearing: 81214 | C: 122 kN | Co: 415 kN
K.89314 Shaft: 70 mm | For bearing: 89314 | C: 239 kN | Co: 830 kN
K.87414 Shaft: 70 mm | For bearing: 87414 | C: 360 kN | Co: 1,380 kN
K.89414 Shaft: 70 mm | For bearing: 89414 | C: 450 kN | Co: 1,390 kN
K.81115 Shaft: 75 mm | For bearing: 81115 | C: 75 kN | Co: 285 kN
K.81215 Shaft: 75 mm | For bearing: 81215 | C: 125 kN | Co: 440 kN
K.89315 Shaft: 75 mm | For bearing: 89315 | C: 285 kN | Co: 1,010 kN
K.87415 Shaft: 75 mm | For bearing: 87415 | C: 430 kN | Co: 1,660 kN
K.89415 Shaft: 75 mm | For bearing: 89415 | C: 500 kN | Co: 1,580 kN
K.81116 Shaft: 80 mm | For bearing: 81116 | C: 76.5 kN | Co: 300 kN
K.81216 Shaft: 80 mm | For bearing: 81216 | C: 129 kN | Co: 455 kN
K.89316 Shaft: 80 mm | For bearing: 89316 | C: 305 kN | Co: 1,110 kN
K.87416 Shaft: 80 mm | For bearing: 87416 | C: 450 kN | Co: 1,810 kN
K.89416 Shaft: 80 mm | For bearing: 89416 | C: 560 kN | Co: 1,770 kN
K.81117 Shaft: 85 mm | For bearing: 81117 | C: 76.5 kN | Co: 310 kN
K.81217 Shaft: 85 mm | For bearing: 81217 | C: 153 kN | Co: 550 kN
K.89317 Shaft: 85 mm | For bearing: 89317 | C: 325 kN | Co: 1,140 kN
K.87417 Shaft: 85 mm | For bearing: 87417 | C: 485 kN | Co: 1,920 kN
K.89417 Shaft: 85 mm | For bearing: 89417 | C: 620 kN | Co: 1,980 kN
K.81118 Shaft: 90 mm | For bearing: 81118 | C: 104 kN | Co: 415 kN
K.81218 Shaft: 90 mm | For bearing: 81218 | C: 190 kN | Co: 670 kN
K.89318 Shaft: 90 mm | For bearing: 89318 | C: 330 kN | Co: 1,200 kN
K.87418 Shaft: 90 mm | For bearing: 87418 | C: 510 kN | Co: 2,090 kN
K.89418 Shaft: 90 mm | For bearing: 89418 | C: 680 kN | Co: 2,200 kN
K.81120 Shaft: 100 mm | For bearing: 81120 | C: 146 kN | Co: 585 kN
K.81220 Shaft: 100 mm | For bearing: 81220 | C: 224 kN | Co: 815 kN
K.89320 Shaft: 100 mm | For bearing: 89320 | C: 380 kN | Co: 1,400 kN
K.87420 Shaft: 100 mm | For bearing: 87420 | C: 680 kN | Co: 2,800 kN
K.89420 Shaft: 100 mm | For bearing: 89420 | C: 850 kN | Co: 2,850 kN
K.81122 Shaft: 110 mm | For bearing: 81122 | C: 160 kN | Co: 655 kN
K.81222 Shaft: 110 mm | For bearing: 81222 | C: 232 kN | Co: 865 kN
K.89322 Shaft: 110 mm | For bearing: 89322 | C: 500 kN | Co: 1,870 kN
K.87422 Shaft: 110 mm | For bearing: 87422 | C: 810 kN | Co: 3,350 kN
K.89422 Shaft: 110 mm | For bearing: 89422 | C: 1,000 kN | Co: 3,400 kN
K.81124 Shaft: 120 mm | For bearing: 81124 | C: 160 kN | Co: 680 kN
K.81224 Shaft: 120 mm | For bearing: 81224 | C: 245 kN | Co: 950 kN
K.89324 Shaft: 120 mm | For bearing: 89324 | C: 640 kN | Co: 2,420 kN
K.87424 Shaft: 120 mm | For bearing: 87424 | C: 960 kN | Co: 4,100 kN
K.89424 Shaft: 120 mm | For bearing: 89424 | C: 1,160 kN | Co: 4,000 kN
K.81126 Shaft: 130 mm | For bearing: 81126 | C: 183 kN | Co: 780 kN
K.81226 Shaft: 130 mm | For bearing: 81226 | C: 365 kN | Co: 1,400 kN
K.89326 Shaft: 130 mm | For bearing: 89326 | C: 710 kN | Co: 2,700 kN
K.87426 Shaft: 130 mm | For bearing: 87426 | C: 1,050 kN | Co: 4,550 kN
K.89426 Shaft: 130 mm | For bearing: 89426 | C: 1,330 kN | Co: 4,600 kN
K.81128 Shaft: 140 mm | For bearing: 81128 | C: 196 kN | Co: 865 kN
K.81228 Shaft: 140 mm | For bearing: 81228 | C: 375 kN | Co: 1,460 kN
K.89328 Shaft: 140 mm | For bearing: 89328 | C: 820 kN | Co: 3,200 kN
K.87428 Shaft: 140 mm | For bearing: 87428 | C: 1,110 kN | Co: 4,950 kN
K.89428 Shaft: 140 mm | For bearing: 89428 | C: 1,380 kN | Co: 4,950 kN
K.81130 Shaft: 150 mm | For bearing: 81130 | C: 204 kN | Co: 930 kN
K.81230 Shaft: 150 mm | For bearing: 81230 | C: 455 kN | Co: 1,800 kN
K.89330 Shaft: 150 mm | For bearing: 89330 | C: 840 kN | Co: 3,350 kN
K.87430 Shaft: 150 mm | For bearing: 87430 | C: 1,260 kN | Co: 5,500 kN
K.89430 Shaft: 150 mm | For bearing: 89430 | C: 1,570 kN | Co: 5,700 kN
K.81132 Shaft: 160 mm | For bearing: 81132 | C: 212 kN | Co: 980 kN
K.81232 Shaft: 160 mm | For bearing: 81232 | C: 465 kN | Co: 1,900 kN
K.89332 Shaft: 160 mm | For bearing: 89332 | C: 970 kN | Co: 3,900 kN
K.87432 Shaft: 160 mm | For bearing: 87432 | C: 1,450 kN | Co: 6,600 kN
K.89432 Shaft: 160 mm | For bearing: 89432 | C: 1,780 kN | Co: 6,500 kN
K.81134 Shaft: 170 mm | For bearing: 81134 | C: 265 kN | Co: 1,220 kN
K.81234 Shaft: 170 mm | For bearing: 81234 | C: 510 kN | Co: 2,080 kN
K.89334 Shaft: 170 mm | For bearing: 89334 | C: 1,000 kN | Co: 4,050 kN
K.87434 Shaft: 170 mm | For bearing: 87434 | C: 1,620 kN | Co: 7,300 kN
K.89434 Shaft: 170 mm | For bearing: 89434 | C: 1,990 kN | Co: 7,400 kN
K.81136 Shaft: 180 mm | For bearing: 81136 | C: 275 kN | Co: 1,290 kN
K.81236 Shaft: 180 mm | For bearing: 81236 | C: 520 kN | Co: 2,160 kN
K.89336 Shaft: 180 mm | For bearing: 89336 | C: 1,260 kN | Co: 5,100 kN
K.87436 Shaft: 180 mm | For bearing: 87436 | C: 1,860 kN | Co: 8,600 kN
K.89436 Shaft: 180 mm | For bearing: 89436 | C: 2,210 kN | Co: 8,200 kN
K.81138 Shaft: 190 mm | For bearing: 81138 | C: 315 kN | Co: 1,500 kN
K.81238 Shaft: 190 mm | For bearing: 81238 | C: 655 kN | Co: 2,650 kN
K.89338 Shaft: 190 mm | For bearing: 89338 | C: 1,420 kN | Co: 5,700 kN
K.87438 Shaft: 190 mm | For bearing: 87438 | C: 1,990 kN | Co: 9,300 kN
K.89438 Shaft: 190 mm | For bearing: 89438 | C: 2,450 kN | Co: 9,200 kN
K.81140 Shaft: 200 mm | For bearing: 81140 | C: 325 kN | Co: 1,600 kN
K.81240 Shaft: 200 mm | For bearing: 81240 | C: 695 kN | Co: 2,900 kN
K.89340 Shaft: 200 mm | For bearing: 89340 | C: 1,630 kN | Co: 6,600 kN
K.87440 Shaft: 200 mm | For bearing: 87440 | C: 2,290 kN | Co: 10,700 kN
K.89440 Shaft: 200 mm | For bearing: 89440 | C: 2,700 kN | Co: 10,200 kN
K.81144 Shaft: 220 mm | For bearing: 81144 | C: 355 kN | Co: 1,830 kN
K.81244 Shaft: 220 mm | For bearing: 81244 | C: 710 kN | Co: 3,050 kN
K.89444 Shaft: 220 mm | For bearing: 89444 | C: 2,900 kN | Co: 11,500 kN
K.81148 Shaft: 240 mm | For bearing: 81148 | C: 465 kN | Co: 2,360 kN
K.81248 Shaft: 240 mm | For bearing: 81248 | C: 980 kN | Co: 4,250 kN
K.89448 Shaft: 240 mm | For bearing: 89448 | C: 3,000 kN | Co: 12,200 kN
K.81152 Shaft: 260 mm | For bearing: 81152 | C: 500 kN | Co: 2,650 kN
K.81252 Shaft: 260 mm | For bearing: 81252 | C: 1,040 kN | Co: 4,650 kN
K.89452 Shaft: 260 mm | For bearing: 89452 | C: 3,550 kN | Co: 14,600 kN
K.81156 Shaft: 280 mm | For bearing: 81156 | C: 670 kN | Co: 3,450 kN
K.81256 Shaft: 280 mm | For bearing: 81256 | C: 1,060 kN | Co: 4,900 kN
K.89456 Shaft: 280 mm | For bearing: 89456 | C: 4,200 kN | Co: 17,400 kN
K.81160 Shaft: 300 mm | For bearing: 81160 | C: 800 kN | Co: 4,000 kN
K.81260 Shaft: 300 mm | For bearing: 81260 | C: 1,400 kN | Co: 6,200 kN
K.89460 Shaft: 300 mm | For bearing: 89460 | C: 4,300 kN | Co: 18,400 kN
K.81164 Shaft: 320 mm | For bearing: 81164 | C: 865 kN | Co: 4,500 kN
K.81264 Shaft: 320 mm | For bearing: 81264 | C: 1,430 kN | Co: 6,550 kN
K.81168 Shaft: 340 mm | For bearing: 81168 | C: 850 kN | Co: 4,500 kN
K.81268 Shaft: 340 mm | For bearing: 81268 | C: 1,500 kN | Co: 7,100 kN
K.81172 Shaft: 360 mm | For bearing: 81172 | C: 900 kN | Co: 4,900 kN
K.81272 Shaft: 360 mm | For bearing: 81272 | C: 1,960 kN | Co: 9,150 kN
K.81176 Shaft: 380 mm | For bearing: 81176 | C: 880 kN | Co: 4,900 kN
K.81276 Shaft: 380 mm | For bearing: 81276 | C: 2,000 kN | Co: 9,500 kN
K.81180 Shaft: 400 mm | For bearing: 81180 | C: 915 kN | Co: 5,100 kN
K.81280 Shaft: 400 mm | For bearing: 81280 | C: 2,080 kN | Co: 10,000 kN
K.81184 Shaft: 420 mm | For bearing: 81184 | C: 930 kN | Co: 5,400 kN
K.81284 Shaft: 420 mm | For bearing: 81284 | C: 2,600 kN | Co: 12,200 kN
K.81188 Shaft: 440 mm | For bearing: 81188 | C: 1,340 kN | Co: 7,350 kN
K.81288 Shaft: 440 mm | For bearing: 81288 | C: 2,650 kN | Co: 12,900 kN
K.81192 Shaft: 460 mm | For bearing: 81192 | C: 1,370 kN | Co: 7,800 kN
K.81292 Shaft: 460 mm | For bearing: 81292 | C: 2,700 kN | Co: 13,400 kN
K.81196 Shaft: 480 mm | For bearing: 81196 | C: 1,400 kN | Co: 8,000 kN
K.81296 Shaft: 480 mm | For bearing: 81296 | C: 3,050 kN | Co: 15,000 kN
K.811/500 Shaft: 500 mm | For bearing: 811/500 | C: 1,430 kN | Co: 8,500 kN
K.812/500 Shaft: 500 mm | For bearing: 812/500 | C: 3,100 kN | Co: 15,600 kN
K.811/530 Shaft: 530 mm | For bearing: 811/530 | C: 1,630 kN | Co: 9,500 kN
K.812/530 Shaft: 530 mm | For bearing: 812/530 | C: 3,550 kN | Co: 18,000 kN
K.811/560 Shaft: 560 mm | For bearing: 811/560 | C: 1,660 kN | Co: 10,000 kN
K.812/560 Shaft: 560 mm | For bearing: 812/560 | C: 3,600 kN | Co: 18,600 kN
K.811/600 Shaft: 600 mm | For bearing: 811/600 | C: 1,700 kN | Co: 10,600 kN
K.812/600 Shaft: 600 mm | For bearing: 812/600 | C: 4,050 kN | Co: 21,200 kN
Thrust BearingsWBC
157 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WBC K Thrust Cylindrical Roller & Cage Assemblies (811-894)

Brand WBC·Thrust Bearings

Available part numbers (157)

K.81102, K.81103, K.81104, K.81105, K.81106, K.81206, K.89306, K.81107, K.81207, K.89307 + 147 more — see full table ↓

How to order

Send the WBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K.81102Shaft: 15 mm | For bearing: 81102 | C: 10.4 kN | Co: 24.5 kN
K.81103Shaft: 17 mm | For bearing: 81103 | C: 10.8 kN | Co: 27 kN
K.81104Shaft: 20 mm | For bearing: 81104 | C: 20.4 kN | Co: 54 kN
K.81105Shaft: 25 mm | For bearing: 81105 | C: 26.5 kN | Co: 73.5 kN
K.81106Shaft: 30 mm | For bearing: 81106 | C: 28 kN | Co: 83 kN
K.81206Shaft: 30 mm | For bearing: 81206 | C: 46.5 kN | Co: 122 kN
K.89306Shaft: 30 mm | For bearing: 89306 | C: 69 kN | Co: 197 kN
K.81107Shaft: 35 mm | For bearing: 81107 | C: 26 kN | Co: 78 kN
K.81207Shaft: 35 mm | For bearing: 81207 | C: 51 kN | Co: 143 kN
K.89307Shaft: 35 mm | For bearing: 89307 | C: 80 kN | Co: 237 kN
K.81108Shaft: 40 mm | For bearing: 81108 | C: 38 kN | Co: 116 kN
K.81208Shaft: 40 mm | For bearing: 81208 | C: 76.5 kN | Co: 220 kN
K.89308Shaft: 40 mm | For bearing: 89308 | C: 122 kN | Co: 385 kN
K.87408Shaft: 40 mm | For bearing: 87408 | C: 135 kN | Co: 480 kN
K.81109Shaft: 45 mm | For bearing: 81109 | C: 45 kN | Co: 153 kN
K.81209Shaft: 45 mm | For bearing: 81209 | C: 83 kN | Co: 255 kN
K.89309Shaft: 45 mm | For bearing: 89309 | C: 139 kN | Co: 445 kN
K.87409Shaft: 45 mm | For bearing: 87409 | C: 154 kN | Co: 560 kN
K.81110Shaft: 50 mm | For bearing: 81110 | C: 42.5 kN | Co: 143 kN
K.81210Shaft: 50 mm | For bearing: 81210 | C: 88 kN | Co: 285 kN
K.89310Shaft: 50 mm | For bearing: 89310 | C: 167 kN | Co: 560 kN
K.87410Shaft: 50 mm | For bearing: 87410 | C: 200 kN | Co: 740 kN
K.81111Shaft: 55 mm | For bearing: 81111 | C: 52 kN | Co: 193 kN
K.81211Shaft: 55 mm | For bearing: 81211 | C: 106 kN | Co: 340 kN
K.89311Shaft: 55 mm | For bearing: 89311 | C: 184 kN | Co: 600 kN
K.87411Shaft: 55 mm | For bearing: 87411 | C: 222 kN | Co: 870 kN
K.81112Shaft: 60 mm | For bearing: 81112 | C: 67 kN | Co: 232 kN
K.81212Shaft: 60 mm | For bearing: 81212 | C: 114 kN | Co: 365 kN
K.89312Shaft: 60 mm | For bearing: 89312 | C: 196 kN | Co: 670 kN
K.87412Shaft: 60 mm | For bearing: 87412 | C: 260 kN | Co: 1,000 kN
K.89412Shaft: 60 mm | For bearing: 89412 | C: 390 kN | Co: 1,220 kN
K.81113Shaft: 65 mm | For bearing: 81113 | C: 68 kN | Co: 245 kN
K.81213Shaft: 65 mm | For bearing: 81213 | C: 118 kN | Co: 390 kN
K.89313Shaft: 65 mm | For bearing: 89313 | C: 194 kN | Co: 670 kN
K.87413Shaft: 65 mm | For bearing: 87413 | C: 300 kN | Co: 1,140 kN
K.89413Shaft: 65 mm | For bearing: 89413 | C: 445 kN | Co: 1,410 kN
K.81114Shaft: 70 mm | For bearing: 81114 | C: 71 kN | Co: 265 kN
K.81214Shaft: 70 mm | For bearing: 81214 | C: 122 kN | Co: 415 kN
K.89314Shaft: 70 mm | For bearing: 89314 | C: 239 kN | Co: 830 kN
K.87414Shaft: 70 mm | For bearing: 87414 | C: 360 kN | Co: 1,380 kN
K.89414Shaft: 70 mm | For bearing: 89414 | C: 450 kN | Co: 1,390 kN
K.81115Shaft: 75 mm | For bearing: 81115 | C: 75 kN | Co: 285 kN
K.81215Shaft: 75 mm | For bearing: 81215 | C: 125 kN | Co: 440 kN
K.89315Shaft: 75 mm | For bearing: 89315 | C: 285 kN | Co: 1,010 kN
K.87415Shaft: 75 mm | For bearing: 87415 | C: 430 kN | Co: 1,660 kN
K.89415Shaft: 75 mm | For bearing: 89415 | C: 500 kN | Co: 1,580 kN
K.81116Shaft: 80 mm | For bearing: 81116 | C: 76.5 kN | Co: 300 kN
K.81216Shaft: 80 mm | For bearing: 81216 | C: 129 kN | Co: 455 kN
K.89316Shaft: 80 mm | For bearing: 89316 | C: 305 kN | Co: 1,110 kN
K.87416Shaft: 80 mm | For bearing: 87416 | C: 450 kN | Co: 1,810 kN
K.89416Shaft: 80 mm | For bearing: 89416 | C: 560 kN | Co: 1,770 kN
K.81117Shaft: 85 mm | For bearing: 81117 | C: 76.5 kN | Co: 310 kN
K.81217Shaft: 85 mm | For bearing: 81217 | C: 153 kN | Co: 550 kN
K.89317Shaft: 85 mm | For bearing: 89317 | C: 325 kN | Co: 1,140 kN
K.87417Shaft: 85 mm | For bearing: 87417 | C: 485 kN | Co: 1,920 kN
K.89417Shaft: 85 mm | For bearing: 89417 | C: 620 kN | Co: 1,980 kN
K.81118Shaft: 90 mm | For bearing: 81118 | C: 104 kN | Co: 415 kN
K.81218Shaft: 90 mm | For bearing: 81218 | C: 190 kN | Co: 670 kN
K.89318Shaft: 90 mm | For bearing: 89318 | C: 330 kN | Co: 1,200 kN
K.87418Shaft: 90 mm | For bearing: 87418 | C: 510 kN | Co: 2,090 kN
K.89418Shaft: 90 mm | For bearing: 89418 | C: 680 kN | Co: 2,200 kN
K.81120Shaft: 100 mm | For bearing: 81120 | C: 146 kN | Co: 585 kN
K.81220Shaft: 100 mm | For bearing: 81220 | C: 224 kN | Co: 815 kN
K.89320Shaft: 100 mm | For bearing: 89320 | C: 380 kN | Co: 1,400 kN
K.87420Shaft: 100 mm | For bearing: 87420 | C: 680 kN | Co: 2,800 kN
K.89420Shaft: 100 mm | For bearing: 89420 | C: 850 kN | Co: 2,850 kN
K.81122Shaft: 110 mm | For bearing: 81122 | C: 160 kN | Co: 655 kN
K.81222Shaft: 110 mm | For bearing: 81222 | C: 232 kN | Co: 865 kN
K.89322Shaft: 110 mm | For bearing: 89322 | C: 500 kN | Co: 1,870 kN
K.87422Shaft: 110 mm | For bearing: 87422 | C: 810 kN | Co: 3,350 kN
K.89422Shaft: 110 mm | For bearing: 89422 | C: 1,000 kN | Co: 3,400 kN
K.81124Shaft: 120 mm | For bearing: 81124 | C: 160 kN | Co: 680 kN
K.81224Shaft: 120 mm | For bearing: 81224 | C: 245 kN | Co: 950 kN
K.89324Shaft: 120 mm | For bearing: 89324 | C: 640 kN | Co: 2,420 kN
K.87424Shaft: 120 mm | For bearing: 87424 | C: 960 kN | Co: 4,100 kN
K.89424Shaft: 120 mm | For bearing: 89424 | C: 1,160 kN | Co: 4,000 kN
K.81126Shaft: 130 mm | For bearing: 81126 | C: 183 kN | Co: 780 kN
K.81226Shaft: 130 mm | For bearing: 81226 | C: 365 kN | Co: 1,400 kN
K.89326Shaft: 130 mm | For bearing: 89326 | C: 710 kN | Co: 2,700 kN
K.87426Shaft: 130 mm | For bearing: 87426 | C: 1,050 kN | Co: 4,550 kN
K.89426Shaft: 130 mm | For bearing: 89426 | C: 1,330 kN | Co: 4,600 kN
K.81128Shaft: 140 mm | For bearing: 81128 | C: 196 kN | Co: 865 kN
K.81228Shaft: 140 mm | For bearing: 81228 | C: 375 kN | Co: 1,460 kN
K.89328Shaft: 140 mm | For bearing: 89328 | C: 820 kN | Co: 3,200 kN
K.87428Shaft: 140 mm | For bearing: 87428 | C: 1,110 kN | Co: 4,950 kN
K.89428Shaft: 140 mm | For bearing: 89428 | C: 1,380 kN | Co: 4,950 kN
K.81130Shaft: 150 mm | For bearing: 81130 | C: 204 kN | Co: 930 kN
K.81230Shaft: 150 mm | For bearing: 81230 | C: 455 kN | Co: 1,800 kN
K.89330Shaft: 150 mm | For bearing: 89330 | C: 840 kN | Co: 3,350 kN
K.87430Shaft: 150 mm | For bearing: 87430 | C: 1,260 kN | Co: 5,500 kN
K.89430Shaft: 150 mm | For bearing: 89430 | C: 1,570 kN | Co: 5,700 kN
K.81132Shaft: 160 mm | For bearing: 81132 | C: 212 kN | Co: 980 kN
K.81232Shaft: 160 mm | For bearing: 81232 | C: 465 kN | Co: 1,900 kN
K.89332Shaft: 160 mm | For bearing: 89332 | C: 970 kN | Co: 3,900 kN
K.87432Shaft: 160 mm | For bearing: 87432 | C: 1,450 kN | Co: 6,600 kN
K.89432Shaft: 160 mm | For bearing: 89432 | C: 1,780 kN | Co: 6,500 kN
K.81134Shaft: 170 mm | For bearing: 81134 | C: 265 kN | Co: 1,220 kN
K.81234Shaft: 170 mm | For bearing: 81234 | C: 510 kN | Co: 2,080 kN
K.89334Shaft: 170 mm | For bearing: 89334 | C: 1,000 kN | Co: 4,050 kN
K.87434Shaft: 170 mm | For bearing: 87434 | C: 1,620 kN | Co: 7,300 kN
K.89434Shaft: 170 mm | For bearing: 89434 | C: 1,990 kN | Co: 7,400 kN
K.81136Shaft: 180 mm | For bearing: 81136 | C: 275 kN | Co: 1,290 kN
K.81236Shaft: 180 mm | For bearing: 81236 | C: 520 kN | Co: 2,160 kN
K.89336Shaft: 180 mm | For bearing: 89336 | C: 1,260 kN | Co: 5,100 kN
K.87436Shaft: 180 mm | For bearing: 87436 | C: 1,860 kN | Co: 8,600 kN
K.89436Shaft: 180 mm | For bearing: 89436 | C: 2,210 kN | Co: 8,200 kN
K.81138Shaft: 190 mm | For bearing: 81138 | C: 315 kN | Co: 1,500 kN
K.81238Shaft: 190 mm | For bearing: 81238 | C: 655 kN | Co: 2,650 kN
K.89338Shaft: 190 mm | For bearing: 89338 | C: 1,420 kN | Co: 5,700 kN
K.87438Shaft: 190 mm | For bearing: 87438 | C: 1,990 kN | Co: 9,300 kN
K.89438Shaft: 190 mm | For bearing: 89438 | C: 2,450 kN | Co: 9,200 kN
K.81140Shaft: 200 mm | For bearing: 81140 | C: 325 kN | Co: 1,600 kN
K.81240Shaft: 200 mm | For bearing: 81240 | C: 695 kN | Co: 2,900 kN
K.89340Shaft: 200 mm | For bearing: 89340 | C: 1,630 kN | Co: 6,600 kN
K.87440Shaft: 200 mm | For bearing: 87440 | C: 2,290 kN | Co: 10,700 kN
K.89440Shaft: 200 mm | For bearing: 89440 | C: 2,700 kN | Co: 10,200 kN
K.81144Shaft: 220 mm | For bearing: 81144 | C: 355 kN | Co: 1,830 kN
K.81244Shaft: 220 mm | For bearing: 81244 | C: 710 kN | Co: 3,050 kN
K.89444Shaft: 220 mm | For bearing: 89444 | C: 2,900 kN | Co: 11,500 kN
K.81148Shaft: 240 mm | For bearing: 81148 | C: 465 kN | Co: 2,360 kN
K.81248Shaft: 240 mm | For bearing: 81248 | C: 980 kN | Co: 4,250 kN
K.89448Shaft: 240 mm | For bearing: 89448 | C: 3,000 kN | Co: 12,200 kN
K.81152Shaft: 260 mm | For bearing: 81152 | C: 500 kN | Co: 2,650 kN
K.81252Shaft: 260 mm | For bearing: 81252 | C: 1,040 kN | Co: 4,650 kN
K.89452Shaft: 260 mm | For bearing: 89452 | C: 3,550 kN | Co: 14,600 kN
K.81156Shaft: 280 mm | For bearing: 81156 | C: 670 kN | Co: 3,450 kN
K.81256Shaft: 280 mm | For bearing: 81256 | C: 1,060 kN | Co: 4,900 kN
K.89456Shaft: 280 mm | For bearing: 89456 | C: 4,200 kN | Co: 17,400 kN
K.81160Shaft: 300 mm | For bearing: 81160 | C: 800 kN | Co: 4,000 kN
K.81260Shaft: 300 mm | For bearing: 81260 | C: 1,400 kN | Co: 6,200 kN
K.89460Shaft: 300 mm | For bearing: 89460 | C: 4,300 kN | Co: 18,400 kN
K.81164Shaft: 320 mm | For bearing: 81164 | C: 865 kN | Co: 4,500 kN
K.81264Shaft: 320 mm | For bearing: 81264 | C: 1,430 kN | Co: 6,550 kN
K.81168Shaft: 340 mm | For bearing: 81168 | C: 850 kN | Co: 4,500 kN
K.81268Shaft: 340 mm | For bearing: 81268 | C: 1,500 kN | Co: 7,100 kN
K.81172Shaft: 360 mm | For bearing: 81172 | C: 900 kN | Co: 4,900 kN
K.81272Shaft: 360 mm | For bearing: 81272 | C: 1,960 kN | Co: 9,150 kN
K.81176Shaft: 380 mm | For bearing: 81176 | C: 880 kN | Co: 4,900 kN
K.81276Shaft: 380 mm | For bearing: 81276 | C: 2,000 kN | Co: 9,500 kN
K.81180Shaft: 400 mm | For bearing: 81180 | C: 915 kN | Co: 5,100 kN
K.81280Shaft: 400 mm | For bearing: 81280 | C: 2,080 kN | Co: 10,000 kN
K.81184Shaft: 420 mm | For bearing: 81184 | C: 930 kN | Co: 5,400 kN
K.81284Shaft: 420 mm | For bearing: 81284 | C: 2,600 kN | Co: 12,200 kN
K.81188Shaft: 440 mm | For bearing: 81188 | C: 1,340 kN | Co: 7,350 kN
K.81288Shaft: 440 mm | For bearing: 81288 | C: 2,650 kN | Co: 12,900 kN
K.81192Shaft: 460 mm | For bearing: 81192 | C: 1,370 kN | Co: 7,800 kN
K.81292Shaft: 460 mm | For bearing: 81292 | C: 2,700 kN | Co: 13,400 kN
K.81196Shaft: 480 mm | For bearing: 81196 | C: 1,400 kN | Co: 8,000 kN
K.81296Shaft: 480 mm | For bearing: 81296 | C: 3,050 kN | Co: 15,000 kN
K.811/500Shaft: 500 mm | For bearing: 811/500 | C: 1,430 kN | Co: 8,500 kN
K.812/500Shaft: 500 mm | For bearing: 812/500 | C: 3,100 kN | Co: 15,600 kN
K.811/530Shaft: 530 mm | For bearing: 811/530 | C: 1,630 kN | Co: 9,500 kN
K.812/530Shaft: 530 mm | For bearing: 812/530 | C: 3,550 kN | Co: 18,000 kN
K.811/560Shaft: 560 mm | For bearing: 811/560 | C: 1,660 kN | Co: 10,000 kN
K.812/560Shaft: 560 mm | For bearing: 812/560 | C: 3,600 kN | Co: 18,600 kN
K.811/600Shaft: 600 mm | For bearing: 811/600 | C: 1,700 kN | Co: 10,600 kN
K.812/600Shaft: 600 mm | For bearing: 812/600 | C: 4,050 kN | Co: 21,200 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
