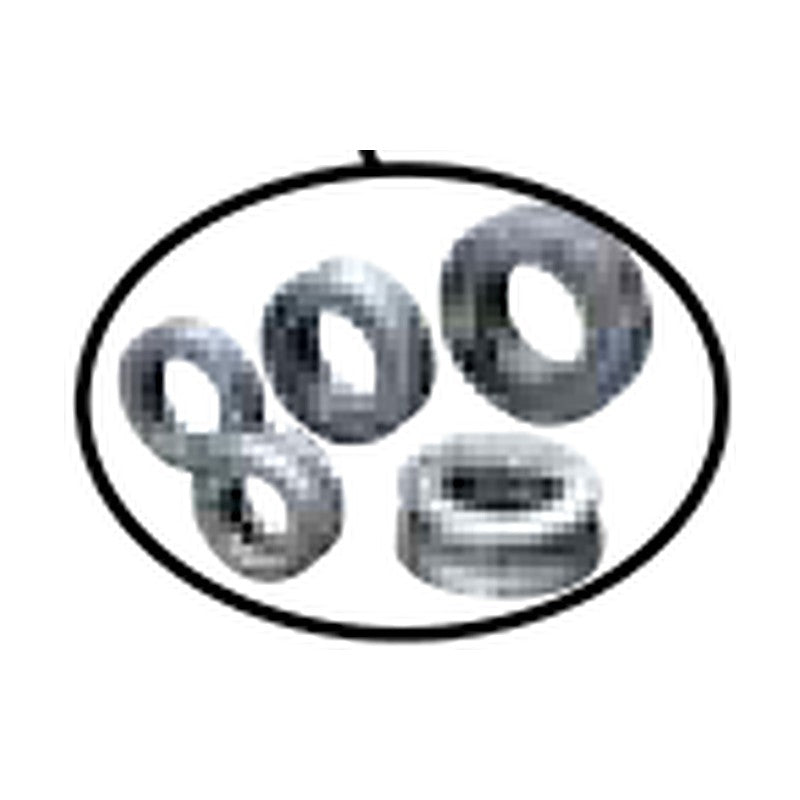

WBC King Pin Thrust Ball Bearings (T, TAG, F, Y Series)

WBC King Pin Thrust Ball Bearings (T, TAG, F, Y Series)

WBC king pin thrust ball bearings for vehicle steering knuckle king pins, listed by bearing number with bore, outside diameter and height.

Key features

  • Single direction thrust ball bearings for king pin applications
  • Tolerances: d and d1 +200/0 µm, D +200/-250 µm, H +250 µm
  • Type I, II and III designs on catalogue p. 36
  • T, TAG, TK, F, Y and numeric series
  • Made in Korea by Wonil Bearing Industry

Specifications

Brand WBC
Manufacturer Wonil Bearing Industry Co., Ltd.
Bearing type King pin thrust ball bearing
Units mm
Fillet r 2 mm
Source WBC (Wonil Bearing) Thrust Bearing General Catalogue, p. 34-36
T-19 d: 18.6 mm | D: 39 mm | H: 14.30 mm | Type: -
T-20 d: 20 mm | D: 40 mm | H: 14.30 mm | Type: -
T-21 d: 21 mm | D: 41.60 mm | H: 14.30 mm | Type: -
T-22 d: 22 mm | D: 43.60 mm | H: 14.80 mm | Type: -
T-23 d: 23.40 mm | D: 42.50 mm | H: 15.80 mm | Type: -
T-94B d: 23.544 mm | D: 48.201 mm | H: 15.088 mm | Type: -
T-25-1 d: 25 mm | D: 46 mm | H: 15.80 mm | Type: -
T-2847 d: 28 mm | D: 47 mm | H: 16 mm | Type: -
T-28 d: 28 mm | D: 53 mm | H: 16.50 mm | Type: -
T-110B d: 28.729 mm | D: 53.181 mm | H: 15.875 mm | Type: -
T-113B(81T-3123B) d: 28.729 mm | D: 55.562 mm | H: 15.875 mm | Type: -
T-30 d: 30.10 mm | D: 52 mm | H: 16 mm | Type: -
T-126B(7EQ-O) d: 31.904 mm | D: 55.562 mm | H: 15.875 mm | Type: -
T-3558 d: 35 mm | D: 58 mm | H: 17 mm | Type: -
T-151 d: 38.40 mm | D: 72 mm | H: 22 mm | Type: -
T-40-3 d: 40.20 mm | D: 75.60 mm | H: 20 mm | Type: -
T-909 d: 45 mm | D: 74.50 mm | H: 23 mm | Type: -
T-50 d: 50 mm | D: 80.40 mm | H: 23.50 mm | Type: -
T-60 d: 60 mm | D: 100 mm | H: 26.10 mm | Type: -
T0722PX1 d: 35 mm | D: 65 mm | H: 19 mm | Type: -
TK-35 d: 35.40 mm | D: 65 mm | H: 16.2 mm | Type: -
TK-35S d: 35.40 mm | D: 65.88 mm | H: 10.7 mm | Type: -
TAG45-1 d: 45 mm | D: 72 mm | H: 15 mm | Type: -
TAG47-1 d: 47 mm | D: 78 mm | H: 23 mm | Type: -
TH15-6631 d: 50 mm | D: 75.60 mm | H: 19 mm | Type: -
F-20 d: 20 mm | D: 38.10 mm | H: 10.50 mm | Type: -
F-35A d: 35 mm | D: 65 mm | H: 18.30 mm | Type: -
F-38Z-5 d: 38.103 mm | D: 65.881 mm | H: 18.60 mm | Type: -
F-50-4 d: 50 mm | D: 75.60 mm | H: 18.80 mm | Type: -
Y-22-1 d: 22 mm | D: 40 mm | H: 13 mm | Type: -
Y-25-3 d: 25 mm | D: 45 mm | H: 13.80 mm | Type: -
Y-28-2DB d: 28 mm | D: 54.50 mm | H: 9 mm | Type: -
Y-45 d: 45 mm | D: 72.50 mm | H: 22 mm | Type: -
7037 d: 22.60 mm | D: 36.30 mm | H: 8 mm | Type: -
3073 d: 28.207 mm | D: 55.562 mm | H: 15.748 mm | Type: -
25TAG11 d: 25 mm | D: 43.50 mm | H: 11.80 mm | Type: -
20TAG12 d: 20 mm | D: 41.50 mm | H: 14.80 mm | Type: -
25TAG12 d: 25 mm | D: 48.70 mm | H: 15.80 mm | Type: -
28TAG12 d: 28 mm | D: 51.60 mm | H: 15.80 mm | Type: -
30TAG12 d: 30 mm | D: 53 mm | H: 17 mm | Type: -
32TAG12 d: 32.20 mm | D: 57 mm | H: 17 mm | Type: -
35TAG12 d: 35 mm | D: 65 mm | H: 19 mm | Type: -
40TAG12 d: 40 mm | D: 70 mm | H: 20 mm | Type: -
25.4KP d: 25.40 mm | D: 62 mm | H: 19 mm | Type: -
51102-1 d: 15 mm | D: 29 mm | H: 9.50 mm | Type: -
51104-1 d: 20 mm | D: 36.60 mm | H: 10.80 mm | Type: -
51106-1 d: 30 mm | D: 48.60 mm | H: 11.80 mm | Type: -
51108-1 d: 40 mm | D: 61.60 mm | H: 13.8 mm | Type: -
T-40S-3 d: 40.2 mm | D: 70 mm | H: 18.8 mm | Type: I
TAG21-1 d: 21 mm | D: 41.5 mm | H: 14.3 mm | Type: I
TAG20-4 d: 20 mm | D: 37.20 mm | H: 10.70 mm | Type: I
T5082 RS d: 50 mm | D: 82 mm | H: 18.80 mm | Type: I
T3563RS2 d: 35 mm | D: 62.70 mm | H: 16.80 mm | Type: I
F-28S-1 d: 28.15 mm | D: 53 mm | H: 16.40 mm | Type: I
T4072RS d: 40 mm | D: 72.50 mm | H: 19 mm | Type: I
25TAG11C d: 25 mm | D: 43.50 mm | H: 11.80 mm | Type: I
25TAG001 d: 25 mm | D: 43.50 mm | H: 15.80 mm | Type: I
28TAG12A d: 28 mm | D: 51.60 mm | H: 15.80 mm | Type: I
Y-30Z-1B d: 30.50 mm | D: 55.80 mm | H: 15.90 mm | Type: II
Y-38 d: 38.103 mm | D: 65.88 mm | H: 19.431 mm | Type: II
T5082 2RS d: 50.20 mm | D: 82 mm | H: 22 mm | Type: II
F-280 d: 28 mm | D: 54.50 mm | H: 14 mm | Type: III
T-28RO-1 d: 28 mm | D: 54.5 mm | H: 9.3 mm | Type: III
