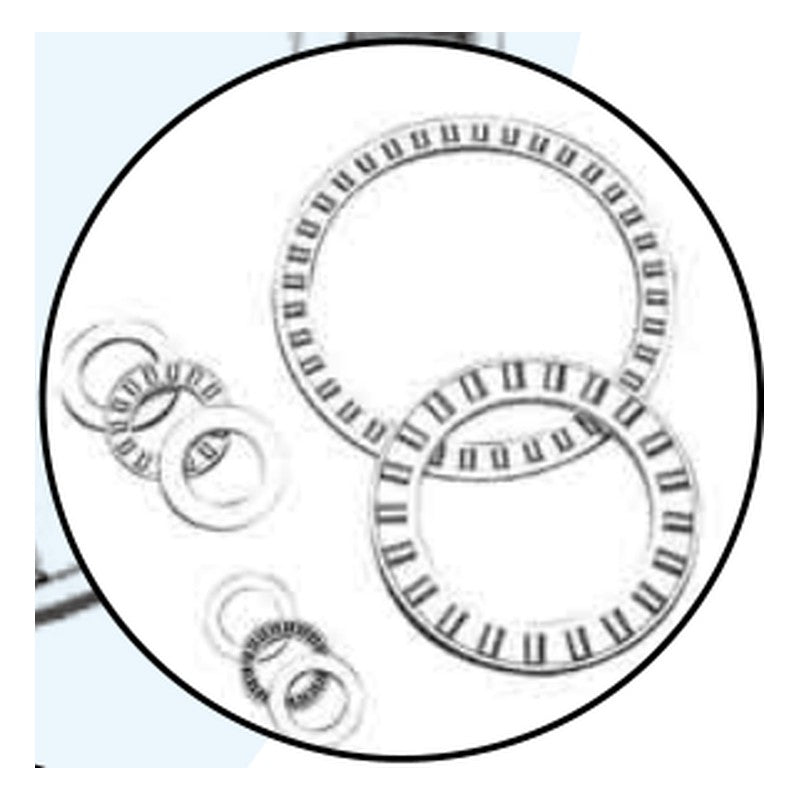

WBC LS Track Washers for K811 Roller & Cage Assemblies

WBC LS Track Washers for K811 Roller & Cage Assemblies

WBC LS track washers in hardened rolling bearing steel for thrust cylindrical roller and cage assemblies K.811.

Key features

  • Precision-ground raceways
  • Used as shaft or housing washer where adjacent parts are not hardened
  • Bore and outside diameter turned
  • Designation LS + dw + Dw

Specifications

Brand WBC
Manufacturer Wonil Bearing Industry Co., Ltd.
Bearing type Cylindrical roller thrust bearing
Series 811, 812, 893, 874, 894
Load ratings kN
Component Track washer
Source WBC (Wonil Bearing) Thrust Bearing General Catalogue, p. 42-51
LS1528 dw: 15 mm | Dw: 28 mm | For bearing: 81102
LS1730 dw: 17 mm | Dw: 30 mm | For bearing: 81103
LS2035 dw: 20 mm | Dw: 35 mm | For bearing: 81104
LS2542 dw: 25 mm | Dw: 42 mm | For bearing: 81105
LS3047 dw: 30 mm | Dw: 47 mm | For bearing: 81106
LS3552 dw: 35 mm | Dw: 52 mm | For bearing: 81107
LS4060 dw: 40 mm | Dw: 60 mm | For bearing: 81108
LS4565 dw: 45 mm | Dw: 65 mm | For bearing: 81109
LS5070 dw: 50 mm | Dw: 70 mm | For bearing: 81110
LS5578 dw: 55 mm | Dw: 78 mm | For bearing: 81111
LS6085 dw: 60 mm | Dw: 85 mm | For bearing: 81112
LS6590 dw: 65 mm | Dw: 90 mm | For bearing: 81113
LS7095 dw: 70 mm | Dw: 95 mm | For bearing: 81114
LS75100 dw: 75 mm | Dw: 100 mm | For bearing: 81115
LS80105 dw: 80 mm | Dw: 105 mm | For bearing: 81116
LS85110 dw: 85 mm | Dw: 110 mm | For bearing: 81117
LS90120 dw: 90 mm | Dw: 120 mm | For bearing: 81118
LS100135 dw: 100 mm | Dw: 135 mm | For bearing: 81120
LS110145 dw: 110 mm | Dw: 145 mm | For bearing: 81122
LS120155 dw: 120 mm | Dw: 155 mm | For bearing: 81124
LS130170 dw: 130 mm | Dw: 170 mm | For bearing: 81126
LS140180 dw: 140 mm | Dw: 180 mm | For bearing: 81128
LS150190 dw: 150 mm | Dw: 190 mm | For bearing: 81130
LS160200 dw: 160 mm | Dw: 200 mm | For bearing: 81132
