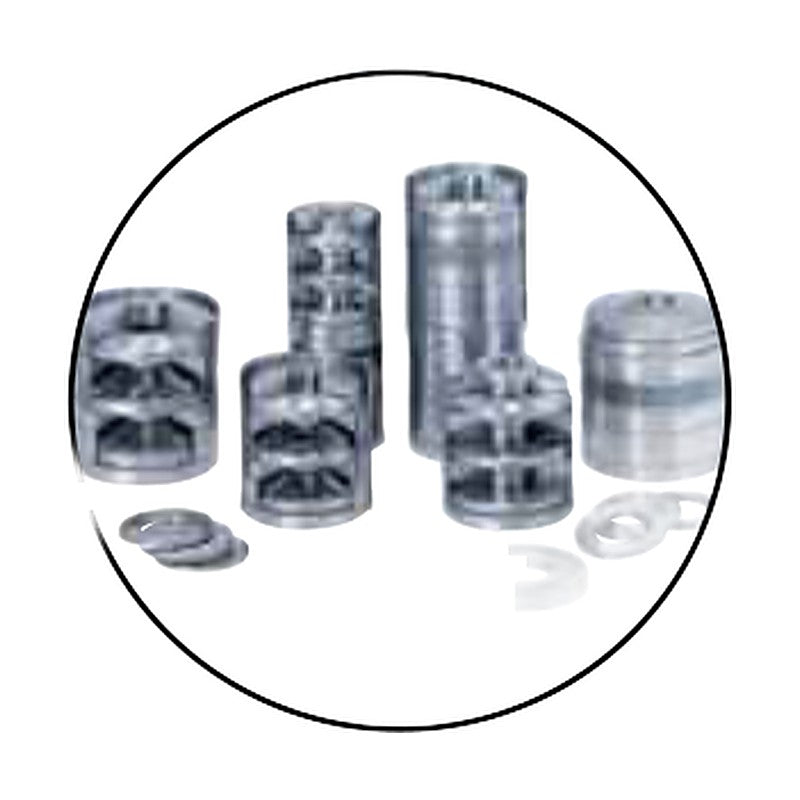

WBC Tandem Thrust Bearings (T2AR-T8AR, 3 to 8 Rows)

WBC Tandem Thrust Bearings (T2AR-T8AR, 3 to 8 Rows)

WBC tandem thrust bearings combine several cylindrical roller thrust bearings in line with matched rings, washers and bushes for very high axial loads in limited radial space.

Key features

  • 3 to 8 cylindrical roller thrust rows in tandem
  • High axial forces with limited radial space and long life
  • Used in extruder gearboxes for rubber and plastics, drilling and friction welding machines
  • Must be lubricated by oil circulation
  • Shaft tolerance f6, housing bore F7; made to order

Specifications

Brand WBC
Manufacturer Wonil Bearing Industry Co., Ltd.
Bearing type Tandem cylindrical roller thrust
Load ratings kN
Lubrication Oil circulation
Source WBC (Wonil Bearing) Thrust Bearing General Catalogue, p. 52-53
T-1570-4 d: 15 mm | D: 70 mm | H: 153.00 mm | Rows: 4 | C: 328 kN | Co: 820 kN
T-2270-3B d: 22 mm | D: 70 mm | H: 82.00 mm | Rows: 3 | C: 228 kN | Co: 589 kN
T-2270-4B d: 22 mm | D: 70 mm | H: 109.50 mm | Rows: 4 | C: 304 kN | Co: 785 kN
T-2270-6(53507) d: 22 mm | D: 70 mm | H: 182.20 mm | Rows: 6 | C: 456 kN | Co: 1,178 kN
T-2390-3A(412) d: 23 mm | D: 90 mm | H: 97.00 mm | Rows: 3 | C: 417 kN | Co: 1,250 kN
T-2390-3B(346) d: 23 mm | D: 90 mm | H: 97.00 mm | Rows: 3 | C: 419 kN | Co: 1,189 kN
T-2390-4A(81684) d: 23 mm | D: 90 mm | H: 129.50 mm | Rows: 4 | C: 559 kN | Co: 1,666 kN
T-2390-4B(58771) d: 23 mm | D: 90 mm | H: 129.50 mm | Rows: 4 | C: 568 kN | Co: 1,585 kN
T-2390-6(53043) d: 23 mm | D: 90 mm | H: 200.00 mm | Rows: 6 | C: 750 kN | Co: 2,439 kN
T-2390-8(81657) d: 23 mm | D: 90 mm | H: 271.25 mm | Rows: 8 | C: 1,127 kN | Co: 3,251 kN
T-25105-6(52548) d: 25 mm | D: 105 mm | H: 247.00 mm | Rows: 6 | C: 1,299 kN | Co: 2,940 kN
T-25105-8 d: 25 mm | D: 105 mm | H: 384.00 mm | Rows: 8 | C: 1,732 kN | Co: 3,933 kN
T-2872-6 d: 28 mm | D: 72 mm | H: 161.20 mm | Rows: 6 | C: 483 kN | Co: 1,354 kN
T-3092-6 d: 30 mm | D: 92 mm | H: 294.00 mm | Rows: 6 | C: 713 kN | Co: 2,079 kN
T-30127-6(52523) d: 30 mm | D: 127 mm | H: 288.00 mm | Rows: 6 | C: 1,540 kN | Co: 5,500 kN
T-33105-3(51909) d: 33 mm | D: 105 mm | H: 115.00 mm | Rows: 3 | C: 696 kN | Co: 1,973 kN
T-33105-4 d: 33 mm | D: 105 mm | H: 153.50 mm | Rows: 4 | C: 928 kN | Co: 2,631 kN
T33105-6 d: 33 mm | D: 105 mm | H: 229.00 mm | Rows: 6 | C: 1,393 kN | Co: 3,946 kN
Thrust BearingsWBC
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WBC Tandem Thrust Bearings (T2AR-T8AR, 3 to 8 Rows)

Brand WBC·Thrust Bearings

Available part numbers (18)

T-1570-4, T-2270-3B, T-2270-4B, T-2270-6(53507), T-2390-3A(412), T-2390-3B(346), T-2390-4A(81684), T-2390-4B(58771), T-2390-6(53043), T-2390-8(81657) + 8 more — see full table ↓

How to order

Send the WBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
T-1570-4d: 15 mm | D: 70 mm | H: 153.00 mm | Rows: 4 | C: 328 kN | Co: 820 kN
T-2270-3Bd: 22 mm | D: 70 mm | H: 82.00 mm | Rows: 3 | C: 228 kN | Co: 589 kN
T-2270-4Bd: 22 mm | D: 70 mm | H: 109.50 mm | Rows: 4 | C: 304 kN | Co: 785 kN
T-2270-6(53507)d: 22 mm | D: 70 mm | H: 182.20 mm | Rows: 6 | C: 456 kN | Co: 1,178 kN
T-2390-3A(412)d: 23 mm | D: 90 mm | H: 97.00 mm | Rows: 3 | C: 417 kN | Co: 1,250 kN
T-2390-3B(346)d: 23 mm | D: 90 mm | H: 97.00 mm | Rows: 3 | C: 419 kN | Co: 1,189 kN
T-2390-4A(81684)d: 23 mm | D: 90 mm | H: 129.50 mm | Rows: 4 | C: 559 kN | Co: 1,666 kN
T-2390-4B(58771)d: 23 mm | D: 90 mm | H: 129.50 mm | Rows: 4 | C: 568 kN | Co: 1,585 kN
T-2390-6(53043)d: 23 mm | D: 90 mm | H: 200.00 mm | Rows: 6 | C: 750 kN | Co: 2,439 kN
T-2390-8(81657)d: 23 mm | D: 90 mm | H: 271.25 mm | Rows: 8 | C: 1,127 kN | Co: 3,251 kN
T-25105-6(52548)d: 25 mm | D: 105 mm | H: 247.00 mm | Rows: 6 | C: 1,299 kN | Co: 2,940 kN
T-25105-8d: 25 mm | D: 105 mm | H: 384.00 mm | Rows: 8 | C: 1,732 kN | Co: 3,933 kN
T-2872-6d: 28 mm | D: 72 mm | H: 161.20 mm | Rows: 6 | C: 483 kN | Co: 1,354 kN
T-3092-6d: 30 mm | D: 92 mm | H: 294.00 mm | Rows: 6 | C: 713 kN | Co: 2,079 kN
T-30127-6(52523)d: 30 mm | D: 127 mm | H: 288.00 mm | Rows: 6 | C: 1,540 kN | Co: 5,500 kN
T-33105-3(51909)d: 33 mm | D: 105 mm | H: 115.00 mm | Rows: 3 | C: 696 kN | Co: 1,973 kN
T-33105-4d: 33 mm | D: 105 mm | H: 153.50 mm | Rows: 4 | C: 928 kN | Co: 2,631 kN
T33105-6d: 33 mm | D: 105 mm | H: 229.00 mm | Rows: 6 | C: 1,393 kN | Co: 3,946 kN
