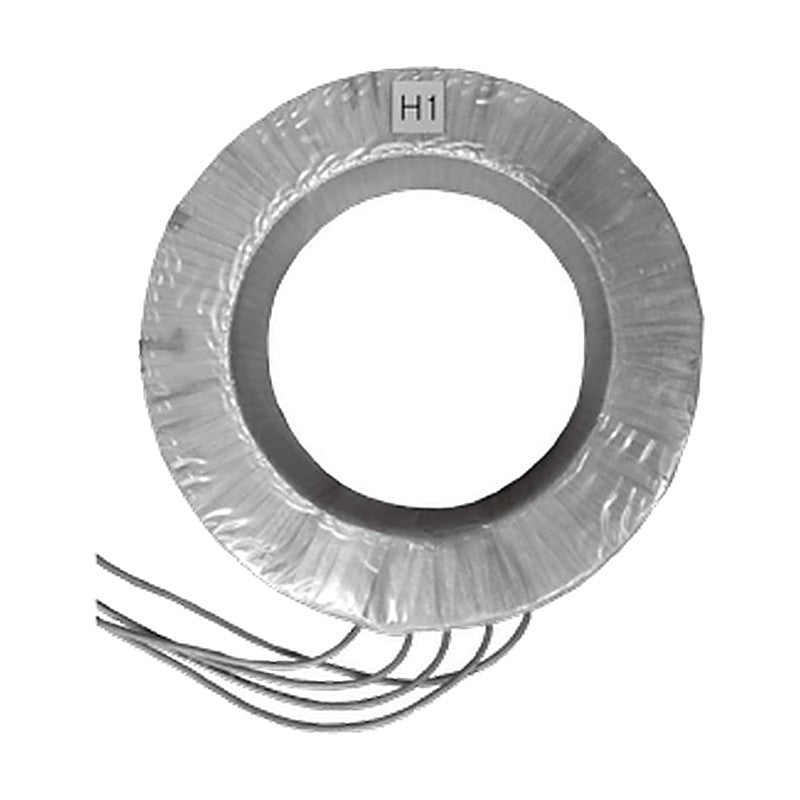

Woonyoung W01BCTC / W01BCTD / W01BCTE / W01BCTF Bushing CT for 25.8kV Utility Switchgear

Woonyoung W01BCTC / W01BCTD / W01BCTE / W01BCTF Bushing CT for 25.8kV Utility Switchgear

Toroidal bushing-type current transformer (0.72 kV insulation class) for 25.8 kV utility (KEPCO-spec) switchgear, used for metering and protection.

Key features

  • Toroidal multi-ratio design with tapped secondary leads
  • For 25.8 kV utility switchgear bushings
  • Designed for metering and protection
  • 0.72 kV insulation class, 60 Hz

Specifications

Insulation class 0.72 kV
Rated frequency 60 Hz
Standard IEC / IEEE / ES
Application 25.8 kV utility (KEPCO) switchgear
Dimension notes A = inner diameter, B = outer diameter, C = height (mm)
W01BCTC Rated current: 2000-1500-1200-800/5 A | Class: C200 / X200 | Burden: 50 VA | Short-time current: 40 kA/1 s | Dimensions A x B x C: 214 x 417 x 91 mm
W01BCTD Rated current: 2000-1000/5 A | Class: 1.2 | Burden: B-0.5 (12.5 VA) | Short-time current: 40 kA/1 s | Dimensions A x B x C: 320 x 415 x 76 mm
W01BCTE Rated current: 600-300/5 A | Class: 1.2 | Burden: B-0.5 (12.5 VA) | Short-time current: 40 kA/1 s | Dimensions A x B x C: 320 x 415 x 76 mm
W01BCTF Rated current: 600-400-200/5 A | Class: C200 / X200 | Burden: 50 VA | Short-time current: 40 kA/1 s | Dimensions A x B x C: 312 x 425 x 126 mm
Current TransformersWoonyoung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung W01BCTC / W01BCTD / W01BCTE / W01BCTF Bushing CT for 25.8kV Utility Switchgear

Brand Woonyoung·Current Transformers

Available part numbers (4)

W01BCTC, W01BCTD, W01BCTE, W01BCTF

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
W01BCTCRated current: 2000-1500-1200-800/5 A | Class: C200 / X200 | Burden: 50 VA | Short-time current: 40 kA/1 s | Dimensions A x B x C: 214 x 417 x 91 mm
W01BCTDRated current: 2000-1000/5 A | Class: 1.2 | Burden: B-0.5 (12.5 VA) | Short-time current: 40 kA/1 s | Dimensions A x B x C: 320 x 415 x 76 mm
W01BCTERated current: 600-300/5 A | Class: 1.2 | Burden: B-0.5 (12.5 VA) | Short-time current: 40 kA/1 s | Dimensions A x B x C: 320 x 415 x 76 mm
W01BCTFRated current: 600-400-200/5 A | Class: C200 / X200 | Burden: 50 VA | Short-time current: 40 kA/1 s | Dimensions A x B x C: 312 x 425 x 126 mm
