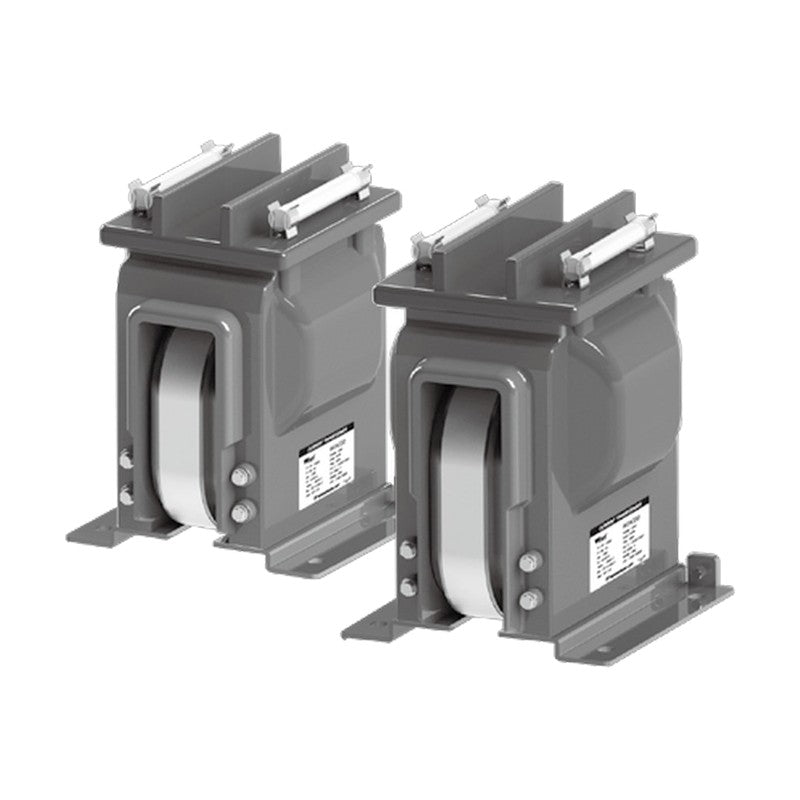

Indoor epoxy-resin cast double-pole unearthed voltage transformer connected line-to-line for systems up to 12 kV, stepping down primary voltage for metering instruments and protective relays.

Key features

  • Epoxy resin cast insulation for systems up to 12 kV
  • Stable insulation and electrical characteristics with good mechanical strength
  • Easy to maintain; available with single or multiple secondary taps
  • Designed for metering and/or protection, indoor service
  • Manufactured by automatic vacuum casting or APG

Specifications

Highest voltage for equipment (Um) 3.6 kV / 7.2 kV / 12 kV
Power-frequency withstand voltage (60 s) 10 kV / 20 kV / 28 kV
Lightning impulse withstand voltage (1.2/50 us) 40 kV / 60 kV / 75 kV
Rated frequency 50 Hz, 60 Hz, others on request
Rated primary voltage 11000 V
Rated secondary voltage 110 V, 220 V
Rated voltage factor 1.2 cont.
Thermal limit burden 700 VA
Insulation class (IEC 60085) E
Standard IEC / IEEE / KS, etc.
W12V2A Variant: A (see dimension drawing) | Highest voltage: 3.6 kV / 7.2 kV / 12 kV | Rated primary voltage: 11000 V | Weight: 24 kg
W12V2B Variant: B (see dimension drawing) | Highest voltage: 3.6 kV / 7.2 kV / 12 kV | Rated primary voltage: 11000 V | Weight: 24 kg
