Woonyoung WY Series Analog Panel Ammeters, DC and AC

Woonyoung WY Series Analog Panel Ammeters, DC and AC

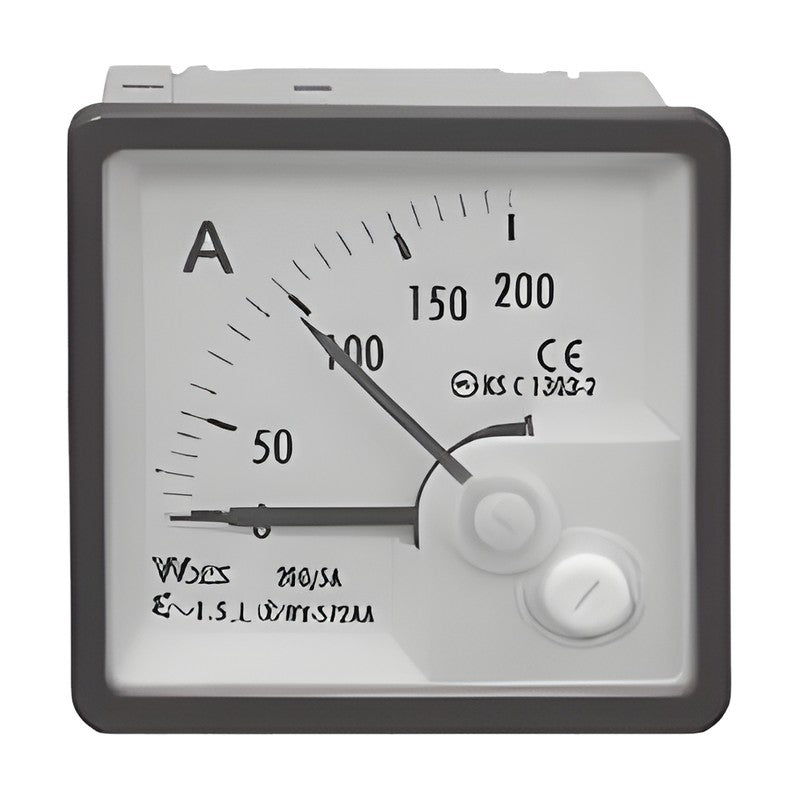

Switchboard analog ammeters for DC (50 mV shunt) and AC (1 A/5 A CT) circuits in right-angle, square DIN and wide-angle round cases from 50 mm to 110 mm.

Key features

  • DC moving-coil and AC moving-iron/rectifier versions
  • Right-angle, 90 deg square, 240 deg square and 240 deg round case styles
  • Sizes from 50 x 50 mm to 110 x 110 mm
  • Class 1.0 to 2.5 per model
  • Made to KS C 1303 and IEC 60051; KC and CE marked

Specifications

Standards KS C 1303-2,3,4,5; IEC 60051-2,3,4,5
Operating temperature -10 to +50 C
Storage temperature -25 to +60 C
Humidity 25-80% RH
Case color Munsell N1.5 black
Dielectric strength 2000 V for 1 min (circuit to case)
Insulation resistance 10 MOhm (circuit to case)
Movement Pivot and spring-mounted jewel
Ingress protection IP52 (IP54 option)
Certifications KC, CE
DC input options Direct 200-500 uA, 1-500 mA, 1-5 A, 1-30 A (internal shunt); DC 5-1000 A with external 50/100 mV shunt
AC input options Direct 1, 5, 10, 15, 20, 30 A; with CT 5 A or 1 A; 50 or 60 Hz; extension scale 150-500%
WY-R05AD Kind: DC ammeter | Size: 50 x 50 mm | Style: Right-angle (wide face) | Input: DC 50 mV (shunt) | Operating principle: Moving coil | Class: +/-2.5% | Burden: 50 mV drop | Weight: 100 g
WY-R06AD Kind: DC ammeter | Size: 60 x 60 mm | Style: Right-angle (wide face) | Input: DC 50 mV (shunt) | Operating principle: Moving coil | Class: +/-2.5% | Burden: 50 mV drop | Weight: 100 g
WY-R08AD Kind: DC ammeter | Size: 80 x 80 mm | Style: Right-angle (wide face) | Input: DC 50 mV (shunt) | Operating principle: Moving coil | Class: +/-2.5% | Burden: 50 mV drop | Weight: 300 g
WY-R10AD Kind: DC ammeter | Size: 100 x 80 mm | Style: Right-angle (wide face) | Input: DC 50 mV (shunt) | Operating principle: Moving coil | Class: +/-2.5% | Burden: 50 mV drop | Weight: 300 g
WY-S47AD Kind: DC ammeter | Size: 48 x 48 mm | Style: Square 90 deg (DIN) | Input: DC 50 mV (shunt) | Operating principle: Moving coil | Class: +/-1.5% | Burden: 50 mV drop | Weight: 100 g
WY-S72AD Kind: DC ammeter | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Input: DC 50 mV (shunt) | Operating principle: Moving coil | Class: +/-1.5% | Burden: 50 mV drop | Weight: 200 g
WY-S96AD Kind: DC ammeter | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Input: DC 50 mV (shunt) | Operating principle: Moving coil | Class: +/-1.5% | Burden: 50 mV drop | Weight: 280 g
WY-SH96AD Kind: DC ammeter | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Input: DC 50 mV (shunt) | Operating principle: Moving coil | Class: +/-1.0 / +/-1.5% | Burden: 50 mV drop | Weight: 380 g
WY-W08AD Kind: DC ammeter | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Input: DC 50 mV (shunt) | Operating principle: Moving coil | Class: +/-1.0 / +/-1.5% | Burden: 50 mV drop | Weight: 300 g
WY-W11AD Kind: DC ammeter | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Input: DC 50 mV (shunt) | Operating principle: Moving coil | Class: +/-1.0 / +/-1.5% | Burden: 50 mV drop | Weight: 470 g
WY-R05AA Kind: AC ammeter | Size: 50 x 50 mm | Style: Right-angle (wide face) | Input: 1 A or 5 A | Operating principle: Moving iron | Class: +/-2.5% | Burden: 1.0 VA | Weight: 160 g
WY-R06AA Kind: AC ammeter | Size: 60 x 60 mm | Style: Right-angle (wide face) | Input: 1 A or 5 A | Operating principle: Moving iron | Class: +/-2.5% | Burden: 1.0 VA | Weight: 160 g
WY-R08AA Kind: AC ammeter | Size: 80 x 80 mm | Style: Right-angle (wide face) | Input: 1 A or 5 A | Operating principle: Moving iron | Class: +/-2.5% | Burden: 1.0 VA | Weight: 160 g
WY-R10AA Kind: AC ammeter | Size: 100 x 80 mm | Style: Right-angle (wide face) | Input: 1 A or 5 A | Operating principle: Moving iron | Class: +/-2.5% | Burden: 1.0 VA | Weight: 160 g
WY-S47AA Kind: AC ammeter | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Input: 1 A or 5 A | Operating principle: Moving iron | Class: +/-1.5% | Burden: 1.0 VA | Weight: 120 g
WY-S72AA Kind: AC ammeter | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Input: 1 A or 5 A | Operating principle: Moving iron | Class: +/-1.5% | Burden: 1.0 VA | Weight: 160 g
WY-S96AA Kind: AC ammeter | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Input: 1 A or 5 A | Operating principle: Moving iron | Class: +/-1.5% | Burden: 1.0 VA | Weight: 300 g
WY-SH96AA Kind: AC ammeter | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Input: 1 A or 5 A | Operating principle: Rectifier | Class: +/-1.0 / +/-1.5% | Burden: 1.0 VA | Weight: 380 g
WY-W08AA Kind: AC ammeter | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Input: 1 A or 5 A | Operating principle: Rectifier | Class: +/-1.0 / +/-1.5% | Burden: 1.0 VA | Weight: 360 g
WY-W11AA Kind: AC ammeter | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Input: 1 A or 5 A | Operating principle: Rectifier | Class: +/-1.0 / +/-1.5% | Burden: 1.0 VA | Weight: 460 g
