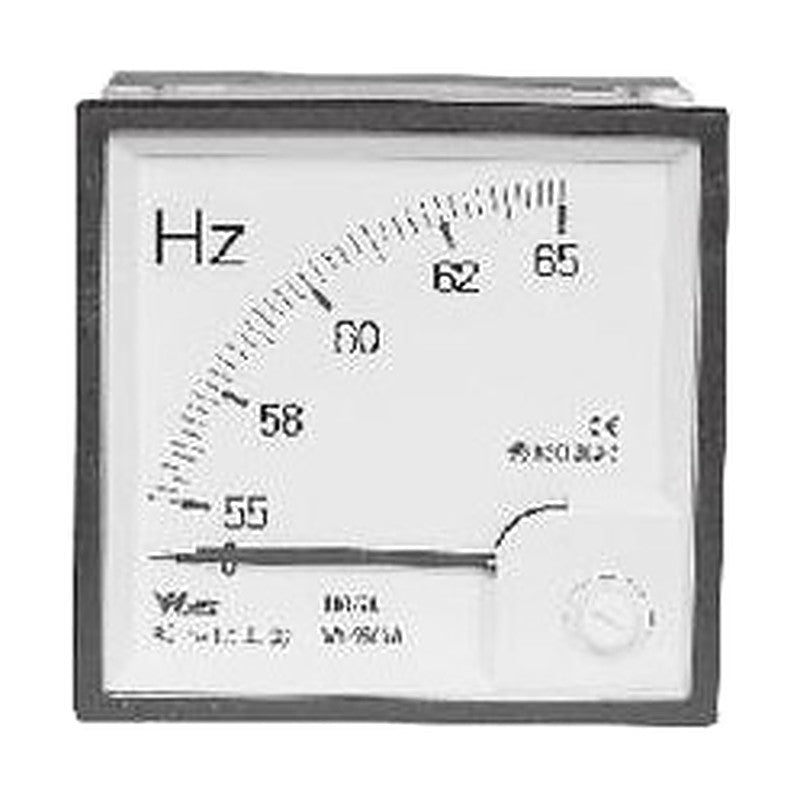

Woonyoung WY Series Analog Panel Frequency Meters

Woonyoung WY Series Analog Panel Frequency Meters

Transducer-type switchboard frequency meters for generator and line frequency measurement, input 110-220 V.

Key features

  • Transducer (pointer) type for generator frequency measurement
  • Standard scales 45-55 Hz or 55-65 Hz
  • Input 110 V to 220 V
  • Class 1.0; burden 2.0 VA
  • Cases from 47 to 110 mm

Specifications

Standards KS C 1303-2,3,4,5; IEC 60051-2,3,4,5
Operating temperature -10 to +50 C
Storage temperature -25 to +60 C
Humidity 25-80% RH
Case color Munsell N1.5 black
Dielectric strength 2000 V for 1 min (circuit to case)
Insulation resistance 10 MOhm (circuit to case)
Movement Pivot and spring-mounted jewel
Ingress protection IP52 (IP54 option)
Certifications KC, CE
Input 110 V to 220 V
Class +/-1.0%
WY-R06H Size: 60 x 60 mm | Style: Right-angle (wide face) | Transducer: External | Weight: 160 g
WY-R08H Size: 80 x 80 mm | Style: Right-angle (wide face) | Transducer: External | Weight: 170 g
WY-R10H Size: 100 x 80 mm | Style: Right-angle (wide face) | Transducer: External | Weight: 180 g
WY-S47H Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Transducer: External | Weight: 130 g
WY-S72H Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Transducer: External | Weight: 140 g
WY-S96H Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Transducer: External | Weight: 200 g
WY-SH96H Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Transducer: Internal | Weight: 200 g
WY-W08H Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Transducer: Internal | Weight: 270 g
WY-W11H Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Transducer: Internal | Weight: 470 g
Analog Panel MetersWoonyoung
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WY Series Analog Panel Frequency Meters

Brand Woonyoung·Analog Panel Meters

Available part numbers (9)

WY-R06H, WY-R08H, WY-R10H, WY-S47H, WY-S72H, WY-S96H, WY-SH96H, WY-W08H, WY-W11H

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY-R06HSize: 60 x 60 mm | Style: Right-angle (wide face) | Transducer: External | Weight: 160 g
WY-R08HSize: 80 x 80 mm | Style: Right-angle (wide face) | Transducer: External | Weight: 170 g
WY-R10HSize: 100 x 80 mm | Style: Right-angle (wide face) | Transducer: External | Weight: 180 g
WY-S47HSize: 47 x 47 mm | Style: Square 90 deg (DIN) | Transducer: External | Weight: 130 g
WY-S72HSize: 72 x 72 mm | Style: Square 90 deg (DIN) | Transducer: External | Weight: 140 g
WY-S96HSize: 96 x 96 mm | Style: Square 90 deg (DIN) | Transducer: External | Weight: 200 g
WY-SH96HSize: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Transducer: Internal | Weight: 200 g
WY-W08HSize: 80 x 80 mm | Style: Wide-angle round 240 deg | Transducer: Internal | Weight: 270 g
WY-W11HSize: 110 x 110 mm | Style: Wide-angle round 240 deg | Transducer: Internal | Weight: 470 g
