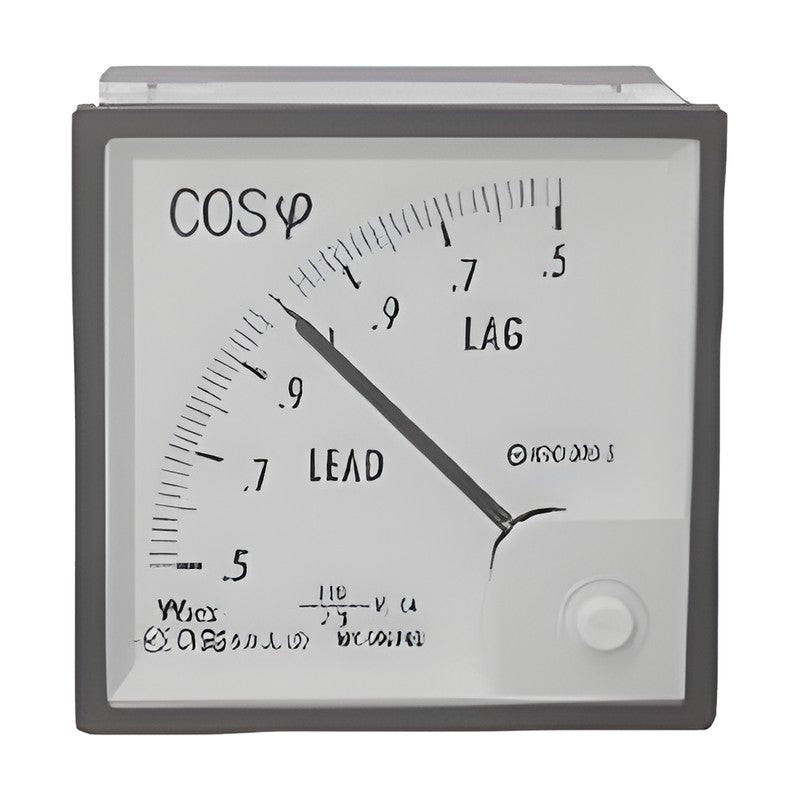

Woonyoung WY Series Analog Panel Power Factor Meters (1P2W to 3P4W)

Woonyoung WY Series Analog Panel Power Factor Meters (1P2W to 3P4W)

Transducer-type switchboard power factor meters, standard scale lead 0.5 - 1 - lag 0.5, for single- and three-phase systems.

Key features

  • Standard scale lead 0.5 - 1 - lag 0.5
  • Single-phase 2/3-wire and three-phase 3/4-wire versions
  • Balanced and unbalanced (U) versions for three-phase
  • External transducer, or built-in on SH96/W11 (T suffix = external)
  • Operates within +/-10% of rated voltage and 20-100% of rated current

Specifications

Standards KS C 1303-2,3,4,5; IEC 60051-2,3,4,5
Operating temperature -10 to +50 C
Storage temperature -25 to +60 C
Humidity 25-80% RH
Case color Munsell N1.5 black
Dielectric strength 2000 V for 1 min (circuit to case)
Insulation resistance 10 MOhm (circuit to case)
Movement Pivot and spring-mounted jewel
Ingress protection IP52 (IP54 option)
Certifications KC, CE
Operating principle Transducer type (moving coil with external or internal transducer)
Burden Voltage 0.5 VA, current 0.5 VA
WY-R06P Wiring: 1P2W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 630 g
WY-R08P Wiring: 1P2W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 660 g
WY-R10P Wiring: 1P2W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 670 g
WY-S47P Wiring: 1P2W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 600 g
WY-S72P Wiring: 1P2W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 610 g
WY-S96P1 Wiring: 1P2W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 680 g
WY-SH96P1 Wiring: 1P2W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: Internal | Weight: 680 g
WY-SH96P1T Wiring: 1P2W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 680 g
WY-W08P1 Wiring: 1P2W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 750 g
WY-W11P1 Wiring: 1P2W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: Internal | Weight: 760 g
WY-W11P1T Wiring: 1P2W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 760 g
WY-R06P2 Wiring: 1P3W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 110 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 630 g
WY-R08P2 Wiring: 1P3W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 660 g
WY-R10P2 Wiring: 1P3W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 670 g
WY-S47P2 Wiring: 1P3W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 600 g
WY-S72P2 Wiring: 1P3W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 610 g
WY-S96P2 Wiring: 1P3W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 680 g
WY-SH96P2 Wiring: 1P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-5.0% | Transducer: Internal | Weight: 680 g
WY-SH96P2T Wiring: 1P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 680 g
WY-W08P2 Wiring: 1P3W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 110 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 750 g
WY-W11P2 Wiring: 1P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V; 5 A or 1 A | Class: +/-5.0% | Transducer: Internal | Weight: 760 g
WY-W11P2T Wiring: 1P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 760 g
WY-R06P3 Wiring: 3P3W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 760 g | Load: Balanced
WY-R06P3U Wiring: 3P3W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 760 g | Load: Unbalanced
WY-R08P3 Wiring: 3P3W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 790 g | Load: Balanced
WY-R08P3U Wiring: 3P3W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 790 g | Load: Unbalanced
WY-R10P3 Wiring: 3P3W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 800 g | Load: Balanced
WY-R10P3U Wiring: 3P3W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 800 g | Load: Unbalanced
WY-S47P3 Wiring: 3P3W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 730 g | Load: Balanced
WY-S47P3U Wiring: 3P3W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 730 g | Load: Unbalanced
WY-S72P3 Wiring: 3P3W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 740 g | Load: Balanced
WY-S72P3U Wiring: 3P3W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 740 g | Load: Unbalanced
WY-S96P3 Wiring: 3P3W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 830 g | Load: Balanced
WY-S96P3U Wiring: 3P3W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 830 g | Load: Unbalanced
WY-SH96P3 Wiring: 3P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: Internal | Weight: 830 g | Load: Balanced
WY-SH96P3T Wiring: 3P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 830 g | Load: Balanced
WY-SH96P3U Wiring: 3P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: Internal | Weight: 830 g | Load: Unbalanced
WY-SH96P3UT Wiring: 3P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 830 g | Load: Unbalanced
WY-W08P3 Wiring: 3P3W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 900 g | Load: Balanced
WY-W08P3U Wiring: 3P3W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 900 g | Load: Unbalanced
WY-W11P3 Wiring: 3P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: Internal | Weight: 920 g | Load: Balanced
WY-W11P3T Wiring: 3P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 920 g | Load: Balanced
WY-W11P3U Wiring: 3P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: Internal | Weight: 920 g | Load: Unbalanced
WY-W11P3UT Wiring: 3P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 920 g | Load: Unbalanced
WY-R06P4 Wiring: 3P4W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 760 g | Load: Balanced
WY-R06P4U Wiring: 3P4W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 760 g | Load: Unbalanced
WY-R08P4 Wiring: 3P4W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 790 g | Load: Balanced
WY-R08P4U Wiring: 3P4W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 790 g | Load: Unbalanced
WY-R10P4 Wiring: 3P4W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 800 g | Load: Balanced
WY-R10P4U Wiring: 3P4W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 800 g | Load: Unbalanced
WY-S47P4 Wiring: 3P4W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 730 g | Load: Balanced
WY-S47P4U Wiring: 3P4W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 730 g | Load: Unbalanced
WY-S72P4 Wiring: 3P4W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 740 g | Load: Balanced
WY-S72P4U Wiring: 3P4W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 740 g | Load: Unbalanced
WY-S96P4 Wiring: 3P4W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 830 g | Load: Balanced
WY-S96P4U Wiring: 3P4W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 830 g | Load: Unbalanced
WY-SH96P4 Wiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: Internal | Weight: 830 g | Load: Balanced
WY-SH96P4T Wiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 830 g | Load: Balanced
WY-SH96P4U Wiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: Internal | Weight: 830 g | Load: Unbalanced
WY-SH96P4UT Wiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 830 g | Load: Unbalanced
WY-W08P4 Wiring: 3P4W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 900 g | Load: Balanced
WY-W08P4U Wiring: 3P4W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 900 g | Load: Unbalanced
WY-W11P4 Wiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: Internal | Weight: 920 g | Load: Balanced
WY-W11P4T Wiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 920 g | Load: Balanced
WY-W11P4U Wiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: Internal | Weight: 920 g | Load: Unbalanced
WY-W11P4UT Wiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-5.0% | Transducer: External | Weight: 920 g | Load: Unbalanced
Analog Panel MetersWoonyoung
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WY Series Analog Panel Power Factor Meters (1P2W to 3P4W)

Brand Woonyoung·Analog Panel Meters

Available part numbers (66)

WY-R06P, WY-R08P, WY-R10P, WY-S47P, WY-S72P, WY-S96P1, WY-SH96P1, WY-SH96P1T, WY-W08P1, WY-W11P1 + 56 more — see full table ↓
