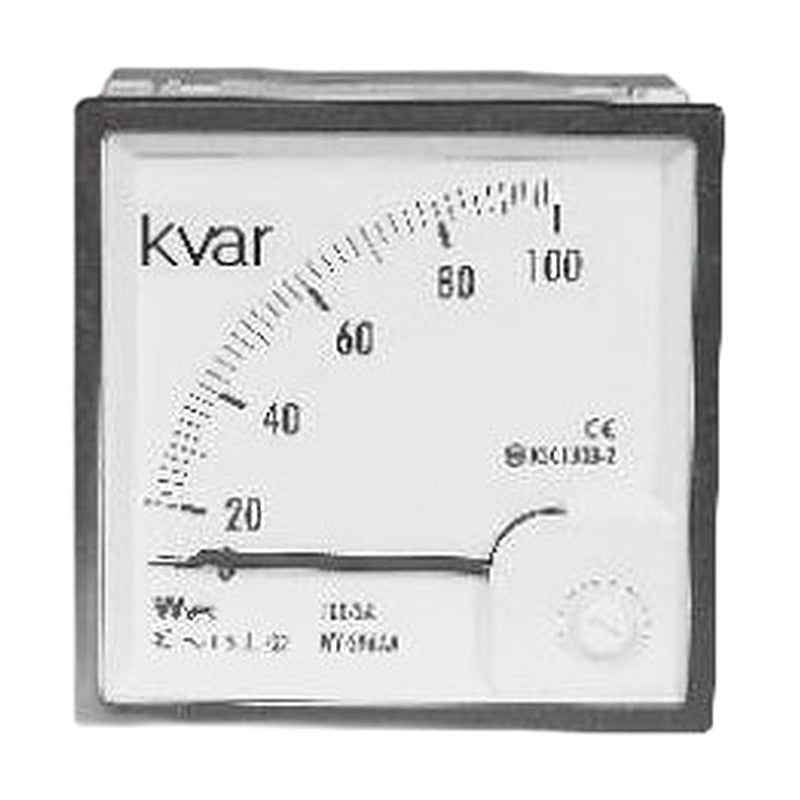

Woonyoung WY Series Analog Panel var Meters (1P2W to 3P4W)

Woonyoung WY Series Analog Panel var Meters (1P2W to 3P4W)

Transducer-type switchboard reactive-power (var) meters for single-phase and three-phase systems, with external or built-in transducer.

Key features

  • Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire and 3-phase 4-wire versions
  • External transducer, or built-in transducer on SH96/W11 (T suffix = external)
  • Balanced and unbalanced (U) versions for 3P4W
  • Cases from 47 to 110 mm
  • KC and CE marked

Specifications

Standards KS C 1303-2,3,4,5; IEC 60051-2,3,4,5
Operating temperature -10 to +50 C
Storage temperature -25 to +60 C
Humidity 25-80% RH
Case color Munsell N1.5 black
Dielectric strength 2000 V for 1 min (circuit to case)
Insulation resistance 10 MOhm (circuit to case)
Movement Pivot and spring-mounted jewel
Ingress protection IP52 (IP54 option)
Certifications KC, CE
Operating principle Transducer type (moving coil with external or internal transducer)
Burden Voltage 0.5 VA, current 0.5 VA
WY-R06R1 Wiring: 1P2W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 630 g
WY-R08R1 Wiring: 1P2W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 660 g
WY-R10R1 Wiring: 1P2W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 670 g
WY-S47R1 Wiring: 1P2W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 600 g
WY-S72R1 Wiring: 1P2W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 610 g
WY-S96R1 Wiring: 1P2W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 680 g
WY-SH96R1 Wiring: 1P2W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 680 g
WY-SH96R1T Wiring: 1P2W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 680 g
WY-W08R1 Wiring: 1P2W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 750 g
WY-W11R1 Wiring: 1P2W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 760 g
WY-W11R1T Wiring: 1P2W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 760 g
WY-R06R2 Wiring: 1P3W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 110 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 630 g
WY-R08R2 Wiring: 1P3W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 660 g
WY-R10R2 Wiring: 1P3W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 670 g
WY-S47R2 Wiring: 1P3W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 600 g
WY-S72R2 Wiring: 1P3W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 610 g
WY-S96R2 Wiring: 1P3W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 680 g
WY-SH96R2 Wiring: 1P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 680 g
WY-SH96R2T Wiring: 1P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 680 g
WY-W08R2 Wiring: 1P3W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 750 g
WY-W11R2 Wiring: 1P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 760 g
WY-W11R2T Wiring: 1P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 760 g
WY-R06R3 Wiring: 3P3W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 730 g | Load: Unbalanced
WY-R08R3 Wiring: 3P3W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 760 g | Load: Unbalanced
WY-R10R3 Wiring: 3P3W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 770 g | Load: Unbalanced
WY-S47R3 Wiring: 3P3W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 700 g | Load: Unbalanced
WY-S72R3 Wiring: 3P3W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 710 g | Load: Unbalanced
WY-S96R3 Wiring: 3P3W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 730 g | Load: Unbalanced
WY-SH96R3 Wiring: 3P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 730 g | Load: Unbalanced
WY-SH96R3T Wiring: 3P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 730 g | Load: Unbalanced
WY-W08R3 Wiring: 3P3W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 780 g | Load: Unbalanced
WY-W11R3 Wiring: 3P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 800 g | Load: Unbalanced
WY-W11R3T Wiring: 3P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 800 g | Load: Unbalanced
WY-R06R4 Wiring: 3P4W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 760 g | Load: Balanced
WY-R06R4U Wiring: 3P4W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 760 g | Load: Unbalanced
WY-R08R4 Wiring: 3P4W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 790 g | Load: Balanced
WY-R08R4U Wiring: 3P4W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 790 g | Load: Unbalanced
WY-R10R4 Wiring: 3P4W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 800 g | Load: Balanced
WY-R10R4U Wiring: 3P4W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 800 g | Load: Unbalanced
WY-S47R4 Wiring: 3P4W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 730 g | Load: Balanced
WY-S47R4U Wiring: 3P4W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 730 g | Load: Unbalanced
WY-S72R4 Wiring: 3P4W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 740 g | Load: Balanced
WY-S72R4U Wiring: 3P4W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 740 g | Load: Unbalanced
WY-S96R4 Wiring: 3P4W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 830 g | Load: Balanced
WY-S96R4U Wiring: 3P4W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 830 g | Load: Unbalanced
WY-SH96R4 Wiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 830 g | Load: Balanced
WY-SH96R4T Wiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 830 g | Load: Balanced
WY-SH96R4U Wiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 830 g | Load: Unbalanced
WY-SH96R4UT Wiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 830 g | Load: Unbalanced
WY-W08R4 Wiring: 3P4W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 900 g | Load: Balanced
WY-W08R4U Wiring: 3P4W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 900 g | Load: Unbalanced
WY-W11R4 Wiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 920 g | Load: Balanced
WY-W11R4T Wiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 920 g | Load: Balanced
WY-W11R4U Wiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 920 g | Load: Unbalanced
WY-W11R4UT Wiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 920 g | Load: Unbalanced
Analog Panel MetersWoonyoung
55 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WY Series Analog Panel var Meters (1P2W to 3P4W)

Brand Woonyoung·Analog Panel Meters

Available part numbers (55)

WY-R06R1, WY-R08R1, WY-R10R1, WY-S47R1, WY-S72R1, WY-S96R1, WY-SH96R1, WY-SH96R1T, WY-W08R1, WY-W11R1 + 45 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
