Woonyoung WY Series Analog Panel Voltmeters, DC and AC

Woonyoung WY Series Analog Panel Voltmeters, DC and AC

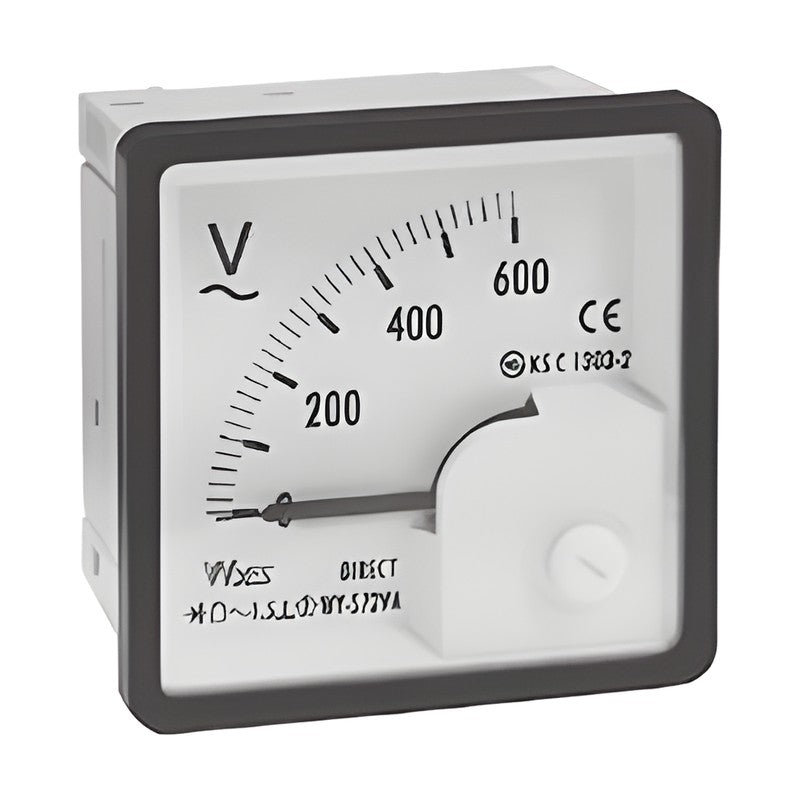

Switchboard analog voltmeters for DC (50 mV-750 V) and AC (10-600 V, or 110/220 V via VT) circuits in right-angle, square DIN and wide-angle round cases.

Key features

  • DC moving-coil and AC rectifier versions
  • Right-angle, 90 deg square, 240 deg square and 240 deg round case styles
  • Sizes from 50 x 50 mm to 110 x 110 mm
  • Class 1.0 to 2.5 per model
  • KC and CE marked

Specifications

Standards KS C 1303-2,3,4,5; IEC 60051-2,3,4,5
Operating temperature -10 to +50 C
Storage temperature -25 to +60 C
Humidity 25-80% RH
Case color Munsell N1.5 black
Dielectric strength 2000 V for 1 min (circuit to case)
Insulation resistance 10 MOhm (circuit to case)
Movement Pivot and spring-mounted jewel
Ingress protection IP52 (IP54 option)
Certifications KC, CE
DC input options Direct 50/60/100 mV, 1-750 V (internal multiplier); over 750 V with external multiplier (DC 1.0 mA)
AC input options Direct 10-600 V; with VT 110/220 V; 50 or 60 Hz; scale AC 150 V or 300 V
WY-R05VD Kind: DC voltmeter | Size: 50 x 50 mm | Style: Right-angle (wide face) | Input: DC 50 mV to 750 V | Operating principle: Moving coil | Class: +/-2.5% | Burden: 1 kOhm/V | Weight: 100 g
WY-R06VD Kind: DC voltmeter | Size: 60 x 60 mm | Style: Right-angle (wide face) | Input: DC 50 mV to 750 V | Operating principle: Moving coil | Class: +/-2.5% | Burden: 1 kOhm/V | Weight: 100 g
WY-R08VD Kind: DC voltmeter | Size: 80 x 80 mm | Style: Right-angle (wide face) | Input: DC 50 mV to 750 V | Operating principle: Moving coil | Class: +/-2.5% | Burden: 1 kOhm/V | Weight: 160 g
WY-R10VD Kind: DC voltmeter | Size: 100 x 80 mm | Style: Right-angle (wide face) | Input: DC 50 mV to 750 V | Operating principle: Moving coil | Class: +/-2.5% | Burden: 1 kOhm/V | Weight: 160 g
WY-S47VD Kind: DC voltmeter | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Input: DC 50 mV to 750 V | Operating principle: Moving coil | Class: +/-1.5% | Burden: 1 kOhm/V | Weight: 120 g
WY-S72VD Kind: DC voltmeter | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Input: DC 50 mV to 750 V | Operating principle: Moving coil | Class: +/-1.5% | Burden: 1 kOhm/V | Weight: 160 g
WY-S96VD Kind: DC voltmeter | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Input: DC 50 mV to 750 V | Operating principle: Moving coil | Class: +/-1.5% | Burden: 1 kOhm/V | Weight: 300 g
WY-SH96VD Kind: DC voltmeter | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Input: DC 50 mV to 750 V | Operating principle: Moving coil | Class: +/-1.0 / +/-1.5% | Burden: 1 kOhm/V | Weight: 380 g
WY-W08VD Kind: DC voltmeter | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Input: DC 50 mV to 750 V | Operating principle: Moving coil | Class: +/-1.0 / +/-1.5% | Burden: 1 kOhm/V | Weight: 300 g
WY-W11VD Kind: DC voltmeter | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Input: DC 50 mV to 750 V | Operating principle: Moving coil | Class: +/-1.0 / +/-1.5% | Burden: 1 kOhm/V | Weight: 400 g
WY-R05VA Kind: AC voltmeter | Size: 50 x 50 mm | Style: Right-angle (wide face) | Input: AC 10 to 600 V | Operating principle: Rectifier | Class: +/-2.5% | Burden: 0.5 VA | Weight: 100 g
WY-R06VA Kind: AC voltmeter | Size: 60 x 60 mm | Style: Right-angle (wide face) | Input: AC 10 to 600 V | Operating principle: Rectifier | Class: +/-2.5% | Burden: 0.5 VA | Weight: 100 g
WY-R08VA Kind: AC voltmeter | Size: 80 x 80 mm | Style: Right-angle (wide face) | Input: AC 10 to 600 V | Operating principle: Rectifier | Class: +/-2.5% | Burden: 0.5 VA | Weight: 160 g
WY-R10VA Kind: AC voltmeter | Size: 100 x 80 mm | Style: Right-angle (wide face) | Input: AC 10 to 600 V | Operating principle: Rectifier | Class: +/-2.5% | Burden: 0.5 VA | Weight: 160 g
WY-S47VA Kind: AC voltmeter | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Input: AC 10 to 600 V | Operating principle: Rectifier | Class: +/-1.5% | Burden: 0.5 VA | Weight: 120 g
WY-S72VA Kind: AC voltmeter | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Input: AC 10 to 600 V | Operating principle: Rectifier | Class: +/-1.5% | Burden: 0.5 VA | Weight: 160 g
WY-S96VA Kind: AC voltmeter | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Input: AC 10 to 600 V | Operating principle: Rectifier | Class: +/-1.5% | Burden: 0.5 VA | Weight: 300 g
WY-SH96VA Kind: AC voltmeter | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Input: AC 10 to 600 V | Operating principle: Rectifier | Class: +/-1.0 / +/-1.5% | Burden: 0.5 VA | Weight: 380 g
WY-W08VA Kind: AC voltmeter | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Input: AC 10 to 600 V | Operating principle: Rectifier | Class: +/-1.0 / +/-1.5% | Burden: 0.5 VA | Weight: 280 g
WY-W11VA Kind: AC voltmeter | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Input: AC 10 to 600 V | Operating principle: Rectifier | Class: +/-1.0 / +/-1.5% | Burden: 0.5 VA | Weight: 400 g
