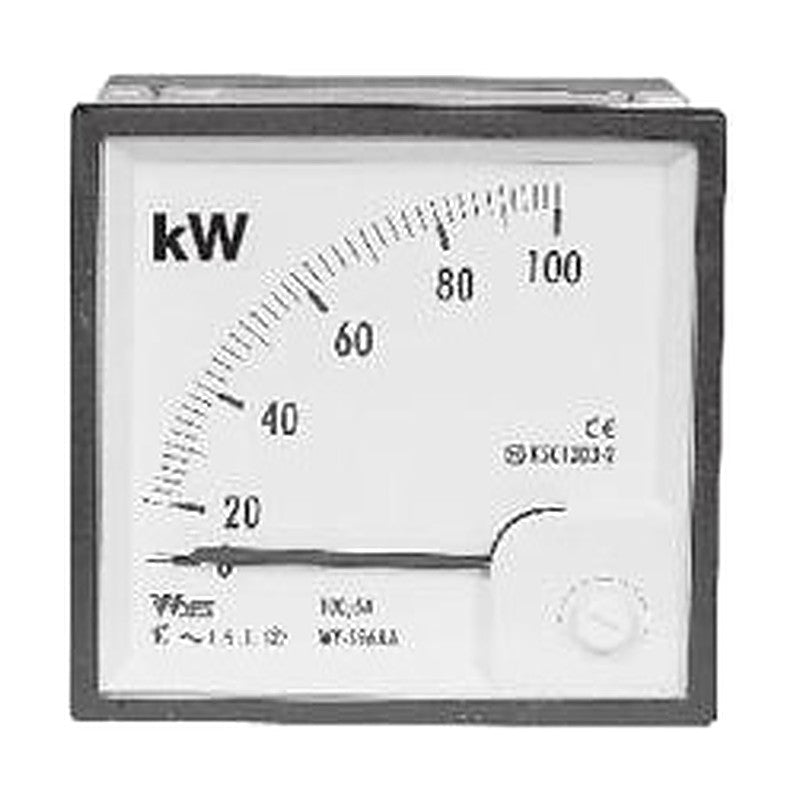

Woonyoung WY Series Analog Panel Watt Meters (1P2W to 3P4W)

Woonyoung WY Series Analog Panel Watt Meters (1P2W to 3P4W)

Transducer-type switchboard watt meters for single-phase 2/3-wire and three-phase 3/4-wire systems, with external or built-in transducer.

Key features

  • Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire and 3-phase 4-wire versions
  • External transducer, or built-in transducer on SH96/W11 (T suffix = external)
  • Balanced and unbalanced (U) load versions for 3P4W
  • Right-angle, square DIN and wide-angle round cases, 47 to 110 mm
  • Calibrating watt = max. scale / (PT ratio x CT ratio)

Specifications

Standards KS C 1303-2,3,4,5; IEC 60051-2,3,4,5
Operating temperature -10 to +50 C
Storage temperature -25 to +60 C
Humidity 25-80% RH
Case color Munsell N1.5 black
Dielectric strength 2000 V for 1 min (circuit to case)
Insulation resistance 10 MOhm (circuit to case)
Movement Pivot and spring-mounted jewel
Ingress protection IP52 (IP54 option)
Certifications KC, CE
Operating principle Transducer type (moving coil with external or internal transducer)
Burden Voltage 0.5 VA, current 0.5 VA
WY-R06W1 Wiring: 1P2W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 630 g
WY-R08W1 Wiring: 1P2W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 660 g
WY-R10W1 Wiring: 1P2W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 670 g
WY-S47W1 Wiring: 1P2W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 600 g
WY-S72W1 Wiring: 1P2W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 610 g
WY-S96W1 Wiring: 1P2W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 680 g
WY-SH96W1 Wiring: 1P2W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 680 g
WY-SH96W1T Wiring: 1P2W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 680 g
WY-W08W1 Wiring: 1P2W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 750 g
WY-W11W1 Wiring: 1P2W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 760 g
WY-W11W1T Wiring: 1P2W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 760 g
WY-R06W2 Wiring: 1P3W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 110 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 630 g
WY-R08W2 Wiring: 1P3W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 660 g
WY-R10W2 Wiring: 1P3W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 670 g
WY-S47W2 Wiring: 1P3W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 600 g
WY-S72W2 Wiring: 1P3W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 610 g
WY-S96W2 Wiring: 1P3W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 680 g
WY-SH96W2 Wiring: 1P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 680 g
WY-SH96W2T Wiring: 1P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 680 g
WY-W08W2 Wiring: 1P3W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 750 g
WY-W11W2 Wiring: 1P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 760 g
WY-W11W2T Wiring: 1P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 760 g
WY-R06W3 Wiring: 3P3W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 730 g | Load: Unbalanced
WY-R08W3 Wiring: 3P3W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 760 g | Load: Unbalanced
WY-R10W3 Wiring: 3P3W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 770 g | Load: Unbalanced
WY-S47W3 Wiring: 3P3W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 700 g | Load: Unbalanced
WY-S72W3 Wiring: 3P3W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 710 g | Load: Unbalanced
WY-S96W3 Wiring: 3P3W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 750 g | Load: Unbalanced
WY-SH96W3 Wiring: 3P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 750 g | Load: Unbalanced
WY-SH96W3T Wiring: 3P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 750 g | Load: Unbalanced
WY-W08W3 Wiring: 3P3W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 780 g | Load: Unbalanced
WY-W11W3 Wiring: 3P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 800 g | Load: Unbalanced
WY-W11W3T Wiring: 3P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 800 g | Load: Unbalanced
WY-R06W4 Wiring: 3P4W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 760 g | Load: Balanced
WY-R06W4U Wiring: 3P4W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 760 g | Load: Unbalanced
WY-R08W4 Wiring: 3P4W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 790 g | Load: Balanced
WY-R08W4U Wiring: 3P4W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 790 g | Load: Unbalanced
WY-R10W4 Wiring: 3P4W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 800 g | Load: Balanced
WY-R10W4U Wiring: 3P4W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 800 g | Load: Unbalanced
WY-S47W4 Wiring: 3P4W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 730 g | Load: Balanced
WY-S47W4U Wiring: 3P4W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 730 g | Load: Unbalanced
WY-S72W4 Wiring: 3P4W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 740 g | Load: Balanced
WY-S72W4U Wiring: 3P4W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 740 g | Load: Unbalanced
WY-S96W4 Wiring: 3P4W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 850 g | Load: Balanced
WY-S96W4U Wiring: 3P4W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 850 g | Load: Unbalanced
WY-SH96W4 Wiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 850 g | Load: Balanced
WY-SH96W4T Wiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 850 g | Load: Balanced
WY-SH96W4U Wiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 850 g | Load: Unbalanced
WY-SH96W4UT Wiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 850 g | Load: Unbalanced
WY-W08W4 Wiring: 3P4W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 900 g | Load: Balanced
WY-W08W4U Wiring: 3P4W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 900 g | Load: Unbalanced
WY-W11W4 Wiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 920 g | Load: Balanced
WY-W11W4T Wiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 920 g | Load: Balanced
WY-W11W4U Wiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 920 g | Load: Unbalanced
WY-W11W4UT Wiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 920 g | Load: Unbalanced
Analog Panel MetersWoonyoung
55 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WY Series Analog Panel Watt Meters (1P2W to 3P4W)

Brand Woonyoung·Analog Panel Meters

Available part numbers (55)

WY-R06W1, WY-R08W1, WY-R10W1, WY-S47W1, WY-S72W1, WY-S96W1, WY-SH96W1, WY-SH96W1T, WY-W08W1, WY-W11W1 + 45 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WY-R06W1Wiring: 1P2W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 630 g
WY-R08W1Wiring: 1P2W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 660 g
WY-R10W1Wiring: 1P2W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 670 g
WY-S47W1Wiring: 1P2W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 600 g
WY-S72W1Wiring: 1P2W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 610 g
WY-S96W1Wiring: 1P2W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 680 g
WY-SH96W1Wiring: 1P2W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 680 g
WY-SH96W1TWiring: 1P2W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 680 g
WY-W08W1Wiring: 1P2W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 750 g
WY-W11W1Wiring: 1P2W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 760 g
WY-W11W1TWiring: 1P2W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 760 g
WY-R06W2Wiring: 1P3W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 110 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 630 g
WY-R08W2Wiring: 1P3W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 660 g
WY-R10W2Wiring: 1P3W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 670 g
WY-S47W2Wiring: 1P3W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 600 g
WY-S72W2Wiring: 1P3W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 610 g
WY-S96W2Wiring: 1P3W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 680 g
WY-SH96W2Wiring: 1P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 680 g
WY-SH96W2TWiring: 1P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 680 g
WY-W08W2Wiring: 1P3W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 750 g
WY-W11W2Wiring: 1P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 760 g
WY-W11W2TWiring: 1P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 760 g
WY-R06W3Wiring: 3P3W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 730 g | Load: Unbalanced
WY-R08W3Wiring: 3P3W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 760 g | Load: Unbalanced
WY-R10W3Wiring: 3P3W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 770 g | Load: Unbalanced
WY-S47W3Wiring: 3P3W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 700 g | Load: Unbalanced
WY-S72W3Wiring: 3P3W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 710 g | Load: Unbalanced
WY-S96W3Wiring: 3P3W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 750 g | Load: Unbalanced
WY-SH96W3Wiring: 3P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 750 g | Load: Unbalanced
WY-SH96W3TWiring: 3P3W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 750 g | Load: Unbalanced
WY-W08W3Wiring: 3P3W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 780 g | Load: Unbalanced
WY-W11W3Wiring: 3P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 800 g | Load: Unbalanced
WY-W11W3TWiring: 3P3W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 110 V or 220 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 800 g | Load: Unbalanced
WY-R06W4Wiring: 3P4W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 760 g | Load: Balanced
WY-R06W4UWiring: 3P4W | Size: 60 x 60 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 760 g | Load: Unbalanced
WY-R08W4Wiring: 3P4W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 790 g | Load: Balanced
WY-R08W4UWiring: 3P4W | Size: 80 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 790 g | Load: Unbalanced
WY-R10W4Wiring: 3P4W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 800 g | Load: Balanced
WY-R10W4UWiring: 3P4W | Size: 100 x 80 mm | Style: Right-angle (wide face) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-2.5% | Transducer: External | Weight: 800 g | Load: Unbalanced
WY-S47W4Wiring: 3P4W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 730 g | Load: Balanced
WY-S47W4UWiring: 3P4W | Size: 47 x 47 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 730 g | Load: Unbalanced
WY-S72W4Wiring: 3P4W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 740 g | Load: Balanced
WY-S72W4UWiring: 3P4W | Size: 72 x 72 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 740 g | Load: Unbalanced
WY-S96W4Wiring: 3P4W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 850 g | Load: Balanced
WY-S96W4UWiring: 3P4W | Size: 96 x 96 mm | Style: Square 90 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 850 g | Load: Unbalanced
WY-SH96W4Wiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 850 g | Load: Balanced
WY-SH96W4TWiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 850 g | Load: Balanced
WY-SH96W4UWiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 850 g | Load: Unbalanced
WY-SH96W4UTWiring: 3P4W | Size: 96 x 96 mm | Style: Square wide-angle 240 deg (DIN) | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 850 g | Load: Unbalanced
WY-W08W4Wiring: 3P4W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 900 g | Load: Balanced
WY-W08W4UWiring: 3P4W | Size: 80 x 80 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 900 g | Load: Unbalanced
WY-W11W4Wiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 920 g | Load: Balanced
WY-W11W4TWiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 920 g | Load: Balanced
WY-W11W4UWiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: Internal | Weight: 920 g | Load: Unbalanced
WY-W11W4UTWiring: 3P4W | Size: 110 x 110 mm | Style: Wide-angle round 240 deg | Rated input: 190/sqrt3 V or 380/sqrt3 V; 5 A or 1 A | Class: +/-1.5% | Transducer: External | Weight: 920 g | Load: Unbalanced

Need a different model, or a part not listed here? Send us your parts list →
