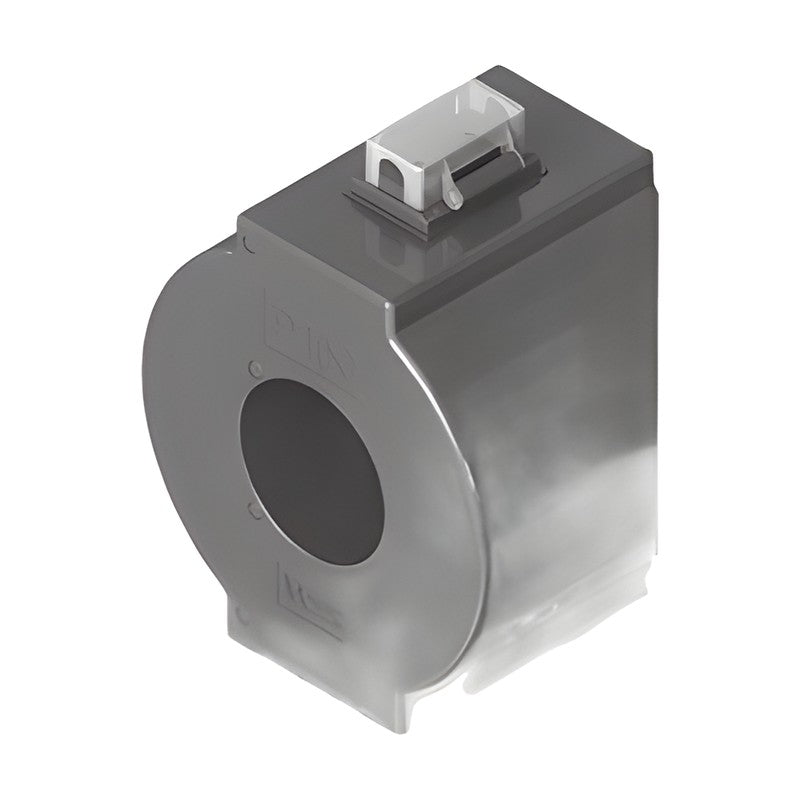

Woonyoung WYCR-64 / WYCR-64R Neutral Current Transformer, 100-2000 A

Woonyoung WYCR-64 / WYCR-64R Neutral Current Transformer, 100-2000 A

Epoxy-molded ring-type neutral current transformer with 65 mm hole, for metering (class 1.0) or protection relays (5P) on the neutral conductor.

Key features

  • Ring type CT, epoxy vacuum molded insulation
  • Metering version (class 1.0) and relay version 'R' (5P)
  • Suits neutral-line connection to a protection relay
  • Protective terminal cover; easy panel mounting kit
  • KC (KS) and CE marked

Specifications

Standards KS C 1706, IEC 61869-2, JEC 1201, IEEE C57.13
Maximum voltage 0.72-1.2 kV
Short-time overcurrent 40 In / 1 s
Frequency 50 or 60 Hz
Installation Indoor
Operating temperature -10 to 55 C
Humidity 80% RH
Color Black
Type Ring (round) neutral CT
Insulation Epoxy vacuum molding
Hole size 65 mm
Weight approx. 14 kg
WYCR-64 Primary: 100-2000/5 A | Class: 1.0 | Burden: 5 VA / 15 VA (100-2000 A); 40 VA (450-2000 A) | Weight: approx. 14 kg | Dimensions: 156.4 x 195.1 x 120.4 mm (hole 65.1 mm)
WYCR-64R Primary: 100-2000/5 A | Class: 5P | Burden ALF: 5 VA n>10 (100-2000 A); 15 VA n>20 (400-2000 A); 40 VA n>10 (400-2000 A) | Weight: approx. 14 kg | Dimensions: 156.4 x 195.1 x 120.4 mm (hole 65.1 mm)
Current TransformersWoonyoung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYCR-64 / WYCR-64R Neutral Current Transformer, 100-2000 A

Brand Woonyoung·Current Transformers

Available part numbers (2)

WYCR-64, WYCR-64R

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYCR-64Primary: 100-2000/5 A | Class: 1.0 | Burden: 5 VA / 15 VA (100-2000 A); 40 VA (450-2000 A) | Weight: approx. 14 kg | Dimensions: 156.4 x 195.1 x 120.4 mm (hole 65.1 mm)
WYCR-64RPrimary: 100-2000/5 A | Class: 5P | Burden ALF: 5 VA n>10 (100-2000 A); 15 VA n>20 (400-2000 A); 40 VA n>10 (400-2000 A) | Weight: approx. 14 kg | Dimensions: 156.4 x 195.1 x 120.4 mm (hole 65.1 mm)
