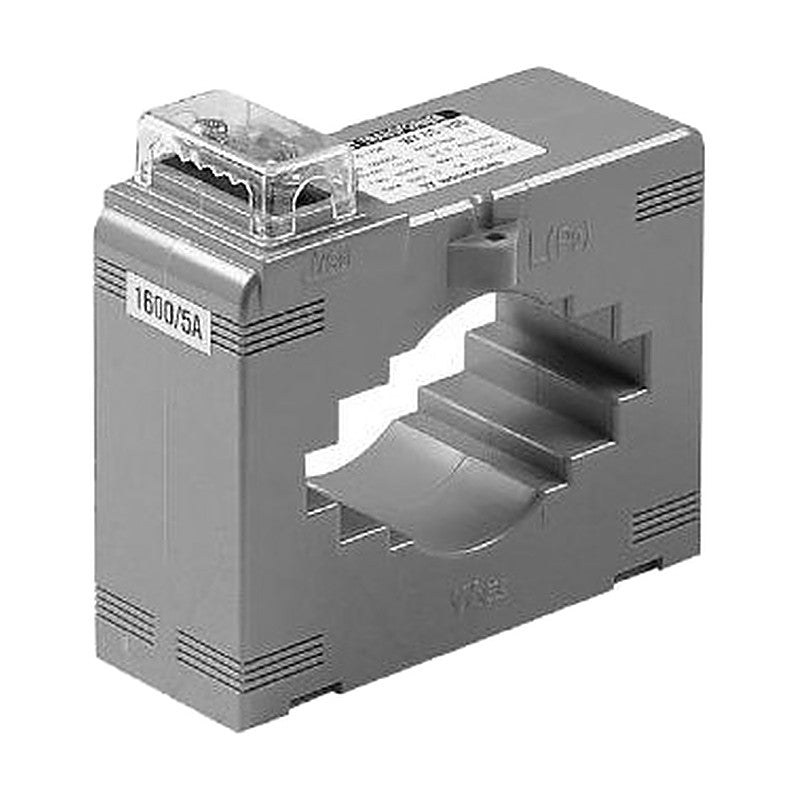

Woonyoung WYCS-105 Panel-Installing Current Transformer, 400-2000 A

Woonyoung WYCS-105 Panel-Installing Current Transformer, 400-2000 A

Square panel-installing current transformer accepting busbar or cable (60 mm round / stepped window), single or double ratio from 400 A to 2000 A.

Key features

  • Square CT for busbar or cable through-installation
  • Single-ratio (WYCS-105) and double-ratio (WYCS-105D) versions
  • Polycarbonate case with cover; M5 secondary terminals
  • Easy panel mounting kit
  • KC (KS) and CE marked

Specifications

Standards KS C 1706, IEC 61869-2, JEC 1201, IEEE C57.13
Maximum voltage 0.72-1.2 kV
Short-time overcurrent 40 In / 1 s
Frequency 50 or 60 Hz
Installation Indoor
Operating temperature -10 to 55 C
Humidity 80% RH
Color Black
Type Square, panel installing
Secondary 5 A or 1 A
Burden 15 VA
Class 1.0
WYCS-105 Primary: 400-2000 A | Secondary: 5 or 1 A | Burden: 15 VA | Class: 1.0 | Weight: approx. 1.2 kg | Dimensions: 144 x 131 x 91 mm
WYCS-105D Primary: 800/400, 1000/500, 1200/600, 1500/750, 2000/1000 A | Secondary: 5 or 1 A | Burden: 15 VA | Class: 1.0 | Weight: approx. 1.2 kg | Dimensions: 144 x 131 x 91 mm
Current TransformersWoonyoung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYCS-105 Panel-Installing Current Transformer, 400-2000 A

Brand Woonyoung·Current Transformers

Available part numbers (2)

WYCS-105, WYCS-105D

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYCS-105Primary: 400-2000 A | Secondary: 5 or 1 A | Burden: 15 VA | Class: 1.0 | Weight: approx. 1.2 kg | Dimensions: 144 x 131 x 91 mm
WYCS-105DPrimary: 800/400, 1000/500, 1200/600, 1500/750, 2000/1000 A | Secondary: 5 or 1 A | Burden: 15 VA | Class: 1.0 | Weight: approx. 1.2 kg | Dimensions: 144 x 131 x 91 mm
