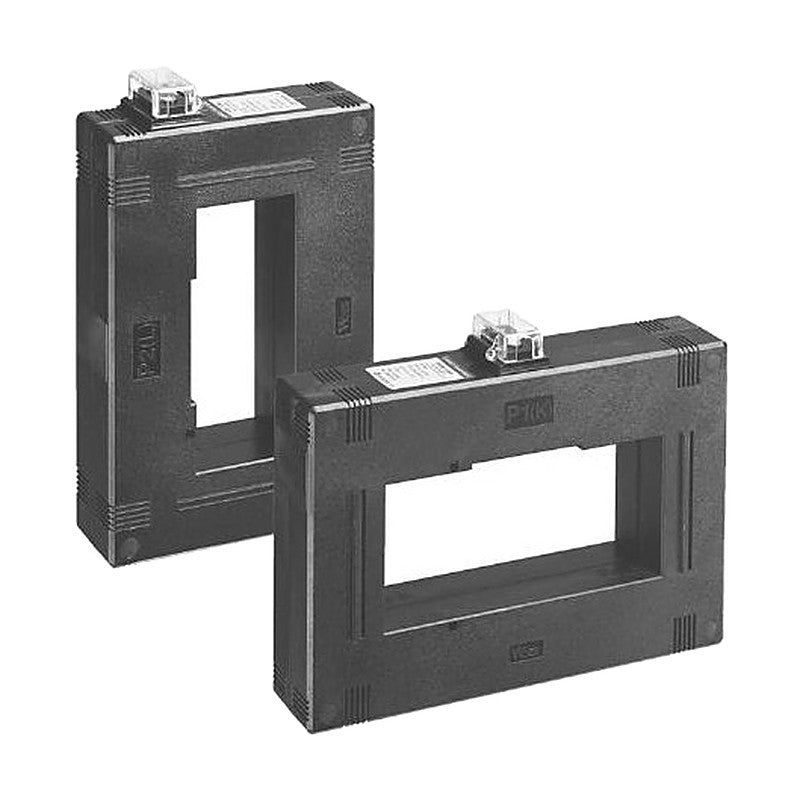

Woonyoung WYCS-MV/MH Series Metering Busbar Current Transformer, 150-7000 A

Woonyoung WYCS-MV/MH Series Metering Busbar Current Transformer, 150-7000 A

1-core single-ratio busbar-through metering CT, class 1.0, in vertical (MV) and horizontal (MH) versions for 150-7000 A.

Key features

  • Vertical (V) and horizontal (H) terminal orientations
  • Square busbar-through CT for 150-7000 A
  • Polycarbonate case with protective cover; 4-M5 mounting
  • 60 Hz standard (50 Hz option)
  • KC (KS) and CE marked

Specifications

Standards KS C 1706, IEC 61869-2, JEC 1201, IEEE C57.13
Maximum voltage 0.72-1.2 kV
Short-time overcurrent 40 In / 1 s
Frequency 60 Hz (50 Hz option)
Installation Indoor
Operating temperature -10 to 55 C
Humidity 80% RH
Color Black
Type Square, busbar-through, metering, 1-core
Secondary 5 A or 1 A
Class 1.0 (0.5/0.2 on request)
WYCS-066MV Orientation: Vertical | Primary: 150-630 A | Burden: 5 VA or 15 VA depending on ratio | Class: 1.0 | Weight: 4.5 kg | Dimensions: W 117, H 179.5, D 84 mm (W-1 15, H-1 156, H-2 61, D-1 61, L 20, L-1 45)
WYCS-066MH Orientation: Horizontal | Primary: 150-630 A | Burden: 5 VA or 15 VA depending on ratio | Class: 1.0 | Weight: 4.5 kg | Dimensions: W 156, H 140.5, D 84 mm (W-1 61, H-1 117, H-2 15, D-1 61, L 20, L-1 45)
WYCS-105MV Orientation: Vertical | Primary: 300-2000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 1.0 | Weight: 5 kg | Dimensions: W 148, H 227.3, D 78 mm (W-1 34.7, H-1 204, H-2 101.7, D-1 55, L 50, L-1 70)
WYCS-105MH Orientation: Horizontal | Primary: 300-2000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 1.0 | Weight: 5 kg | Dimensions: W 204, H 171.3, D 78 mm (W-1 101.7, H-1 148, H-2 34.7, D-1 55, L 50, L-1 70)
WYCS-107MV Orientation: Vertical | Primary: 150-1200 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 1.0 | Weight: 6 kg | Dimensions: W 148, H 227.5, D 97 mm (W-1 35, H-1 204, H-2 102, D-1 74, L 50, L-1 70)
WYCS-107MH Orientation: Horizontal | Primary: 150-1200 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 1.0 | Weight: 6 kg | Dimensions: W 204, H 171.5, D 97 mm (W-1 102, H-1 148, H-2 35, D-1 74, L 50, L-1 70)
WYCS-116MV Orientation: Vertical | Primary: 200-3000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 1.0 | Weight: 6 kg | Dimensions: W 153, H 235.5, D 84 mm (W-1 40, H-1 212, H-2 110, D-1 61, L 50, L-1 70)
WYCS-116MH Orientation: Horizontal | Primary: 200-3000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 1.0 | Weight: 6 kg | Dimensions: W 212, H 176.5, D 84 mm (W-1 110, H-1 153, H-2 40, D-1 61, L 50, L-1 70)
WYCS-166MV Orientation: Vertical | Primary: 3000-5000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 1.0 | Weight: 8 kg | Dimensions: W 176, H 283.5, D 84 mm (W-1 65, H-1 260, H-2 160, D-1 61, L 50, L-1 70)
WYCS-166MH Orientation: Horizontal | Primary: 3000-5000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 1.0 | Weight: 8 kg | Dimensions: W 260, H 199.5, D 84 mm (W-1 160, H-1 176, H-2 65, D-1 61, L 50, L-1 70)
WYCS-196MV Orientation: Vertical | Primary: 4000-7000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 1.0 | Weight: 9 kg | Dimensions: W 199, H 311.5, D 84 mm (W-1 90, H-1 288, H-2 190, D-1 61, L 50, L-1 70)
WYCS-196MH Orientation: Horizontal | Primary: 4000-7000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 1.0 | Weight: 9 kg | Dimensions: W 288, H 222.5, D 84 mm (W-1 190, H-1 199, H-2 90, D-1 61, L 50, L-1 70)
