Woonyoung WYCS-RV/RH Series Protection-Relay Busbar Current Transformer, 150-6000 A

Woonyoung WYCS-RV/RH Series Protection-Relay Busbar Current Transformer, 150-6000 A

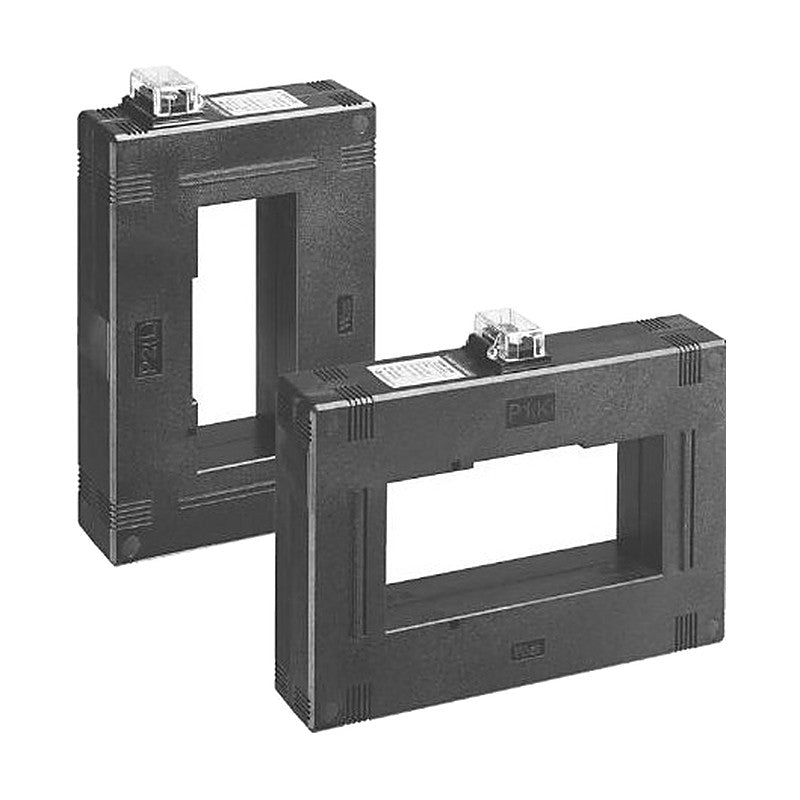

1-core single-ratio busbar-through CT for protection relays, class 5P10/5P20, in vertical (RV) and horizontal (RH) versions.

Key features

  • Vertical (V) and horizontal (H) terminal orientations
  • Square busbar-through CT for 150-7000 A
  • Polycarbonate case with protective cover; 4-M5 mounting
  • 60 Hz standard (50 Hz option)
  • KC (KS) and CE marked

Specifications

Standards KS C 1706, IEC 61869-2, JEC 1201, IEEE C57.13
Maximum voltage 0.72-1.2 kV
Short-time overcurrent 40 In / 1 s
Frequency 60 Hz (50 Hz option)
Installation Indoor
Operating temperature -10 to 55 C
Humidity 80% RH
Color Black
Type Square, busbar-through, protection, 1-core
Secondary 5 A or 1 A
Class 5P10 / 5P20 (PX on request)
WYCS-066RV Orientation: Vertical | Primary: 150-630 A | Burden: 5 VA or 15 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 4.5 kg | Dimensions: W 117, H 179.5, D 84 mm (W-1 15, H-1 156, H-2 61, D-1 61, L 20, L-1 45)
WYCS-066RH Orientation: Horizontal | Primary: 150-630 A | Burden: 5 VA or 15 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 4.5 kg | Dimensions: W 156, H 140.5, D 84 mm (W-1 61, H-1 117, H-2 15, D-1 61, L 20, L-1 45)
WYCS-105RV Orientation: Vertical | Primary: 200-2000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 5 kg | Dimensions: W 148, H 227.3, D 78 mm (W-1 34.7, H-1 204, H-2 101.7, D-1 55, L 50, L-1 70)
WYCS-105RH Orientation: Horizontal | Primary: 200-2000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 5 kg | Dimensions: W 204, H 171.3, D 78 mm (W-1 101.7, H-1 148, H-2 34.7, D-1 55, L 50, L-1 70)
WYCS-107RV Orientation: Vertical | Primary: 150-1200 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 6 kg | Dimensions: W 148, H 227.5, D 97 mm (W-1 35, H-1 204, H-2 102, D-1 74, L 50, L-1 70)
WYCS-107RH Orientation: Horizontal | Primary: 150-1200 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 6 kg | Dimensions: W 204, H 171.5, D 97 mm (W-1 102, H-1 148, H-2 35, D-1 74, L 50, L-1 70)
WYCS-116RV Orientation: Vertical | Primary: 200-3000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 6 kg | Dimensions: W 153, H 235.5, D 84 mm (W-1 40, H-1 212, H-2 110, D-1 61, L 50, L-1 70)
WYCS-116RH Orientation: Horizontal | Primary: 200-3000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 6 kg | Dimensions: W 212, H 176.5, D 84 mm (W-1 110, H-1 153, H-2 40, D-1 61, L 50, L-1 70)
WYCS-166RV Orientation: Vertical | Primary: 3000-5000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 8 kg | Dimensions: W 176, H 283.5, D 84 mm (W-1 65, H-1 260, H-2 160, D-1 61, L 50, L-1 70)
WYCS-166RH Orientation: Horizontal | Primary: 3000-5000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 8 kg | Dimensions: W 260, H 199.5, D 84 mm (W-1 160, H-1 176, H-2 65, D-1 61, L 50, L-1 70)
WYCS-196RV Orientation: Vertical | Primary: 4000-6000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 9 kg | Dimensions: W 199, H 311.5, D 84 mm (W-1 90, H-1 288, H-2 190, D-1 61, L 50, L-1 70)
WYCS-196RH Orientation: Horizontal | Primary: 4000-6000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 9 kg | Dimensions: W 288, H 222.5, D 84 mm (W-1 190, H-1 199, H-2 90, D-1 61, L 50, L-1 70)
Current TransformersWoonyoung
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYCS-RV/RH Series Protection-Relay Busbar Current Transformer, 150-6000 A

Brand Woonyoung·Current Transformers

Available part numbers (12)

WYCS-066RV, WYCS-066RH, WYCS-105RV, WYCS-105RH, WYCS-107RV, WYCS-107RH, WYCS-116RV, WYCS-116RH, WYCS-166RV, WYCS-166RH + 2 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYCS-066RVOrientation: Vertical | Primary: 150-630 A | Burden: 5 VA or 15 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 4.5 kg | Dimensions: W 117, H 179.5, D 84 mm (W-1 15, H-1 156, H-2 61, D-1 61, L 20, L-1 45)
WYCS-066RHOrientation: Horizontal | Primary: 150-630 A | Burden: 5 VA or 15 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 4.5 kg | Dimensions: W 156, H 140.5, D 84 mm (W-1 61, H-1 117, H-2 15, D-1 61, L 20, L-1 45)
WYCS-105RVOrientation: Vertical | Primary: 200-2000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 5 kg | Dimensions: W 148, H 227.3, D 78 mm (W-1 34.7, H-1 204, H-2 101.7, D-1 55, L 50, L-1 70)
WYCS-105RHOrientation: Horizontal | Primary: 200-2000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 5 kg | Dimensions: W 204, H 171.3, D 78 mm (W-1 101.7, H-1 148, H-2 34.7, D-1 55, L 50, L-1 70)
WYCS-107RVOrientation: Vertical | Primary: 150-1200 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 6 kg | Dimensions: W 148, H 227.5, D 97 mm (W-1 35, H-1 204, H-2 102, D-1 74, L 50, L-1 70)
WYCS-107RHOrientation: Horizontal | Primary: 150-1200 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 6 kg | Dimensions: W 204, H 171.5, D 97 mm (W-1 102, H-1 148, H-2 35, D-1 74, L 50, L-1 70)
WYCS-116RVOrientation: Vertical | Primary: 200-3000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 6 kg | Dimensions: W 153, H 235.5, D 84 mm (W-1 40, H-1 212, H-2 110, D-1 61, L 50, L-1 70)
WYCS-116RHOrientation: Horizontal | Primary: 200-3000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 6 kg | Dimensions: W 212, H 176.5, D 84 mm (W-1 110, H-1 153, H-2 40, D-1 61, L 50, L-1 70)
WYCS-166RVOrientation: Vertical | Primary: 3000-5000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 8 kg | Dimensions: W 176, H 283.5, D 84 mm (W-1 65, H-1 260, H-2 160, D-1 61, L 50, L-1 70)
WYCS-166RHOrientation: Horizontal | Primary: 3000-5000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 8 kg | Dimensions: W 260, H 199.5, D 84 mm (W-1 160, H-1 176, H-2 65, D-1 61, L 50, L-1 70)
WYCS-196RVOrientation: Vertical | Primary: 4000-6000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 9 kg | Dimensions: W 199, H 311.5, D 84 mm (W-1 90, H-1 288, H-2 190, D-1 61, L 50, L-1 70)
WYCS-196RHOrientation: Horizontal | Primary: 4000-6000 A | Burden: 5 VA / 15 VA / 40 VA depending on ratio | Class: 5P10 / 5P20 | Weight: 9 kg | Dimensions: W 288, H 222.5, D 84 mm (W-1 190, H-1 199, H-2 90, D-1 61, L 50, L-1 70)
