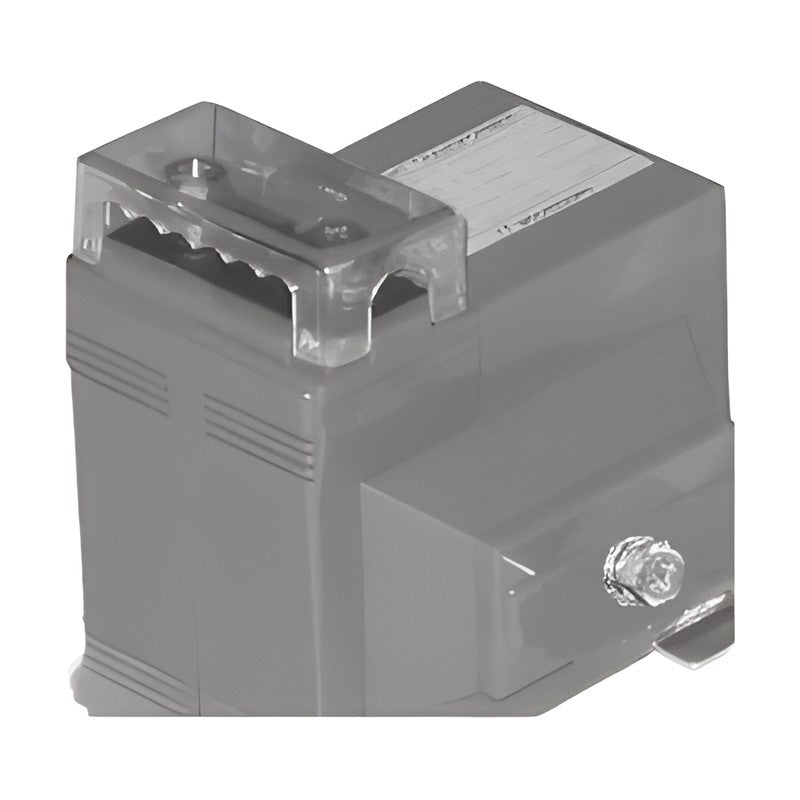

Woonyoung WYCW Series Winding-Type Current Transformer, 5-30 A

Woonyoung WYCW Series Winding-Type Current Transformer, 5-30 A

Wound-primary low-voltage current transformer for small primary currents of 5-30 A, in single- and double-ratio versions.

Key features

  • Wound primary for low current ratios
  • Single-ratio (WYCW-15) and double-ratio (WYCW-15D) versions
  • Standard CW 'A' type; CW 'B' type optional
  • Protective cover and easy panel mounting kit
  • KC (KS) and CE marked

Specifications

Standards KS C 1706, IEC 61869-2, JEC 1201, IEEE C57.13
Maximum voltage 0.72-1.2 kV
Short-time overcurrent 40 In / 1 s
Frequency 50 or 60 Hz
Installation Indoor
Operating temperature -10 to 55 C
Humidity 80% RH
Color Black
Type Winding type
Secondary 5 A or 1 A
Burden 15 VA
Class 1.0
WYCW-15 Primary: 5-30 A | Secondary: 5 or 1 A | Burden: 15 VA | Class: 1.0 | Weight: approx. 0.7 kg | Dimensions: 80 x 95 x 98 mm (A type)
WYCW-15D Primary: 10-30 A (5-15 A) | Secondary: 5 or 1 A | Burden: 15 VA | Class: 1.0 | Weight: approx. 0.7 kg | Dimensions: 80 x 95 x 98 mm (A type) | Note: Rated burden applies at the l1 tap
Current TransformersWoonyoung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYCW Series Winding-Type Current Transformer, 5-30 A

Brand Woonyoung·Current Transformers

Available part numbers (2)

WYCW-15, WYCW-15D

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYCW-15Primary: 5-30 A | Secondary: 5 or 1 A | Burden: 15 VA | Class: 1.0 | Weight: approx. 0.7 kg | Dimensions: 80 x 95 x 98 mm (A type)
WYCW-15DPrimary: 10-30 A (5-15 A) | Secondary: 5 or 1 A | Burden: 15 VA | Class: 1.0 | Weight: approx. 0.7 kg | Dimensions: 80 x 95 x 98 mm (A type) | Note: Rated burden applies at the l1 tap
