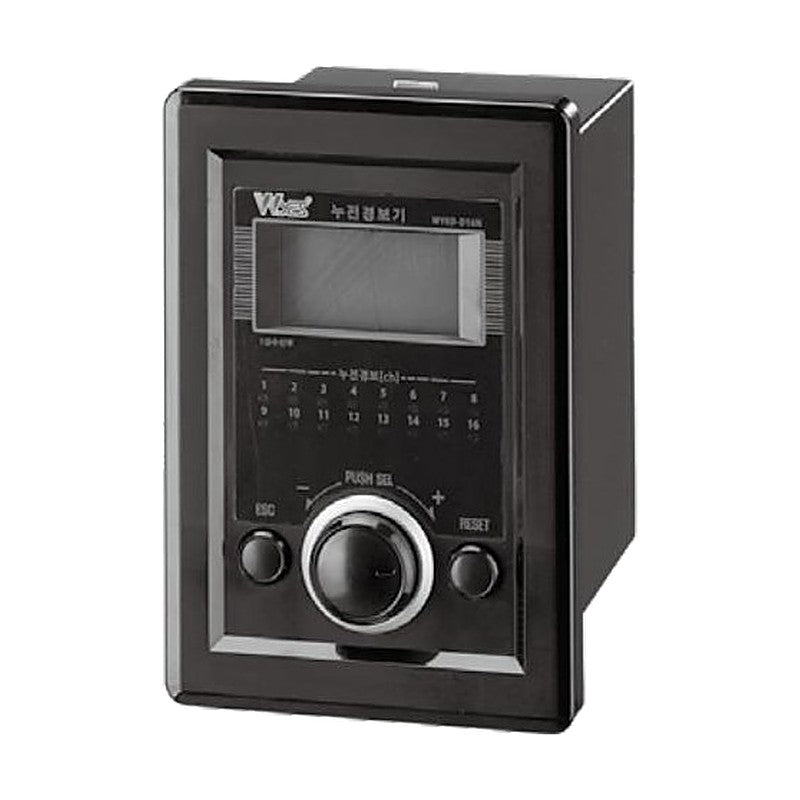

Woonyoung WYED/WYER-D NC Series Digital Multi-Channel Earth Leakage Detector and Relay

Woonyoung WYED/WYER-D NC Series Digital Multi-Channel Earth Leakage Detector and Relay

Digital 8-, 12- or 16-channel earth leakage detector for AC 600 V-or-below lines, with alarm-only (ELD) or alarm-and-trip (ELR) models and RS-485 Modbus.

Key features

  • Per-circuit leakage alarm on LEDs and LCD
  • Detects disconnection of circuits and ZCTs
  • Auto or manual reset selectable
  • Built-in self-test function
  • Stores leakage current values for post-fault analysis
  • Built-in surge protection; RS-485 Modbus

Specifications

Power supply AC/DC 110-220 V (+/-10%)
Frequency 50/60 Hz
Operating range Non-operating at 52%, operating at 75% of nominal current (1 s)
Line voltage Below AC 600 V
Operating temperature -10 to +60 C
Buzzer 75 dB/m or more
Contact capacity AC 240 V 5 A, DC 24 V 10 A
Burden (non-operating) 2.5 VA
Lightning impulse 6 kV (1.2/50 us), circuit-earth
Weight 2.0 kg
ZCT input 200 mA / 100 mV (2 kOhm)
Current setting range Lock, 0.1-1.00 A (0.01 A step)
WYED-D08NC Function: Alarm | Channels: 8 | Operating burden: 4 VA
WYED-D12NC Function: Alarm | Channels: 12 | Operating burden: 4 VA
WYED-D16NC Function: Alarm | Channels: 16 | Operating burden: 4 VA
WYER-D08NC Function: Alarm + trip | Channels: 8 | Operating burden: 10 VA
WYER-D12NC Function: Alarm + trip | Channels: 12 | Operating burden: 13 VA
WYER-D16NC Function: Alarm + trip | Channels: 16 | Operating burden: 16.5 VA
