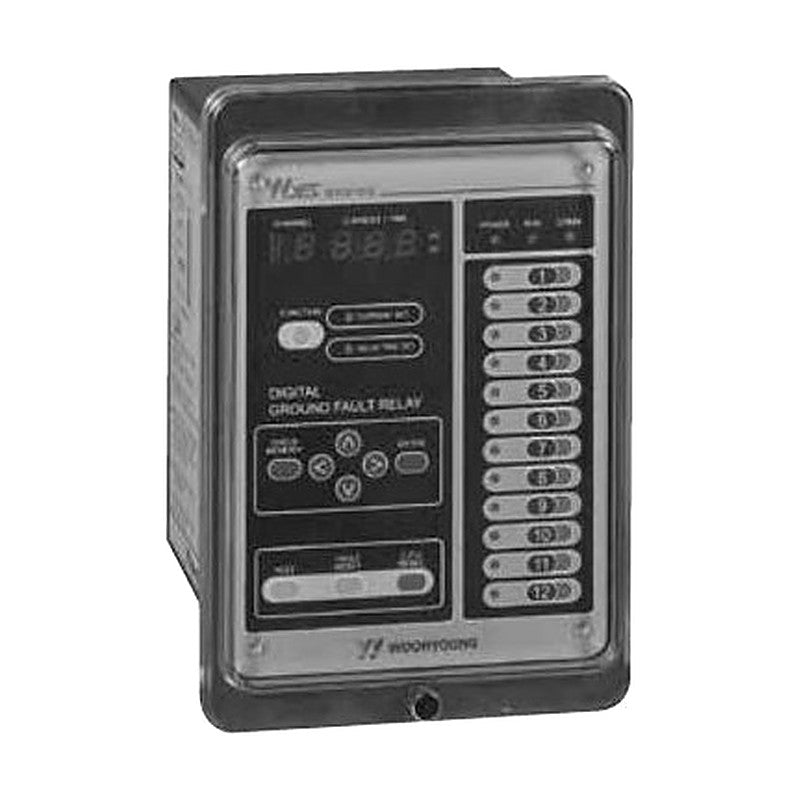

Woonyoung WYGF-D06/D12 Series Digital 6- and 12-Channel Ground Fault Relay

Woonyoung WYGF-D06/D12 Series Digital 6- and 12-Channel Ground Fault Relay

Digital 6- or 12-circuit AC ground fault relay to KS C 8328 with per-circuit digital display, fault memory and optional RS-485.

Key features

  • Per-circuit ground fault alarm with digital (FND) display
  • Fault memory of circuit, current and line
  • Self-diagnosis of internal circuits and software
  • Built-in surge protection
  • RS-485 Modbus on C models

Specifications

Frequency 50/60 Hz
Operating temperature -10 to +60 C
Contact capacity AC 240 V 5 A, DC 24 V 10 A
Standard KS C 8328
Power supply AC/DC 110-220 V free voltage
Current setting 0.1-10 A (0.1 A step); operation 75-100% of setting
Operating time setting 0.05 s, 0.1-10 s
Reset Output relay auto; LED indicator manual
Burden 12 VA
Insulation DC 500 V megger, 10 MOhm or more
Dielectric withstand 1st-earth 2000 V, 2nd-earth 500 V, 1st-2nd 2000 V AC 60 Hz 1 min
Lightning impulse 6 kV (1.2/50 us), circuit-earth
WYGF-D06 Channels: 6 | Communication: None
WYGF-D12 Channels: 12 | Communication: None
WYGF-D06C Channels: 6 | Communication: RS-485 Modbus
WYGF-D12C Channels: 12 | Communication: RS-485 Modbus
Ground Fault RelaysWoonyoung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYGF-D06/D12 Series Digital 6- and 12-Channel Ground Fault Relay

Brand Woonyoung·Ground Fault Relays

Available part numbers (4)

WYGF-D06, WYGF-D12, WYGF-D06C, WYGF-D12C
