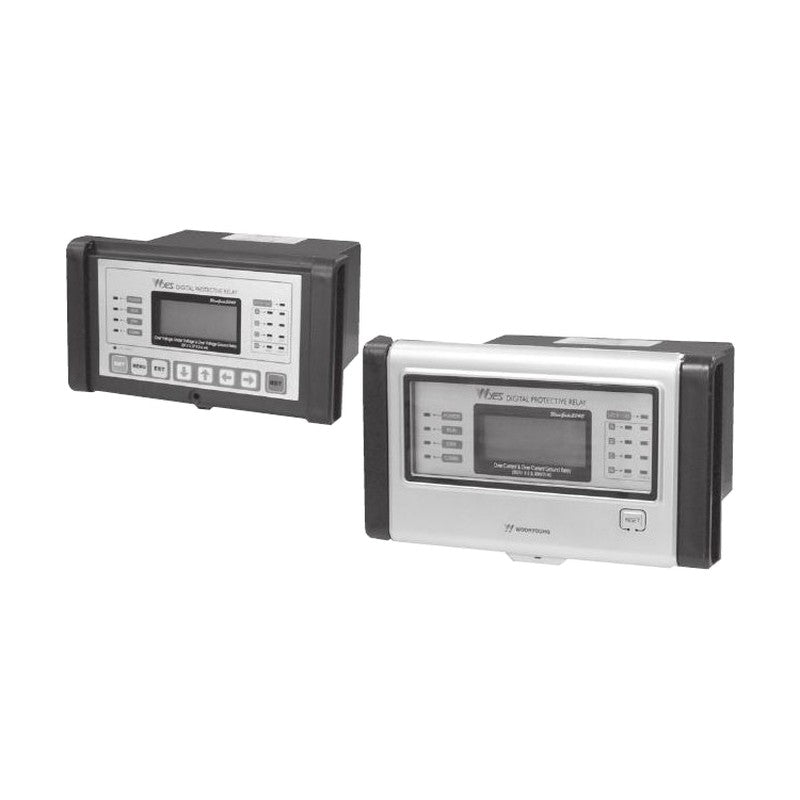

Woonyoung WYR-OV4DC Digital Over, Under and Ground Over Voltage Relay (59/27/64)

Woonyoung WYR-OV4DC Digital Over, Under and Ground Over Voltage Relay (59/27/64)

Digital relay providing three-phase over/under-voltage and ground overvoltage protection (ANSI 59/27/64) for 3VT plus EVT connection.

Key features

  • Over-, under- and ground over-voltage elements
  • Normal inverse and definite time curves
  • Fault memory of operating current and operating time
  • RS-485 Modbus communication
  • Free-voltage auxiliary supply AC/DC 110-240 V

Specifications

Standard IEC 60255, KEMC 1120, KEPCO
Aux. power AC/DC 110-240 V free voltage (DC 110/220 V, 5 W), 50/60 Hz
Trip contact 1a, AC 250 V / 10 A
Thermal withstand 10 A continuous; 100 A for 10 s; 200 A for 1 s
Insulation resistance > 100 MOhm at DC 500 V (IEC 60255-5)
Dielectric withstand AC 2 kV for 1 min (IEC 60255-5)
Impulse withstand 5 kV, 1.2/50 us (IEC 60255-5)
Shock resistance Approx. 30 G, 3 times in each of 3 directions
Vibration resistance 30 Hz, 0.4 mm double amplitude, 600 s in X, Y and Z
Operating temperature -10 to +55 C
Storage temperature -20 to +70 C
Degree of protection IP52
WYR-OV4DC Elements: OVR x 3 + UVR x 3 + OVGR x 1
Digital Protection RelaysWoonyoung
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYR-OV4DC Digital Over, Under and Ground Over Voltage Relay (59/27/64)

Brand Woonyoung·Digital Protection Relays

Available part numbers (1)

WYR-OV4DC

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYR-OV4DCElements: OVR x 3 + UVR x 3 + OVGR x 1
