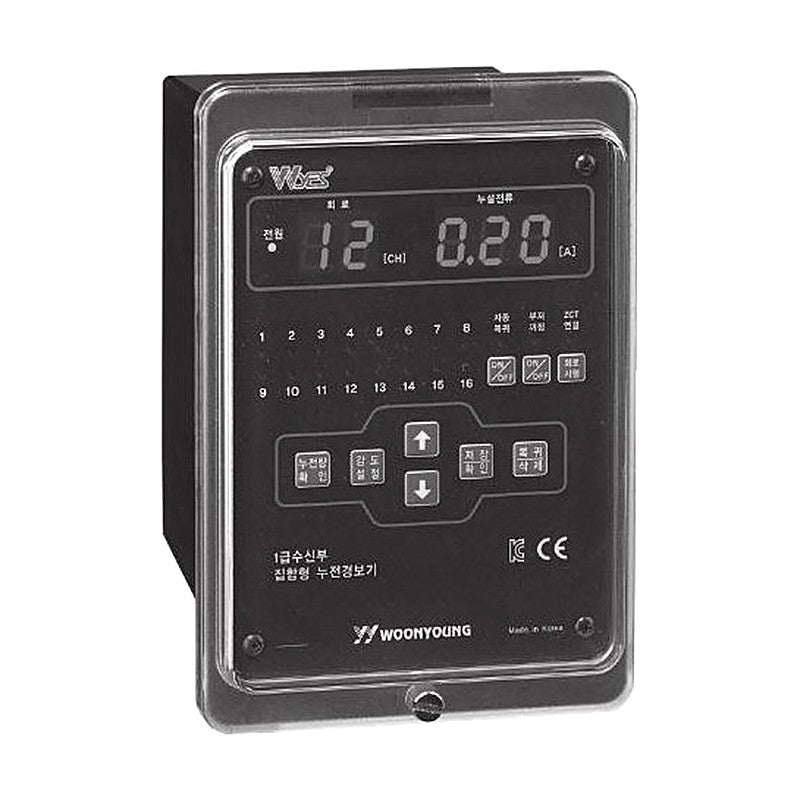

Woonyoung WYED/WYER-M N Series Micom Multi-Channel Earth Leakage Detector and Relay

Woonyoung WYED/WYER-M N Series Micom Multi-Channel Earth Leakage Detector and Relay

Microprocessor-based 8-, 12- or 16-channel earth leakage detector with segment display, in alarm (ED) or alarm-and-trip (ER) versions.

Key features

  • Per-circuit leakage alarm on LEDs
  • Displays leaking circuit and leakage current on front segments
  • ZCT disconnection check via self test
  • Auto or manual reset
  • Self-diagnosis of internal circuits and software
  • Common contact plus per-circuit contacts (8/12/16) and buzzer output

Specifications

Power supply AC/DC 110-220 V (+/-10%)
Frequency 50/60 Hz
Operating range Non-operating at 52%, operating at 75% of nominal current (1 s)
Line voltage Below AC 600 V
Operating temperature -10 to +60 C
Buzzer 75 dB/m or more
Contact capacity AC 240 V 5 A, DC 24 V 10 A
Burden (non-operating) 2.5 VA
Lightning impulse 6 kV (1.2/50 us), circuit-earth
Weight 2.0 kg
ZCT input 200 mA / 100 mV (2 kOhm)
Current setting range 0.1-1.0 A (0.1 A step)
WYED-M08N Function: Alarm | Channels: 8 | Operating burden: 4 VA
WYED-M12N Function: Alarm | Channels: 12 | Operating burden: 4 VA
WYED-M16N Function: Alarm | Channels: 16 | Operating burden: 4 VA
WYER-M08N Function: Alarm + trip | Channels: 8 | Operating burden: 10 VA
WYER-M12N Function: Alarm + trip | Channels: 12 | Operating burden: 13 VA
WYER-M16N Function: Alarm + trip | Channels: 16 | Operating burden: 16.5 VA
Earth Leakage RelaysWoonyoung
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYED/WYER-M N Series Micom Multi-Channel Earth Leakage Detector and Relay

Brand Woonyoung·Earth Leakage Relays

Available part numbers (6)

WYED-M08N, WYED-M12N, WYED-M16N, WYER-M08N, WYER-M12N, WYER-M16N

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYED-M08NFunction: Alarm | Channels: 8 | Operating burden: 4 VA
WYED-M12NFunction: Alarm | Channels: 12 | Operating burden: 4 VA
WYED-M16NFunction: Alarm | Channels: 16 | Operating burden: 4 VA
WYER-M08NFunction: Alarm + trip | Channels: 8 | Operating burden: 10 VA
WYER-M12NFunction: Alarm + trip | Channels: 12 | Operating burden: 13 VA
WYER-M16NFunction: Alarm + trip | Channels: 16 | Operating burden: 16.5 VA
