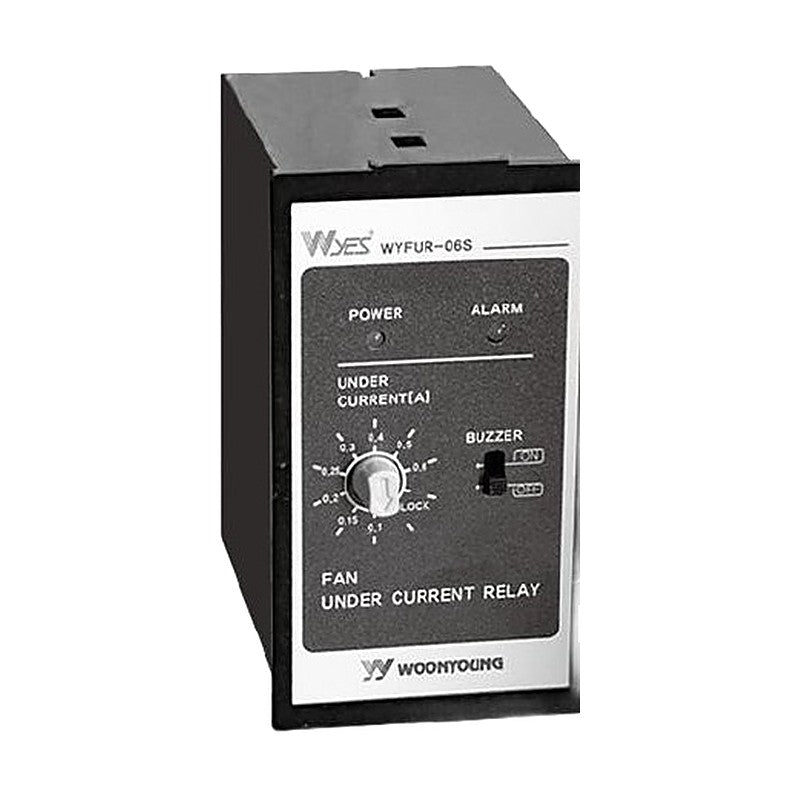

Woonyoung WYFUR-06S Fan Under-Current Relay

Woonyoung WYFUR-06S Fan Under-Current Relay

Plug-in relay that monitors cooling-fan current and raises an alarm with LED and buzzer when the current drops below a set value (0.1-0.6 A).

Key features

  • Power LED and alarm LED indicators
  • Alarm when current falls to or below the set under-current value
  • Buzzer with mute switch
  • Selectable setting 0.1-0.6 A (set below the fan's rated current, e.g. 0.1 or 0.15 A for a 0.19 A fan)
  • Auto reset; alarm contacts AC 240 V 5 A / DC 24 V 10 A
  • Supply 90-240 VAC, 50/60 Hz

Specifications

Supply voltage 90-240 VAC
Rated frequency 50/60 Hz
WYFUR-06S Supply voltage: 90-240 VAC | Rated frequency: 50/60 Hz | Under-current setting: 0.1-0.15-0.2-0.25-0.3-0.4-0.5-0.6 A-LOCK | Continuous current: 3 A | Operating current: +/-20% of setting | Operating temperature: -10 to 60 C | Storage temperature: -20 to 70 C | Operating humidity: 20-85% RH non-condensing | Reset: Auto | Buzzer: 75 dB/m or more | Contact capacity: AC 240 V 5 A, DC 24 V 10 A | Burden: Operating 0.35 VA, alarm 1.2 VA | Insulation: AC input & output - alarm contact DC 500 V / 100 MOhm | Dielectric withstand: AC input & output - alarm contact AC 2000 V / 1 min | Fuse: AC 250 V 4 A | Weight: 230 g | Dimensions W x H x D: 57 x 57 x 94 mm
Fan Under-Current RelaysWoonyoung
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYFUR-06S Fan Under-Current Relay

Brand Woonyoung·Fan Under-Current Relays

Available part numbers (1)

WYFUR-06S

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYFUR-06SSupply voltage: 90-240 VAC | Rated frequency: 50/60 Hz | Under-current setting: 0.1-0.15-0.2-0.25-0.3-0.4-0.5-0.6 A-LOCK | Continuous current: 3 A | Operating current: +/-20% of setting | Operating temperature: -10 to 60 C | Storage temperature: -20 to 70 C | Operating humidity: 20-85% RH non-condensing | Reset: Auto | Buzzer: 75 dB/m or more | Contact capacity: AC 240 V 5 A, DC 24 V 10 A | Burden: Operating 0.35 VA, alarm 1.2 VA | Insulation: AC input & output - alarm contact DC 500 V / 100 MOhm | Dielectric withstand: AC input & output - alarm contact AC 2000 V / 1 min | Fuse: AC 250 V 4 A | Weight: 230 g | Dimensions W x H x D: 57 x 57 x 94 mm
