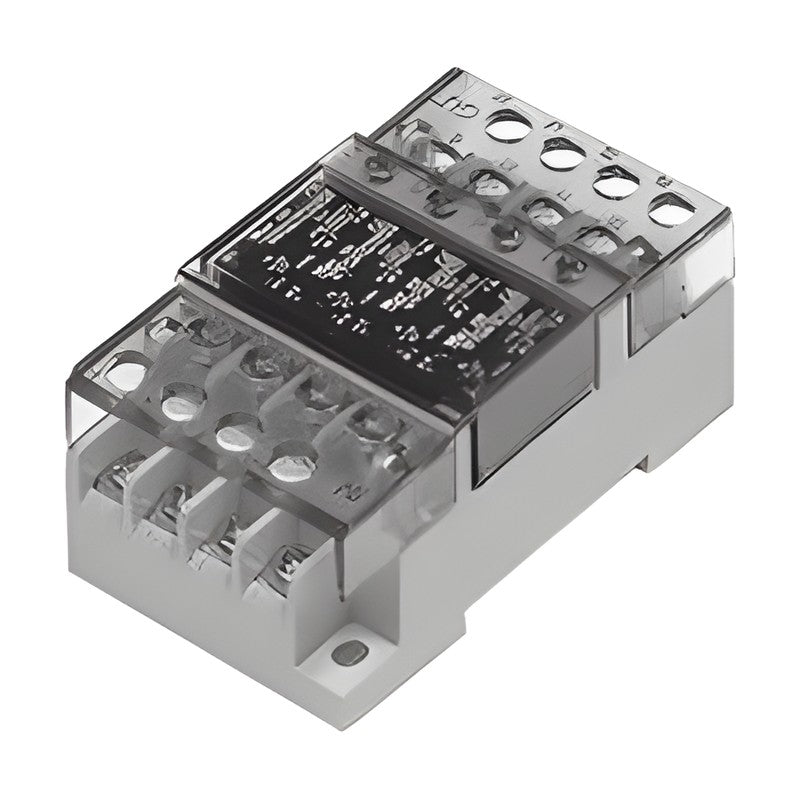

Woonyoung WYGA Series SSR Socket

Woonyoung WYGA Series SSR Socket

Plug-in socket for WYGA-type miniature solid state relays, available in single PCB-mount and 2- or 4-position DIN-rail versions.

Key features

  • PCB-mount single socket (1P1) and DIN-rail multi-position sockets (1P2, 1P4)
  • Control input DC 4-32 V; output terminals non-polar when the load is AC
  • M3.5 screw terminals on the DIN-rail versions
  • Compact sockets for space-saving panel layouts

Specifications

Control input DC 4-32 V
Output polarity Non-polar for AC output
WYGA-1P1 Mounting: PCB | SSR positions: 1 | Dimensions: 23 x 10 x 19.5 mm (pins 3 mm)
WYGA-1P2 Mounting: DIN rail | SSR positions: 2 | Dimensions: 77.5 x 26.6 x 33.4 mm | Terminal screw: M3.5
WYGA-1P4 Mounting: DIN rail | SSR positions: 4 | Dimensions: 78 x 44 x 39.15 mm | Terminal screw: M3.5
SSR SocketsWoonyoung
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYGA Series SSR Socket

Brand Woonyoung·SSR Sockets

Available part numbers (3)

WYGA-1P1, WYGA-1P2, WYGA-1P4

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYGA-1P1Mounting: PCB | SSR positions: 1 | Dimensions: 23 x 10 x 19.5 mm (pins 3 mm)
WYGA-1P2Mounting: DIN rail | SSR positions: 2 | Dimensions: 77.5 x 26.6 x 33.4 mm | Terminal screw: M3.5
WYGA-1P4Mounting: DIN rail | SSR positions: 4 | Dimensions: 78 x 44 x 39.15 mm | Terminal screw: M3.5
