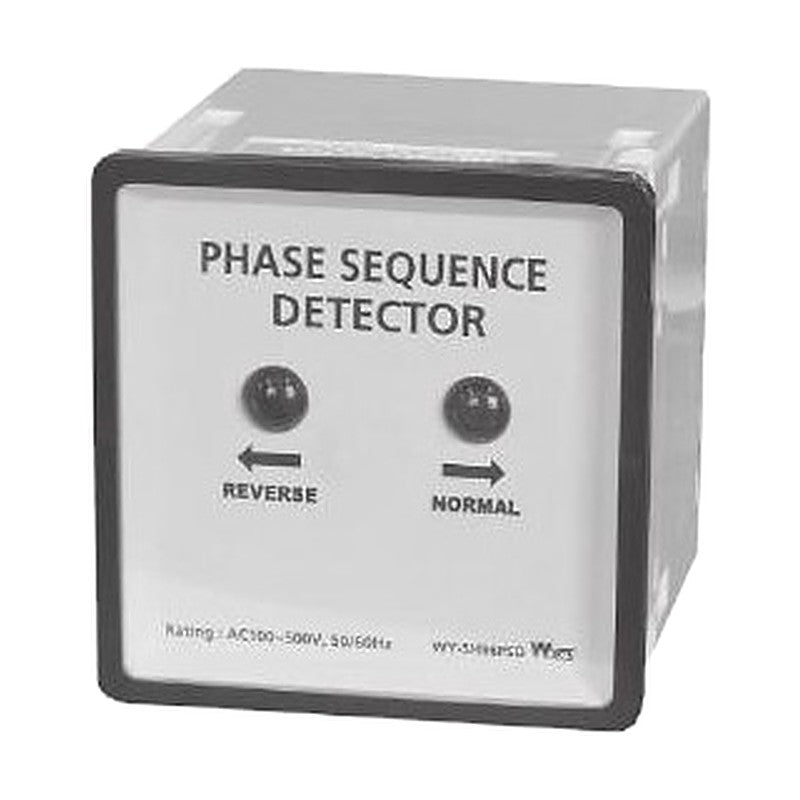

Woonyoung WYMT-SH96PSD Three-Phase Sequence Detector

Panel indicator that checks three-phase phase sequence up to 500 V: green lamp for correct sequence, red lamp for reversed.

Key features

Senses phase sequence on three-phase lines up to 500 V
Green lamp for normal, red lamp for reverse sequence
Two input ranges: 100-250 V and 250-500 V
96 x 96 mm panel case

Specifications

Voltage	AC 100-500 V
Frequency	50/60 Hz
Input	AC 100-250 V terminals a, b, c; AC 250-500 V terminals A, B, C
Burden	3 VA
Normal indication	Green LED (R-S-T)
Reverse indication	Red LED (S-R-T)
Operating temperature	-10 to +55 C, < 95% RH
Storage temperature	-20 to +70 C
Vibration	16.7 Hz, 0.4 mm double amplitude; shock 50 G
Dimensions	96 x 96 mm (cut-out 92 x 92 mm)
Weight	0.5 kg
Certifications	CE

WYMT-SH96PSD

Phase IndicatorsWoonyoung

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYMT-SH96PSD Three-Phase Sequence Detector

Brand Woonyoung·Phase Indicators

Available part numbers (1)

WYMT-SH96PSD

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
