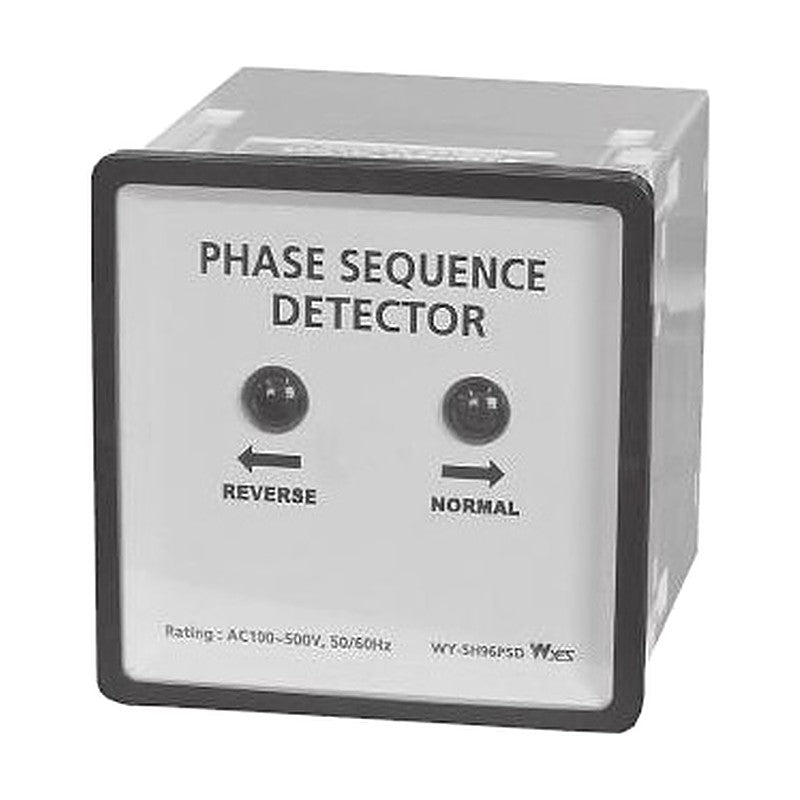

Woonyoung WYMT-SH96PSDR Three-Phase Sequence Detector and Relay

Three-phase phase sequence detector up to 500 V with lamp indication and relay output contacts.

Key features

Green/red lamp indication of normal or reversed phase sequence
Relay output contacts Ta, Tb, Tc rated AC 250 V 5 A
Aux. power AC 110 V or 220 V
96 x 96 mm panel case

Specifications

Voltage	AC 100-500 V
Frequency	50/60 Hz
Input	AC 100-250 V terminals a, b, c; AC 250-500 V terminals A, B, C
Burden	3 VA
Normal indication	Green LED (R-S-T)
Reverse indication	Red LED (S-R-T)
Operating temperature	-10 to +55 C, < 95% RH
Storage temperature	-20 to +70 C
Vibration	16.7 Hz, 0.4 mm double amplitude; shock 50 G
Dimensions	96 x 96 mm (cut-out 92 x 92 mm)
Weight	0.5 kg
Certifications	CE
