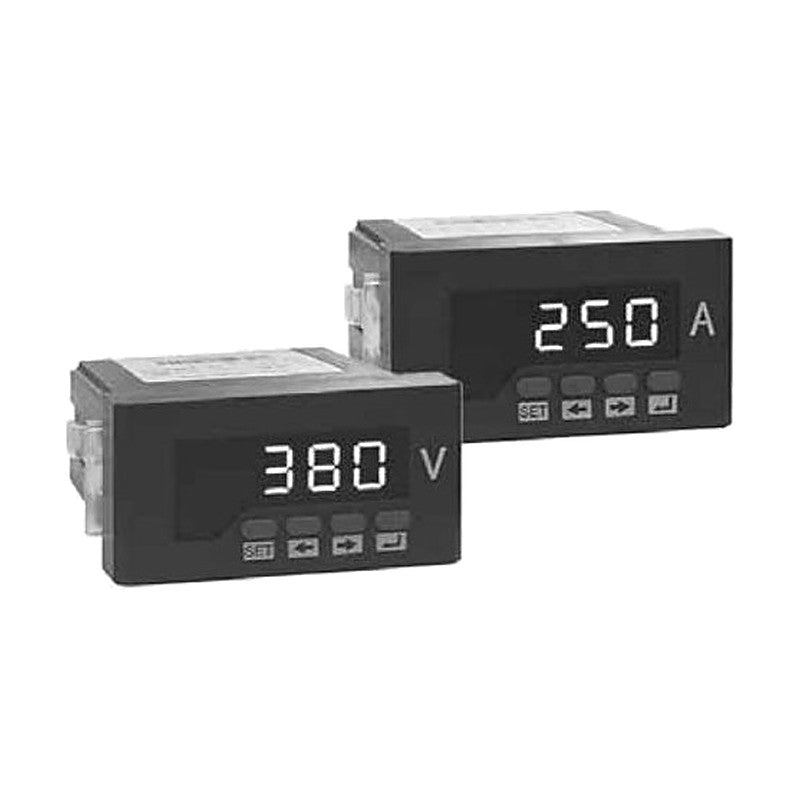

Woonyoung WYPMN48-AA/AV Digital Panel Ammeter and Voltmeter, 48 x 96 mm

Programmable 4-digit LED digital ammeter and voltmeter in a 48 x 96 mm case with built-in CT/PT ratio setting.

Key features

4-digit red LED display, 0-9999
CT and PT ratios programmable on the meter
Direct connection up to 600 V without PT
Class 0.5 accuracy
ABS black case, CE marked

Specifications

Accuracy	Class 0.5
Rated input	Current 1 A or 5 A; voltage 110, 220, 380 VAC
Overload	Current 1.2x continuous, 10x for 1 s; voltage 1.2x continuous, 2x for 1 s
Power consumption	< 1 VA per phase; < 4 VA aux.
Impedance	> 300 mOhm
Frequency	45-65 Hz
Operating temperature	-10 to +55 C
Storage temperature	-25 to +70 C
Humidity	< 93%
Insulation resistance	> 100 MOhm
AC withstand	AC 2 kV
Case size	48 x 96 mm

WYPMN48-AA		Function: AC ammeter \| Aux. power: AC/DC 80-270 V
WYPMN48-AV		Function: AC voltmeter \| Aux. power: AC 220 V
