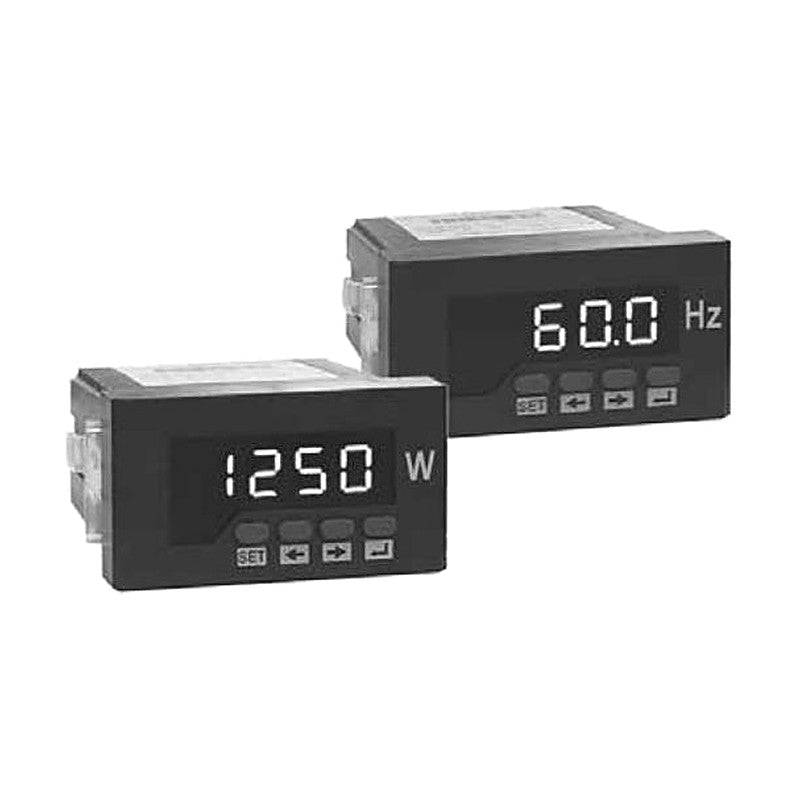

Woonyoung WYPMN48 Digital Watt, var, Power Factor and Frequency Meters, 48 x 96 mm

Woonyoung WYPMN48 Digital Watt, var, Power Factor and Frequency Meters, 48 x 96 mm

Digital panel meters in a 48 x 96 mm case for watt, var, power factor and frequency, fed from a transducer or converter signal.

Key features

  • Watt, var, power factor and frequency versions
  • 3 1/2 or 4 1/2 digit display
  • Accuracy F.S. +/-0.5% rdg +/-2 digit
  • Scale specified at order (e.g. PT 440/110 V, CT 150/5 A)

Specifications

Case size 48 x 96 mm
Panel cut-out 45 x 91 mm
Depth 112 mm
Display LED
Accuracy F.S. +/-0.5% rdg +/-2 digit
Aux. power AC 110/220 V +/-10%, 50/60 Hz
Weight 0.25 kg
Certifications CE
WYPMN48-W3 Function: Watt meter | Display: 3 1/2 digit | Input: DC voltage or current via transducer (e.g. DC 0-1 mA)
WYPMN48-W4 Function: Watt meter | Display: 4 1/2 digit | Input: DC voltage or current via transducer (e.g. DC 4-20 mA)
WYPMN48-R3 Function: var meter | Display: 3 1/2 digit | Input: DC voltage or current via transducer (e.g. DC 0-1 mA)
WYPMN48-R4 Function: var meter | Display: 4 1/2 digit | Input: DC voltage or current via transducer (e.g. DC 4-20 mA)
WYPMN48-P3 Function: Power factor meter | Input: DC voltage or current via transducer | Range: Lead 0.50 - 1 - Lag 0.50
WYPMN48-H3 Function: Frequency meter | Input: AC 30-300 V | Range: 55.0-65.0 Hz
Digital Panel MetersWoonyoung
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYPMN48 Digital Watt, var, Power Factor and Frequency Meters, 48 x 96 mm

Brand Woonyoung·Digital Panel Meters

Available part numbers (6)

WYPMN48-W3, WYPMN48-W4, WYPMN48-R3, WYPMN48-R4, WYPMN48-P3, WYPMN48-H3

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYPMN48-W3Function: Watt meter | Display: 3 1/2 digit | Input: DC voltage or current via transducer (e.g. DC 0-1 mA)
WYPMN48-W4Function: Watt meter | Display: 4 1/2 digit | Input: DC voltage or current via transducer (e.g. DC 4-20 mA)
WYPMN48-R3Function: var meter | Display: 3 1/2 digit | Input: DC voltage or current via transducer (e.g. DC 0-1 mA)
WYPMN48-R4Function: var meter | Display: 4 1/2 digit | Input: DC voltage or current via transducer (e.g. DC 4-20 mA)
WYPMN48-P3Function: Power factor meter | Input: DC voltage or current via transducer | Range: Lead 0.50 - 1 - Lag 0.50
WYPMN48-H3Function: Frequency meter | Input: AC 30-300 V | Range: 55.0-65.0 Hz
