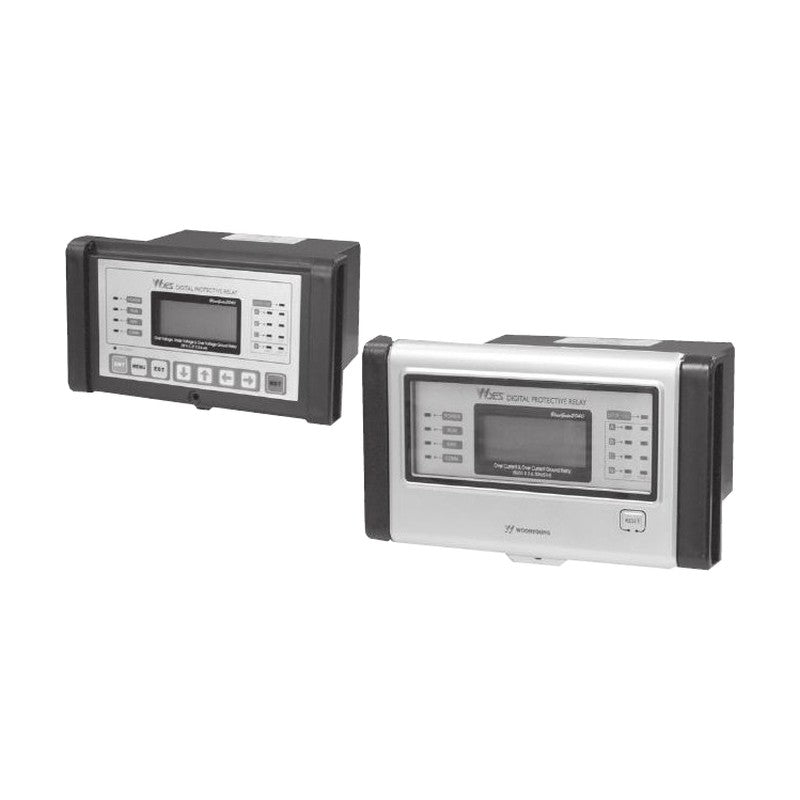

Woonyoung WYR-DG2DC Digital Directional Ground and Ground Over Voltage Relay (67G/64)

Woonyoung WYR-DG2DC Digital Directional Ground and Ground Over Voltage Relay (67G/64)

Digital directional (selective) ground relay with ground overvoltage element (ANSI 67G/64) using ZCT and EVT inputs.

Key features

  • Directional ground (67G) plus ground overvoltage (64) elements
  • Adjustable phase-angle characteristic
  • Fault memory of operating current and operating time
  • RS-485 Modbus communication
  • Free-voltage auxiliary supply AC/DC 110-240 V

Specifications

Standard IEC 60255, KEMC 1120
Aux. power AC/DC 110-240 V free voltage (DC 110/220 V, 5 W), 50/60 Hz
Trip contact 1a, AC 250 V / 10 A
Thermal withstand 10 A continuous; 100 A for 10 s; 200 A for 1 s
Insulation resistance > 100 MOhm at DC 500 V (IEC 60255-5)
Dielectric withstand AC 2 kV for 1 min (IEC 60255-5)
Impulse withstand 5 kV, 1.2/50 us (IEC 60255-5)
Shock resistance Approx. 30 G, 3 times in each of 3 directions
Vibration resistance 30 Hz, 0.4 mm double amplitude, 600 s in X, Y and Z
Operating temperature -10 to +55 C
Storage temperature -20 to +70 C
Degree of protection IP52
WYR-DG2DC Elements: DGR + OVGR
