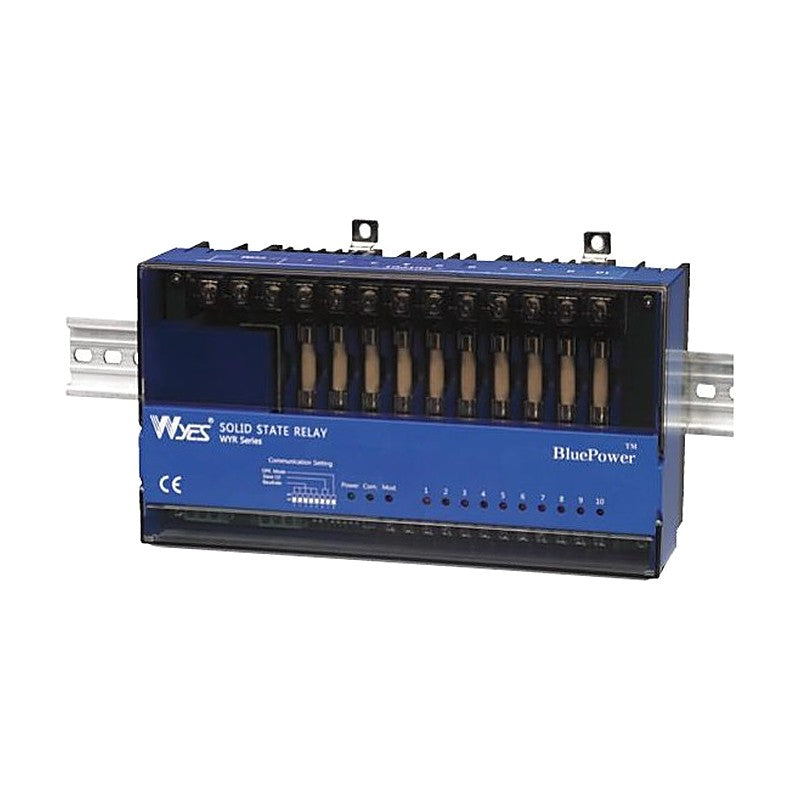

Woonyoung WYR Intelligent SSR i Series 10-Channel Module SSR (BluePower)

Woonyoung WYR Intelligent SSR i Series 10-Channel Module SSR (BluePower)

10-channel DIN-rail module solid state relay for controlling multiple industrial heaters via Modbus-485 or individual analog inputs.

Key features

  • Controls up to 10 ch x 99 units = 990 heaters simultaneously over RS-485 communication
  • Individual analog control per channel with DC 4-32 V signals
  • Heat-sink temperature sensor stops output automatically on overheating
  • Built-in surge protection circuit
  • Digital control via Modbus-485
  • Zero-cross switching, per-channel fuses

Specifications

Channels 10
Switching Zero cross
Rated voltage 440 VAC, single phase
Voltage range 90-480 VAC
WYR-1H10C50Z4 Channels: 10 | Circuit control: Zero cross | Rated voltage: 440 VAC, 1-phase | Voltage range: 90-480 VAC | Non-repetitive peak voltage: 1200 V | Rated current: 5A@15A (1 ch), max 50 A (10 ch) | Frequency: 50/60 Hz | Peak surge current: 260 A | Leakage current: 10 mA | Contact voltage drop: 1.6 VAC max | Minimum operating current: 0.5 A | Fuse: AC 250 V, 20 A | Modbus-485: 9600/19200/38400/57600 bps, slave ID 1-99, max 1 km | Analog input: 10 ch, 4-32 VDC (max 32 VDC), 10 mA +/-3 mA, min operating 3.7 VDC, turn-off 2.1 VDC | Aux power: AC 90-264 V 50/60 Hz, under 10 VA | Dielectric withstand: AC 2 kV 1 min (input-output-aux power; output/aux power-FG); AC 500 V 1 min (input-FG) | Insulation resistance: DC 500 V, 100 MOhm | Impulse withstand: 5 kV, 1.2/50 us | Shock resistance: Approx. 30 G, 3 times in 3 directions | Vibration resistance: 30 Hz, 0.4 mm double amplitude, 600 s each in X, Y | Operating temperature: -10 to 55 C | Storage temperature: -20 to 70 C | IP rating: IP52 | Weight: 1.7 kg | Width: 210 mm (height 85.3 mm incl. DIN bracket) | Brand line: BluePower
Solid State RelaysWoonyoung
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYR Intelligent SSR i Series 10-Channel Module SSR (BluePower)

Brand Woonyoung·Solid State Relays

Available part numbers (1)

WYR-1H10C50Z4

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYR-1H10C50Z4Channels: 10 | Circuit control: Zero cross | Rated voltage: 440 VAC, 1-phase | Voltage range: 90-480 VAC | Non-repetitive peak voltage: 1200 V | Rated current: 5A@15A (1 ch), max 50 A (10 ch) | Frequency: 50/60 Hz | Peak surge current: 260 A | Leakage current: 10 mA | Contact voltage drop: 1.6 VAC max | Minimum operating current: 0.5 A | Fuse: AC 250 V, 20 A | Modbus-485: 9600/19200/38400/57600 bps, slave ID 1-99, max 1 km | Analog input: 10 ch, 4-32 VDC (max 32 VDC), 10 mA +/-3 mA, min operating 3.7 VDC, turn-off 2.1 VDC | Aux power: AC 90-264 V 50/60 Hz, under 10 VA | Dielectric withstand: AC 2 kV 1 min (input-output-aux power; output/aux power-FG); AC 500 V 1 min (input-FG) | Insulation resistance: DC 500 V, 100 MOhm | Impulse withstand: 5 kV, 1.2/50 us | Shock resistance: Approx. 30 G, 3 times in 3 directions | Vibration resistance: 30 Hz, 0.4 mm double amplitude, 600 s each in X, Y | Operating temperature: -10 to 55 C | Storage temperature: -20 to 70 C | IP rating: IP52 | Weight: 1.7 kg | Width: 210 mm (height 85.3 mm incl. DIN bracket) | Brand line: BluePower
