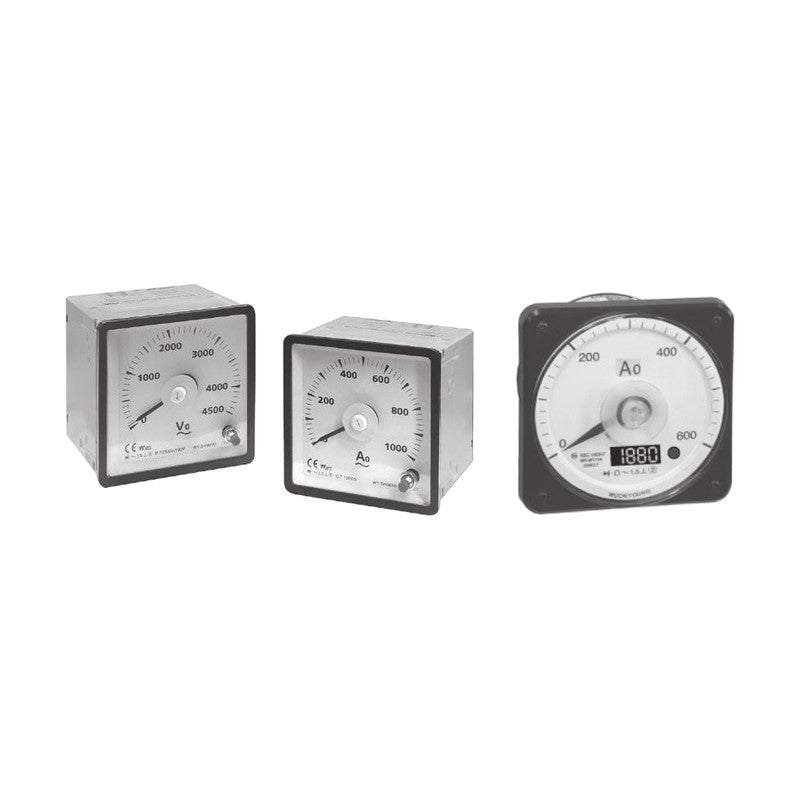

Woonyoung WYSH96/WYW11 Maximum Demand Zero-Phase Voltage and Current Meters

Woonyoung WYSH96/WYW11 Maximum Demand Zero-Phase Voltage and Current Meters

Maximum-demand analog meters that measure zero-phase voltage (Vo) or zero-phase current (Ao), memorize the peak and indicate it with a needle.

Key features

  • Measures zero-phase voltage (Vo) or zero-phase current (Ao)
  • Memorizes and indicates the maximum value
  • Continues measuring for about 4 hours after power loss (built-in battery)
  • DIN square (SH96) and wide-angle (W11) cases

Specifications

Aux. power AC/DC 110-220 V (+/-10%)
Frequency 50/60 Hz
Accuracy +/-1%
Memory time Approx. 4 h after power failure
Built-in battery 1150 mAh
Operating conditions 23 C +/-10%, 25-80% RH
Storage temperature -40 to +80 C
Reset Front push switch or rear terminal voltage input (AC/DC 110-220 V)
Burden 1 VA
Certifications CE
WYSH96-Vo Measurement: Zero-phase voltage (Vo) | Case: DIN square 96 mm | Input: AC 110 V, AC 190 V (GPT tertiary, direct) | Weight: 350 g
WYW11-VMD Measurement: Zero-phase voltage (Vo) | Case: Wide-angle 110 mm | Input: AC 110 V, AC 190 V (GPT tertiary, direct) | Weight: 350 g
WYSH96-Ao Measurement: Zero-phase current (Ao) | Case: DIN square 96 mm | Input: AC 5 A or 1 A | Weight: 400 g
WYW11-AMD Measurement: Zero-phase current (Ao) | Case: Wide-angle 110 mm | Input: AC 5 A or 1 A | Weight: 400 g
Analog Panel MetersWoonyoung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYSH96/WYW11 Maximum Demand Zero-Phase Voltage and Current Meters

Brand Woonyoung·Analog Panel Meters

Available part numbers (4)

WYSH96-Vo, WYW11-VMD, WYSH96-Ao, WYW11-AMD

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYSH96-VoMeasurement: Zero-phase voltage (Vo) | Case: DIN square 96 mm | Input: AC 110 V, AC 190 V (GPT tertiary, direct) | Weight: 350 g
WYW11-VMDMeasurement: Zero-phase voltage (Vo) | Case: Wide-angle 110 mm | Input: AC 110 V, AC 190 V (GPT tertiary, direct) | Weight: 350 g
WYSH96-AoMeasurement: Zero-phase current (Ao) | Case: DIN square 96 mm | Input: AC 5 A or 1 A | Weight: 400 g
WYW11-AMDMeasurement: Zero-phase current (Ao) | Case: Wide-angle 110 mm | Input: AC 5 A or 1 A | Weight: 400 g
