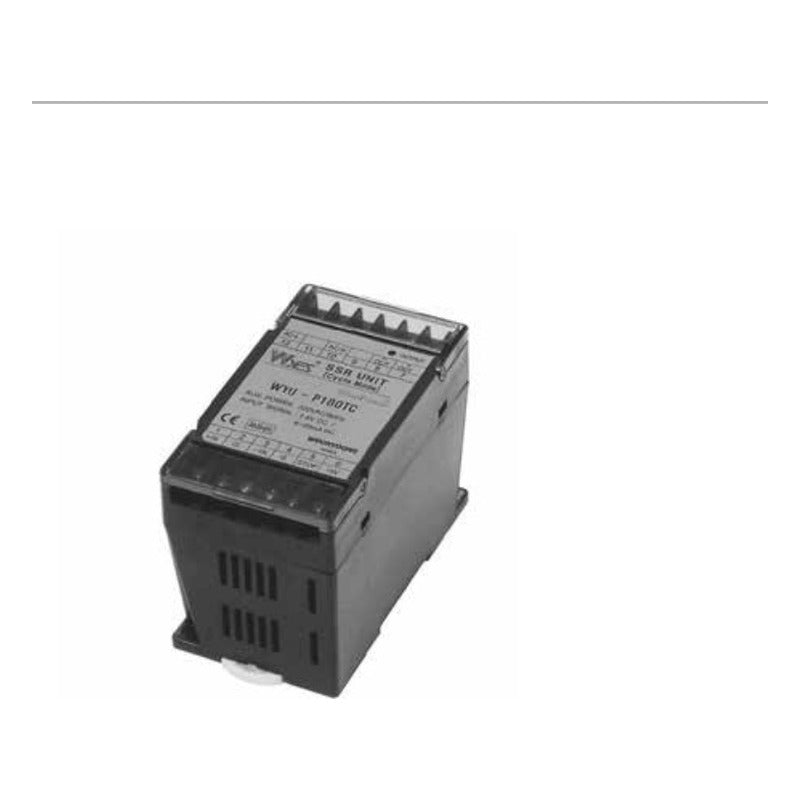

Woonyoung WYU-P180 Series SSR Control Unit for Thyristor Power Control

Woonyoung WYU-P180 Series SSR Control Unit for Thyristor Power Control

DIN-rail control unit that combines with a separate solid state relay to form an economical single- or three-phase thyristor power controller driven by 4-20 mA or 1-5 V signals.

Key features

  • Converts 4-20 mA or 1-5 V controller output into SSR firing signals
  • Phase-angle control version for single-phase SSRs
  • Zero-cross cycle control version for single- or three-phase SSRs
  • Supports manual control through an external variable resistor
  • LED indication of power or output status
  • DIN-rail mounting with terminal protection cover

Specifications

Aux. power AC 220V / 2VA
Control input 1-5 Vdc / 4-20 mAdc
Isolation resistance Input-output 100 MOhm (DC500V megger)
Dielectric withstand Input-output 2000 Vac / 1 min
Operating temperature 0 to 50 C
Storage temperature -10 to 65 C
Weight 0.3 kg
Output signal DC 12V pulse
WYU-P180AC Phase: 1-phase | Control: Phase mode (random type) | Display: Power ON LED | Compatible SSR: WY G/NG/LG/MG series (R4 type)
WYU-P180TC Phase: 1- or 3-phase | Control: Cycle mode (zero cross type) | Display: Output LED | Compatible SSR: WY G/H/3G/3H/LG/LH/L3G/L3H/NG/NH/N3G/N3H/MG/MH series (Z4 type)
Power Controller AccessoriesWoonyoung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYU-P180 Series SSR Control Unit for Thyristor Power Control

Brand Woonyoung·Power Controller Accessories

Available part numbers (2)

WYU-P180AC, WYU-P180TC

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYU-P180ACPhase: 1-phase | Control: Phase mode (random type) | Display: Power ON LED | Compatible SSR: WY G/NG/LG/MG series (R4 type)
WYU-P180TCPhase: 1- or 3-phase | Control: Cycle mode (zero cross type) | Display: Output LED | Compatible SSR: WY G/H/3G/3H/LG/LH/L3G/L3H/NG/NH/N3G/N3H/MG/MH series (Z4 type)
