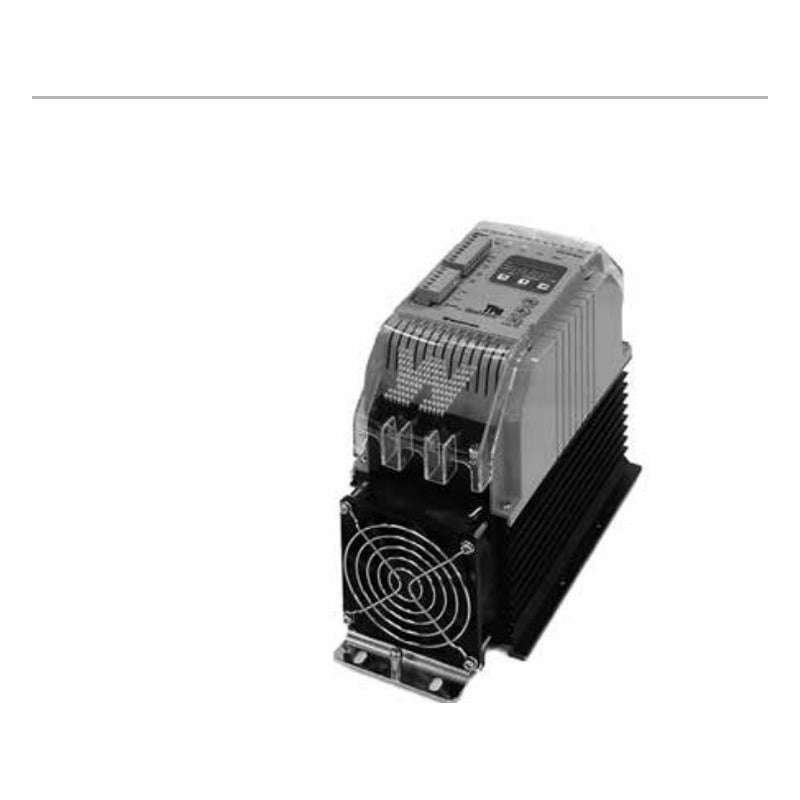

Woonyoung WYU-PG/PH TMI Series Three-Phase Thyristor Controller, Per-Phase Control, 40-160A

Three-phase thyristor power controller that controls each phase individually for single-phase heater loads, with selectable phase or cycle control and alarm functions.

Key features

Individual current control of each phase
Phase control and cycle control selectable in one unit
Overload, heater disconnection and unbalance detection
Alarm contacts for fault conditions
Soft start and soft up/down functions
RS-485 Modbus communication

Specifications

Module	SCR (6 arm)
Aux. power	200-240 Vac
Frequency	Auto-ranging 50/60 Hz
Control mode	Phase control / cycle
Soft start	Soft start 0-50 s, soft up/down 0-50 s
Load type	Resistive / inductive (transformer primary)
Control input	1-5 Vdc, DC 4-20mA, VR (10 kOhm), jog dial, Modbus 485
Communication	Modbus RS-485 R/W (9600-38400 bps)
Cooling	Fan cooling
Contact capacity	240VAC 5A / 24VDC 10A
Operating temperature	0-40 C (non-freezing), 35-85% RH
Weight	18 kg (as printed)

WYU-PG40TMI		Rated voltage: 100-240V \| Rated current: 40A \| Dimensions W x H x D: 110 x 270.5 x 194.6 mm
WYU-PG55TMI		Rated voltage: 100-240V \| Rated current: 55A \| Dimensions W x H x D: 110 x 270.5 x 194.6 mm
WYU-PG75TMI		Rated voltage: 100-240V \| Rated current: 75A \| Dimensions W x H x D: 110 x 270.5 x 194.6 mm
WYU-PG90TMI		Rated voltage: 100-240V \| Rated current: 90A \| Dimensions W x H x D: 140 x 360 x 230 mm
WYU-PG130TMI		Rated voltage: 100-240V \| Rated current: 130A \| Dimensions W x H x D: 140 x 385 x 230 mm
WYU-PG160TMI		Rated voltage: 100-240V \| Rated current: 160A \| Dimensions W x H x D: 140 x 385 x 230 mm
WYU-PH40TMI		Rated voltage: 360-460V \| Rated current: 40A \| Dimensions W x H x D: 110 x 270.5 x 194.6 mm
WYU-PH55TMI		Rated voltage: 360-460V \| Rated current: 55A \| Dimensions W x H x D: 110 x 270.5 x 194.6 mm
WYU-PH75TMI		Rated voltage: 360-460V \| Rated current: 75A \| Dimensions W x H x D: 110 x 270.5 x 194.6 mm
WYU-PH90TMI		Rated voltage: 360-460V \| Rated current: 90A \| Dimensions W x H x D: 140 x 360 x 230 mm
WYU-PH130TMI		Rated voltage: 360-460V \| Rated current: 130A \| Dimensions W x H x D: 140 x 385 x 230 mm
WYU-PH160TMI		Rated voltage: 360-460V \| Rated current: 160A \| Dimensions W x H x D: 140 x 385 x 230 mm

Thyristor Power ControllersWoonyoung

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYU-PG/PH TMI Series Three-Phase Thyristor Controller, Per-Phase Control, 40-160A

Brand Woonyoung·Thyristor Power Controllers

Available part numbers (12)

WYU-PG40TMI, WYU-PG55TMI, WYU-PG75TMI, WYU-PG90TMI, WYU-PG130TMI, WYU-PG160TMI, WYU-PH40TMI, WYU-PH55TMI, WYU-PH75TMI, WYU-PH90TMI + 2 more — see full table ↓
