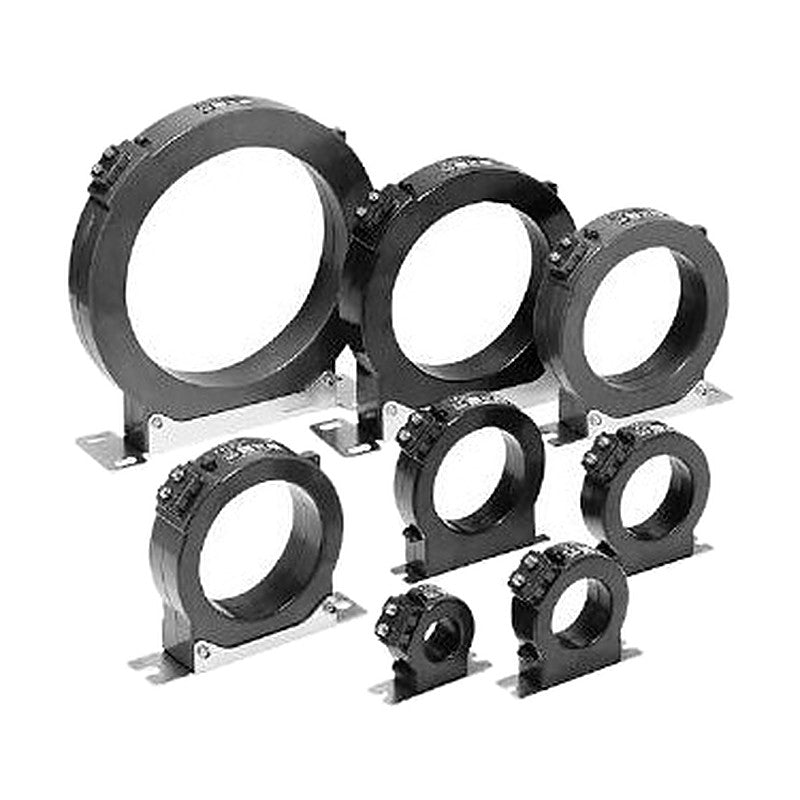

Woonyoung WYZR-030N~200N Round Zero-Phase Current Transformer, 200 mA / 1.5 mA

Woonyoung WYZR-030N~200N Round Zero-Phase Current Transformer, 200 mA / 1.5 mA

Cable-through round zero-phase current transformer (200 mA / 1.5 mA) with 30-200 mm inside diameter for protection relay (current output) applications.

Key features

  • Primary conductor passes through the core; detects zero-sequence (earth leakage) current
  • Silicon steel core with good permeability for precise output characteristics
  • Self-extinguishing ABS flame-retardant resin case (ABS and PC)
  • Lightweight construction without internal filler
  • Terminal cover for safety
  • KC and CE marked

Specifications

Operating temperature -10 to +60 C
Insulation resistance Secondary-earth DC 500 V megger, 100 MOhm or more
Impulse withstand Secondary-earth 6 kV (1.2/50 us), +/- 1 time
Rated output Primary 200 mA, secondary 1.5 mA
Accuracy +/-10%
Burden 0.5 VA
Dielectric withstand Secondary-earth AC 2,000 V / 1 min
Application Protection relay (current output)
Construction Round, cable-through
WYZR-030N Inside diameter: 30 mm | Rated current: 100 A | Cable 1P2W: 60 mm2 | Cable 1P3W/3P3W: 14 mm2 | Cable 3P4W: 8 mm2 | Weight: 0.2 kg
WYZR-050N Inside diameter: 50 mm | Rated current: 250 A | Cable 1P2W: 150 mm2 | Cable 1P3W/3P3W: 80 mm2 | Cable 3P4W: 38 mm2 | Weight: 0.2 kg
WYZR-065N Inside diameter: 65 mm | Rated current: 400 A | Cable 1P2W: 325 mm2 | Cable 1P3W/3P3W: 150 mm2 | Cable 3P4W: 100 mm2 | Weight: 0.3 kg
WYZR-080N Inside diameter: 80 mm | Rated current: 600 A | Cable 1P2W: 400 mm2 | Cable 1P3W/3P3W: 250 mm2 | Cable 3P4W: 200 mm2 | Weight: 0.4 kg
WYZR-100N Inside diameter: 100 mm | Rated current: 800 A | Cable 1P2W: 500 mm2 | Cable 1P3W/3P3W: 325 mm2 | Cable 3P4W: 250 mm2 | Weight: 0.6 kg
WYZR-120N Inside diameter: 120 mm | Rated current: 1000 A | Cable 1P2W: 950 mm2 | Cable 1P3W/3P3W: 850 mm2 | Cable 3P4W: 725 mm2 | Weight: 0.7 kg
WYZR-150N Inside diameter: 150 mm | Rated current: 1200 A | Cable 1P2W: 1200 mm2 | Cable 1P3W/3P3W: 1000 mm2 | Cable 3P4W: 850 mm2 | Weight: 1.0 kg
WYZR-200N Inside diameter: 200 mm | Rated current: 2000 A | Cable 1P2W: 1500 mm2 | Cable 1P3W/3P3W: 1200 mm2 | Cable 3P4W: 950 mm2 | Weight: 1.9 kg
Zero-Phase Current TransformersWoonyoung
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYZR-030N~200N Round Zero-Phase Current Transformer, 200 mA / 1.5 mA

Brand Woonyoung·Zero-Phase Current Transformers

Available part numbers (8)

WYZR-030N, WYZR-050N, WYZR-065N, WYZR-080N, WYZR-100N, WYZR-120N, WYZR-150N, WYZR-200N

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYZR-030NInside diameter: 30 mm | Rated current: 100 A | Cable 1P2W: 60 mm2 | Cable 1P3W/3P3W: 14 mm2 | Cable 3P4W: 8 mm2 | Weight: 0.2 kg
WYZR-050NInside diameter: 50 mm | Rated current: 250 A | Cable 1P2W: 150 mm2 | Cable 1P3W/3P3W: 80 mm2 | Cable 3P4W: 38 mm2 | Weight: 0.2 kg
WYZR-065NInside diameter: 65 mm | Rated current: 400 A | Cable 1P2W: 325 mm2 | Cable 1P3W/3P3W: 150 mm2 | Cable 3P4W: 100 mm2 | Weight: 0.3 kg
WYZR-080NInside diameter: 80 mm | Rated current: 600 A | Cable 1P2W: 400 mm2 | Cable 1P3W/3P3W: 250 mm2 | Cable 3P4W: 200 mm2 | Weight: 0.4 kg
WYZR-100NInside diameter: 100 mm | Rated current: 800 A | Cable 1P2W: 500 mm2 | Cable 1P3W/3P3W: 325 mm2 | Cable 3P4W: 250 mm2 | Weight: 0.6 kg
WYZR-120NInside diameter: 120 mm | Rated current: 1000 A | Cable 1P2W: 950 mm2 | Cable 1P3W/3P3W: 850 mm2 | Cable 3P4W: 725 mm2 | Weight: 0.7 kg
WYZR-150NInside diameter: 150 mm | Rated current: 1200 A | Cable 1P2W: 1200 mm2 | Cable 1P3W/3P3W: 1000 mm2 | Cable 3P4W: 850 mm2 | Weight: 1.0 kg
WYZR-200NInside diameter: 200 mm | Rated current: 2000 A | Cable 1P2W: 1500 mm2 | Cable 1P3W/3P3W: 1200 mm2 | Cable 3P4W: 950 mm2 | Weight: 1.9 kg
