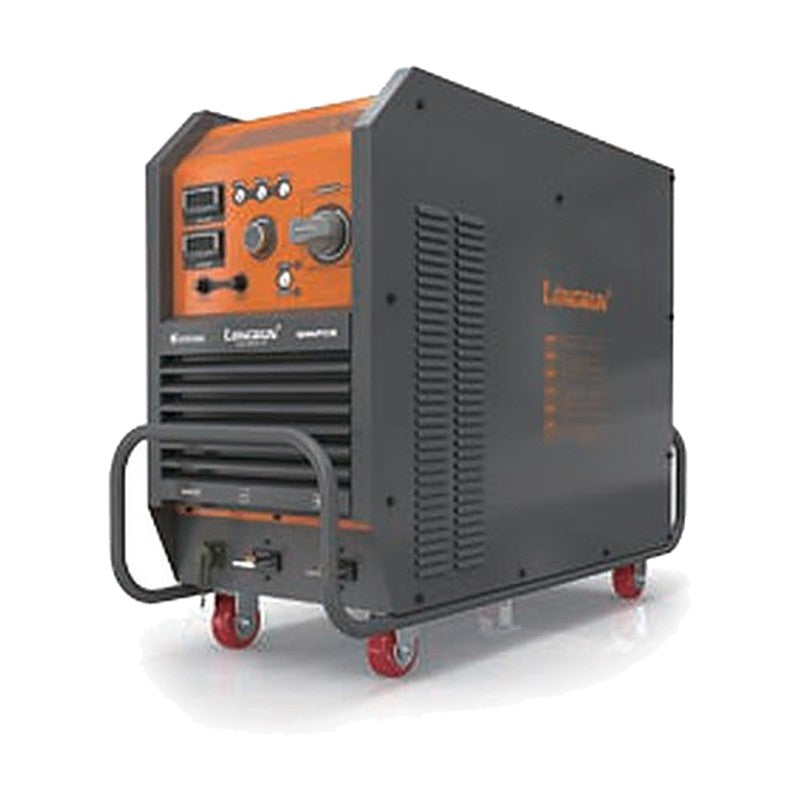

Worldweld Submerged Arc Welding Power Source (1000-2000A)
Worldweld Submerged Arc Welding Power Source (1000-2000A)
Longrun submerged arc welding (SAW) power sources for heavy plate, pipe and structural fabrication.
Key features
- The range includes AC SCR (TAS), AC moving-core (WAS), DC SCR (WDS) and DC inverter (PDS) machines
- Output spans 1000 A to 2000 A at 80% rated duty cycle
Specifications
| Rated duty cycle | 80% |
|---|
| 1500TAS | Type: AC SCR | Input voltage: 220/380/440V 1-phase | Input capacity: 135kVA | No-load voltage: 95V | Output current: 150~1500A | Rated duty cycle: 80% | Dimensions (WxDxH): 570 x 1100 x 1450mm | Weight: 670kg | |
| 2000TAS | Type: AC SCR | Input voltage: 220/380/440V 1-phase | Input capacity: 180kVA | No-load voltage: 95V | Output current: 150~2000A | Rated duty cycle: 80% | Dimensions (WxDxH): 570 x 1100 x 1450mm | Weight: 690kg | |
| 1500WAS | Type: AC moving core | Input voltage: 220/380/440V 1-phase | Input capacity: 135kVA | No-load voltage: 95V | Output current: 150~1500A | Rated duty cycle: 80% | Dimensions (WxDxH): 800 x 1100 x 1450mm | Weight: 700kg | |
| 2000WAS | Type: AC moving core | Input voltage: 220/380/440V 1-phase | Input capacity: 180kVA | No-load voltage: 95V | Output current: 150~2000A | Rated duty cycle: 80% | Dimensions (WxDxH): 800 x 1100 x 1450mm | Weight: 720kg | |
| 1000WDS | Type: DC SCR | Input voltage: 220/380/440V 3-phase | Input capacity: 80kVA | No-load voltage: 82V | Output current: 100~1000A | Rated duty cycle: 80% | Dimensions (WxDxH): 720 x 1100 x 1270mm | Weight: 415kg | |
| 1500WDS | Type: DC SCR | Input voltage: 220/380/440V 3-phase | Input capacity: 120kVA | No-load voltage: 82V | Output current: 100~1500A | Rated duty cycle: 80% | Dimensions (WxDxH): 800 x 1100 x 1450mm | Weight: 700kg | |
| 2000WDS | Type: DC SCR | Input voltage: 220/380/440V 3-phase | Input capacity: 160kVA | No-load voltage: 82V | Output current: 200~2000A | Rated duty cycle: 80% | Dimensions (WxDxH): 800 x 1100 x 1450mm | Weight: 720kg | |
| 1200PDS | Type: DC inverter | Input voltage: 220/380/440V 3-phase | Input capacity: 67kVA | No-load voltage: 82V | Output current: DC 100~1000A | Rated duty cycle: 80% | Dimensions (WxDxH): 420 x 1060 x 800mm | Weight: 150kg | |
| 1500PDS | Type: DC inverter | Input voltage: 220/380/440V 3-phase | Input capacity: 97kVA | No-load voltage: 123V | Output current: DC 100~1500A | Rated duty cycle: 80% | Dimensions (WxDxH): 420 x 1060 x 840mm | Weight: 170kg |
Submerged Arc WeldersWorldweld
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Worldweld Submerged Arc Welding Power Source (1000-2000A)
Available part numbers (9)
1500TAS, 2000TAS, 1500WAS, 2000WAS, 1000WDS, 1500WDS, 2000WDS, 1200PDS, 1500PDS
How to order
Send the Worldweld part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Worldweld
Submerged Arc Welders
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 1500TAS | Type: AC SCR | Input voltage: 220/380/440V 1-phase | Input capacity: 135kVA | No-load voltage: 95V | Output current: 150~1500A | Rated duty cycle: 80% | Dimensions (WxDxH): 570 x 1100 x 1450mm | Weight: 670kg | ||
| 2000TAS | Type: AC SCR | Input voltage: 220/380/440V 1-phase | Input capacity: 180kVA | No-load voltage: 95V | Output current: 150~2000A | Rated duty cycle: 80% | Dimensions (WxDxH): 570 x 1100 x 1450mm | Weight: 690kg | ||
| 1500WAS | Type: AC moving core | Input voltage: 220/380/440V 1-phase | Input capacity: 135kVA | No-load voltage: 95V | Output current: 150~1500A | Rated duty cycle: 80% | Dimensions (WxDxH): 800 x 1100 x 1450mm | Weight: 700kg | ||
| 2000WAS | Type: AC moving core | Input voltage: 220/380/440V 1-phase | Input capacity: 180kVA | No-load voltage: 95V | Output current: 150~2000A | Rated duty cycle: 80% | Dimensions (WxDxH): 800 x 1100 x 1450mm | Weight: 720kg | ||
| 1000WDS | Type: DC SCR | Input voltage: 220/380/440V 3-phase | Input capacity: 80kVA | No-load voltage: 82V | Output current: 100~1000A | Rated duty cycle: 80% | Dimensions (WxDxH): 720 x 1100 x 1270mm | Weight: 415kg | ||
| 1500WDS | Type: DC SCR | Input voltage: 220/380/440V 3-phase | Input capacity: 120kVA | No-load voltage: 82V | Output current: 100~1500A | Rated duty cycle: 80% | Dimensions (WxDxH): 800 x 1100 x 1450mm | Weight: 700kg | ||
| 2000WDS | Type: DC SCR | Input voltage: 220/380/440V 3-phase | Input capacity: 160kVA | No-load voltage: 82V | Output current: 200~2000A | Rated duty cycle: 80% | Dimensions (WxDxH): 800 x 1100 x 1450mm | Weight: 720kg | ||
| 1200PDS | Type: DC inverter | Input voltage: 220/380/440V 3-phase | Input capacity: 67kVA | No-load voltage: 82V | Output current: DC 100~1000A | Rated duty cycle: 80% | Dimensions (WxDxH): 420 x 1060 x 800mm | Weight: 150kg | ||
| 1500PDS | Type: DC inverter | Input voltage: 220/380/440V 3-phase | Input capacity: 97kVA | No-load voltage: 123V | Output current: DC 100~1500A | Rated duty cycle: 80% | Dimensions (WxDxH): 420 x 1060 x 840mm | Weight: 170kg |
Need a different model, or a part not listed here? Send us your parts list →
Related products
All Welding & Soldering →-
WorldweldWorldweld LF Series Wire Feeder4 models -
WorldweldWorldweld Submerged Arc Welding Carriage2 models -
WorldweldWorldweld WC2 Series Water Cooler for Welding Torches4 models -
WorldweldWorldweld Inverter Air Plasma Cutter (40-200A)5 models -
WorldweldWorldweld LSP Series Pneumatic Spot Welder (50-150 kVA)4 models -

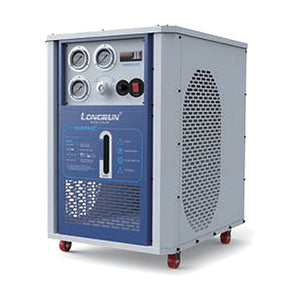

WorldweldWorldweld WC Series Water Chiller for Welding Equipment2 models
