• Worldweld WC2 Series Water Cooler for Welding Torches
1 1

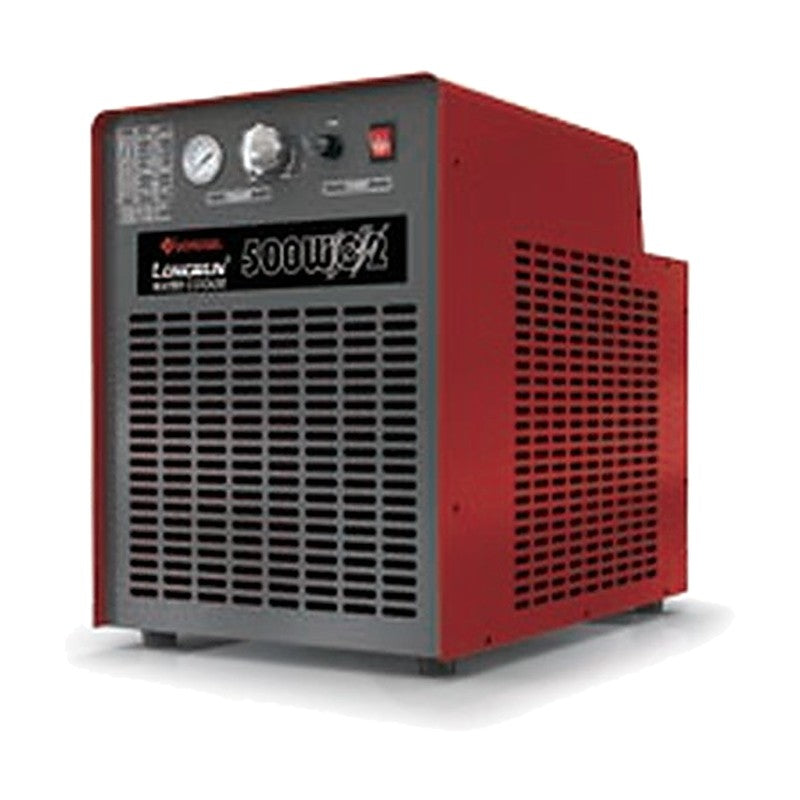

Worldweld WC2 Series Water Cooler for Welding Torches

Worldweld WC2 Series Water Cooler for Welding Torches

The Longrun WC2 series are recirculating water coolers for water-cooled TIG, MIG and plasma torches.

Key features

  • They use radiator forced-air cooling and run on 220V single-phase power
  • Cooling capacity ranges from 250 kcal/hr to 1500 kcal/hr with 12 L to 50 L tanks

Specifications

Input voltage 220V 1-phase
Cooling method Radiator forced-air cooling
250WC2 Input voltage: 220V 1-phase | Flow rate: 5.5L/min | Discharge pressure: 1kg/cm2 | Cooling capacity: 250kcal/hr | Tank capacity: 12L | Cooling method: Radiator forced-air cooling | Pump capacity: 80W | Dimensions (WxDxH): 295 x 445 x 350mm | Weight: 12kg
500WC2 Input voltage: 220V 1-phase | Flow rate: 6.5L/min | Discharge pressure: 1~3kg/cm2 | Cooling capacity: 500kcal/hr | Tank capacity: 25L | Cooling method: Radiator forced-air cooling | Pump capacity: 350W | Dimensions (WxDxH): 330 x 660 x 460mm | Weight: 21kg
700WC2 Input voltage: 220V 1-phase | Flow rate: 6.5L/min | Discharge pressure: 1~3kg/cm2 | Cooling capacity: 700kcal/hr | Tank capacity: 25L | Cooling method: Radiator forced-air cooling | Pump capacity: 350W | Dimensions (WxDxH): 350 x 600 x 640mm | Weight: 27kg
900WC2 Input voltage: 220V 1-phase | Flow rate: 6.5L/min | Discharge pressure: 1~3kg/cm2 | Cooling capacity: 1500kcal/hr | Tank capacity: 50L | Cooling method: Radiator forced-air cooling | Pump capacity: 350W | Dimensions (WxDxH): 475 x 655 x 780mm | Weight: 48kg
Welding Water CoolersWorldweld
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Worldweld WC2 Series Water Cooler for Welding Torches

Brand Worldweld·Welding Water Coolers

Available part numbers (4)

250WC2, 500WC2, 700WC2, 900WC2

How to order

Send the Worldweld part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
250WC2Input voltage: 220V 1-phase | Flow rate: 5.5L/min | Discharge pressure: 1kg/cm2 | Cooling capacity: 250kcal/hr | Tank capacity: 12L | Cooling method: Radiator forced-air cooling | Pump capacity: 80W | Dimensions (WxDxH): 295 x 445 x 350mm | Weight: 12kg
500WC2Input voltage: 220V 1-phase | Flow rate: 6.5L/min | Discharge pressure: 1~3kg/cm2 | Cooling capacity: 500kcal/hr | Tank capacity: 25L | Cooling method: Radiator forced-air cooling | Pump capacity: 350W | Dimensions (WxDxH): 330 x 660 x 460mm | Weight: 21kg
700WC2Input voltage: 220V 1-phase | Flow rate: 6.5L/min | Discharge pressure: 1~3kg/cm2 | Cooling capacity: 700kcal/hr | Tank capacity: 25L | Cooling method: Radiator forced-air cooling | Pump capacity: 350W | Dimensions (WxDxH): 350 x 600 x 640mm | Weight: 27kg
900WC2Input voltage: 220V 1-phase | Flow rate: 6.5L/min | Discharge pressure: 1~3kg/cm2 | Cooling capacity: 1500kcal/hr | Tank capacity: 50L | Cooling method: Radiator forced-air cooling | Pump capacity: 350W | Dimensions (WxDxH): 475 x 655 x 780mm | Weight: 48kg
