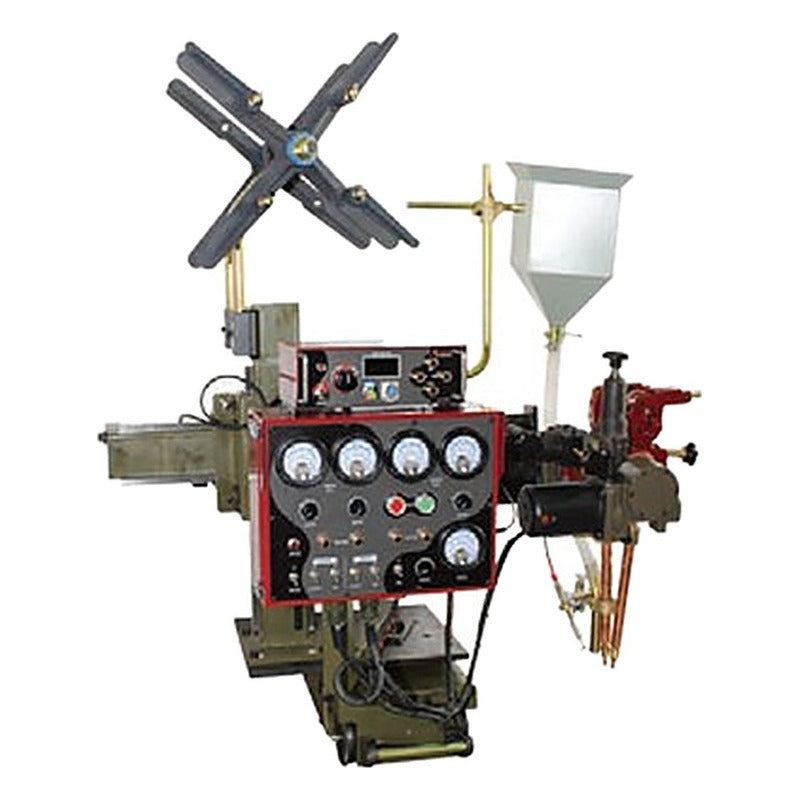

Worldweld Submerged Arc Welding Carriage

Worldweld Submerged Arc Welding Carriage

Self-propelled submerged arc welding carriages (tractors) for use with AC or DC SAW power sources.

Key features

  • They feature SCR travel speed control, a flux hopper and a DC wire feed motor
  • The 25CT handles 4.0-6.4 mm wire for tandem welding, while the 45CA handles 2.4-4.8 mm wire for butt joints

Specifications

Speed control SCR control
Welding power source AC or DC
Worldweld Submerged Arc Welding Carriage reference 2
25CT Wire diameter: 4.0~6.4mm | Travel speed: 0~150cm/min | Nozzle adjustment: 75/100 vertical/horizontal | Hopper capacity: 12L | Wire feed motor: DC 100W | Speed control: SCR control | Welding power source: AC or DC | Application: Tandem | Dimensions (WxDxH): 1530 x 730 x 1500mm | Weight: 170kg
45CA Wire diameter: 2.4~4.8mm | Travel speed: 0~100cm/min | Nozzle adjustment: 50/50 vertical/horizontal | Hopper capacity: 6L | Wire feed motor: DC 60W | Speed control: SCR control | Welding power source: AC or DC | Application: Butt joint | Dimensions (WxDxH): 960 x 450 x 690mm | Weight: 50kg
Welding CarriagesWorldweld
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Worldweld Submerged Arc Welding Carriage

Brand Worldweld·Welding Carriages

Available part numbers (2)

25CT, 45CA

How to order

Send the Worldweld part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Worldweld Submerged Arc Welding Carriage reference 2
0 selected
RFQ List (0)
Product codeSpec
25CTWire diameter: 4.0~6.4mm | Travel speed: 0~150cm/min | Nozzle adjustment: 75/100 vertical/horizontal | Hopper capacity: 12L | Wire feed motor: DC 100W | Speed control: SCR control | Welding power source: AC or DC | Application: Tandem | Dimensions (WxDxH): 1530 x 730 x 1500mm | Weight: 170kg
45CAWire diameter: 2.4~4.8mm | Travel speed: 0~100cm/min | Nozzle adjustment: 50/50 vertical/horizontal | Hopper capacity: 6L | Wire feed motor: DC 60W | Speed control: SCR control | Welding power source: AC or DC | Application: Butt joint | Dimensions (WxDxH): 960 x 450 x 690mm | Weight: 50kg
