• YASKAWA A1000 High Performance Vector Control AC Drive
1 1

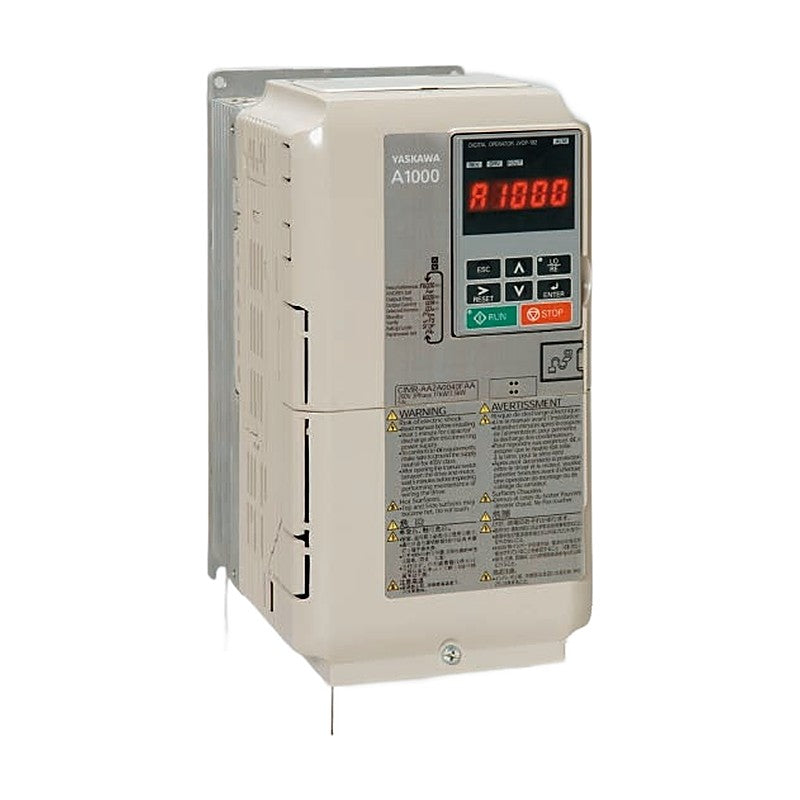

YASKAWA A1000 200 V Class AC Drive (CIMR-AA2A, 0.4-110 kW)

YASKAWA A1000 200 V Class AC Drive (CIMR-AA2A, 0.4-110 kW)

The YASKAWA A1000 200 V class is a high-performance current vector control AC drive for three-phase 200-240 Vac motors from 0.4 to 110 kW.

Key features

  • Current vector control for induction, PM and synchronous motors: V/f, V/f with PG, Open/Closed Loop Vector, and PM vector modes
  • Dual rating selected by parameter C6-01: Normal Duty 120% for 60 s, Heavy Duty 150% for 60 s
  • Two Safe Disable inputs and EDM output per ISO/EN13849-1 Cat.3 PLd and IEC/EN61508 SIL2
  • MEMOBUS/Modbus (RTU) RS-422/485 built in, up to 115.2 kbps; removable terminal block with parameter backup
  • Braking transistor built in for CIMR-AA2A0004 to 2A0138; DC reactor built in for 2A0110 and above
  • Model codes shown with environmental spec A (Standard); K, M, N, P, R, S, T environmental versions and Finless (IP00) L type available on request

Specifications

Series A1000 (CIMR-AA)
Input power 3-phase 200-240 Vac, 50/60 Hz
DC power supply 270 to 340 Vdc
Max. output frequency 400 Hz
Carrier frequency 1-15 kHz (1-10 kHz for 2A0169 up)
Overload ND 120% 60 s / HD 150% 60 s
Region code A (Japan)
Environmental spec A (Standard)
Design revision A
Source YASKAWA A1000 catalogue, p. 14, 26-33
CIMR-AA2A0004 Base model (specify enclosure) | Enclosure letters: F | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3.2 A
CIMR-AA2A0004FAA Enclosure: UL Type 1 (IP20 w/o top cover) | Availability: Standard | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3.2 A | Size/weight: 140 x 260 x 147 mm, 3.1 kg
CIMR-AA2A0006 Base model (specify enclosure) | Enclosure letters: F | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIMR-AA2A0006FAA Enclosure: UL Type 1 (IP20 w/o top cover) | Availability: Standard | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A | Size/weight: 140 x 260 x 147 mm, 3.1 kg
CIMR-AA2A0008 Base model (specify enclosure) | Enclosure letters: F | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A
CIMR-AA2A0008FAA Enclosure: UL Type 1 (IP20 w/o top cover) | Availability: Standard | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A | Size/weight: 140 x 260 x 147 mm, 3.2 kg
CIMR-AA2A0010 Base model (specify enclosure) | Enclosure letters: F | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIMR-AA2A0010FAA Enclosure: UL Type 1 (IP20 w/o top cover) | Availability: Standard | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A | Size/weight: 140 x 260 x 147 mm, 3.2 kg
CIMR-AA2A0012 Base model (specify enclosure) | Enclosure letters: F | ND: 3 kW / 12 A | HD: 2.2 kW / 11 A
CIMR-AA2A0012FAA Enclosure: UL Type 1 (IP20 w/o top cover) | Availability: Standard | ND: 3 kW / 12 A | HD: 2.2 kW / 11 A | Size/weight: 140 x 260 x 147 mm, 3.2 kg
CIMR-AA2A0018 Base model (specify enclosure) | Enclosure letters: F | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A
CIMR-AA2A0018FAA Enclosure: UL Type 1 (IP20 w/o top cover) | Availability: Standard | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A | Size/weight: 140 x 260 x 164 mm, 3.5 kg
CIMR-AA2A0021 Base model (specify enclosure) | Enclosure letters: F | ND: 5.5 kW / 21 A | HD: 3.7 kW / 17.5 A
CIMR-AA2A0021FAA Enclosure: UL Type 1 (IP20 w/o top cover) | Availability: Standard | ND: 5.5 kW / 21 A | HD: 3.7 kW / 17.5 A | Size/weight: 140 x 260 x 164 mm, 3.5 kg
CIMR-AA2A0030 Base model (specify enclosure) | Enclosure letters: F | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A
CIMR-AA2A0030FAA Enclosure: UL Type 1 (IP20 w/o top cover) | Availability: Standard | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A | Size/weight: 140 x 260 x 167 mm, 4 kg
CIMR-AA2A0040 Base model (specify enclosure) | Enclosure letters: F | ND: 11 kW / 40 A | HD: 7.5 kW / 33 A
CIMR-AA2A0040FAA Enclosure: UL Type 1 (IP20 w/o top cover) | Availability: Standard | ND: 11 kW / 40 A | HD: 7.5 kW / 33 A | Size/weight: 140 x 260 x 167 mm, 4 kg
CIMR-AA2A0056 Base model (specify enclosure) | Enclosure letters: F | ND: 15 kW / 56 A | HD: 11 kW / 47 A
CIMR-AA2A0056FAA Enclosure: UL Type 1 (IP20 w/o top cover) | Availability: Standard | ND: 15 kW / 56 A | HD: 11 kW / 47 A | Size/weight: 180 x 300 x 187 mm, 5.6 kg
CIMR-AA2A0069 Base model (specify enclosure) | Enclosure letters: F | ND: 18.5 kW / 69 A | HD: 15 kW / 60 A
CIMR-AA2A0069FAA Enclosure: UL Type 1 (IP20 w/o top cover) | Availability: Standard | ND: 18.5 kW / 69 A | HD: 15 kW / 60 A | Size/weight: 220 x 350 x 197 mm, 8.7 kg
CIMR-AA2A0081 Base model (specify enclosure) | Enclosure letters: F | ND: 22 kW / 81 A | HD: 18.5 kW / 75 A
CIMR-AA2A0081FAA Enclosure: UL Type 1 (IP20 w/o top cover) | Availability: Standard | ND: 22 kW / 81 A | HD: 18.5 kW / 75 A | Size/weight: 220 x 365 x 197 mm, 9.7 kg
CIMR-AA2A0110 Base model (specify enclosure) | Enclosure letters: A, F | ND: 30 kW / 110 A | HD: 22 kW / 85 A
CIMR-AA2A0110AAA Enclosure: IP00 open-chassis | Availability: Standard | ND: 30 kW / 110 A | HD: 22 kW / 85 A | Size/weight: 250 x 400 x 258 mm, 21 kg
CIMR-AA2A0110FAA Enclosure: UL Type 1 | Availability: Made to order | ND: 30 kW / 110 A | HD: 22 kW / 85 A | Size/weight: 254 x 534 x 258 mm, 23 kg
CIMR-AA2A0138 Base model (specify enclosure) | Enclosure letters: A, F | ND: 37 kW / 138 A | HD: 30 kW / 115 A
CIMR-AA2A0138AAA Enclosure: IP00 open-chassis | Availability: Standard | ND: 37 kW / 138 A | HD: 30 kW / 115 A | Size/weight: 275 x 450 x 258 mm, 25 kg
CIMR-AA2A0138FAA Enclosure: UL Type 1 | Availability: Made to order | ND: 37 kW / 138 A | HD: 30 kW / 115 A | Size/weight: 279 x 614 x 258 mm, 28 kg
CIMR-AA2A0169 Base model (specify enclosure) | Enclosure letters: A, F | ND: 45 kW / 169 A | HD: 37 kW / 145 A
CIMR-AA2A0169AAA Enclosure: IP00 open-chassis | Availability: Standard | ND: 45 kW / 169 A | HD: 37 kW / 145 A | Size/weight: 325 x 550 x 283 mm, 37 kg
CIMR-AA2A0169FAA Enclosure: UL Type 1 | Availability: Made to order | ND: 45 kW / 169 A | HD: 37 kW / 145 A | Size/weight: 329 x 730 x 283 mm, 41 kg
CIMR-AA2A0211 Base model (specify enclosure) | Enclosure letters: A, F | ND: 55 kW / 211 A | HD: 45 kW / 180 A
CIMR-AA2A0211AAA Enclosure: IP00 open-chassis | Availability: Standard | ND: 55 kW / 211 A | HD: 45 kW / 180 A | Size/weight: 325 x 550 x 283 mm, 38 kg
CIMR-AA2A0211FAA Enclosure: UL Type 1 | Availability: Made to order | ND: 55 kW / 211 A | HD: 45 kW / 180 A | Size/weight: 329 x 730 x 283 mm, 42 kg
CIMR-AA2A0250 Base model (specify enclosure) | Enclosure letters: A, F | ND: 75 kW / 250 A | HD: 55 kW / 215 A
CIMR-AA2A0250AAA Enclosure: IP00 open-chassis | Availability: Standard | ND: 75 kW / 250 A | HD: 55 kW / 215 A | Size/weight: 450 x 705 x 330 mm, 76 kg
CIMR-AA2A0250FAA Enclosure: UL Type 1 | Availability: Made to order | ND: 75 kW / 250 A | HD: 55 kW / 215 A | Size/weight: 456 x 960 x 330 mm, 83 kg
CIMR-AA2A0312 Base model (specify enclosure) | Enclosure letters: A, F | ND: 90 kW / 312 A | HD: 75 kW / 283 A
CIMR-AA2A0312AAA Enclosure: IP00 open-chassis | Availability: Standard | ND: 90 kW / 312 A | HD: 75 kW / 283 A | Size/weight: 450 x 705 x 330 mm, 80 kg
CIMR-AA2A0312FAA Enclosure: UL Type 1 | Availability: Made to order | ND: 90 kW / 312 A | HD: 75 kW / 283 A | Size/weight: 456 x 960 x 330 mm, 88 kg
CIMR-AA2A0360 Base model (specify enclosure) | Enclosure letters: A, F | ND: 110 kW / 360 A | HD: 90 kW / 346 A
CIMR-AA2A0360AAA Enclosure: IP00 open-chassis | Availability: Order-made | ND: 110 kW / 360 A | HD: 90 kW / 346 A | Size/weight: 500 x 800 x 350 mm, 98 kg
CIMR-AA2A0360FAA Enclosure: UL Type 1 | Availability: Made to order | ND: 110 kW / 360 A | HD: 90 kW / 346 A | Size/weight: 504 x 1168 x 350 mm, 108 kg
CIMR-AA2A0415 Base model (specify enclosure) | Enclosure letters: A | ND: 110 kW / 415 A | HD: 110 kW / 415 A
CIMR-AA2A0415AAA Enclosure: IP00 open-chassis | Availability: Order-made | ND: 110 kW / 415 A | HD: 110 kW / 415 A | Size/weight: 500 x 800 x 350 mm, 99 kg
CIMR-AT2A0004 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0004
CIMR-AT2A0006 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0006
CIMR-AT2A0008 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0008
CIMR-AT2A0010 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0010
CIMR-AT2A0012 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0012
CIMR-AT2A0018 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0018
CIMR-AT2A0021 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0021
CIMR-AT2A0030 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0030
CIMR-AT2A0040 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0040
CIMR-AT2A0056 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0056
CIMR-AT2A0069 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0069
CIMR-AT2A0081 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0081
CIMR-AT2A0110 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0110
CIMR-AT2A0138 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0138
CIMR-AT2A0169 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0169
CIMR-AT2A0211 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0211
CIMR-AT2A0250 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0250
CIMR-AT2A0312 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0312
CIMR-AT2A0360 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0360
CIMR-AT2A0415 Legacy code (region T, not in current catalogue) | Current base model: CIMR-AA2A0415
AC DrivesYASKAWA
67 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA A1000 200 V Class AC Drive (CIMR-AA2A, 0.4-110 kW)

Brand YASKAWA·AC Drives

Available part numbers (67)

CIMR-AA2A0004, CIMR-AA2A0004FAA, CIMR-AA2A0006, CIMR-AA2A0006FAA, CIMR-AA2A0008, CIMR-AA2A0008FAA, CIMR-AA2A0010, CIMR-AA2A0010FAA, CIMR-AA2A0012, CIMR-AA2A0012FAA + 57 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
