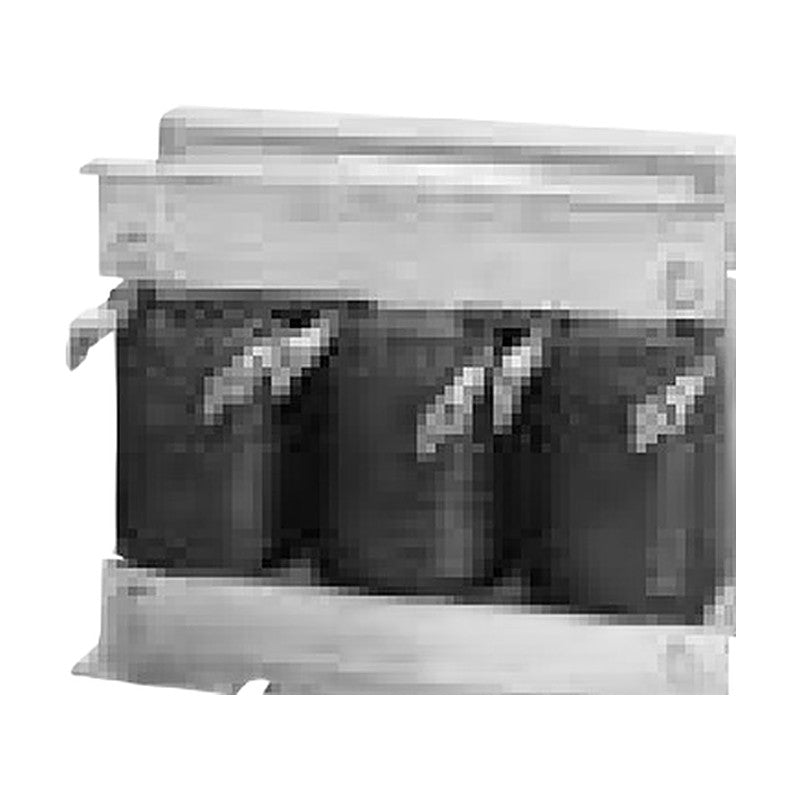

YASKAWA D1000 Input AC Reactors (Standard Configuration Devices)

YASKAWA D1000 Input AC Reactors (Standard Configuration Devices)

Input AC reactors 1 (UZBA-B) and 2 that are required standard configuration devices for the D1000 power regenerative converter; select according to D1000 capacity.

Specifications

Use Standard configuration device for D1000 (required)
100-106-071 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 200 V | For D1000 model: CIMR-DA2A0005 | Rated current: 15 A | Inductance: 2.45 mH | Weight: 8.2 kg
100-106-072 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 200 V | For D1000 model: CIMR-DA2A0010 | Rated current: 29 A | Inductance: 1.27 mH | Weight: 14 kg
100-106-073 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 200 V | For D1000 model: CIMR-DA2A0020 | Rated current: 57 A | Inductance: 0.64 mH | Weight: 28 kg
100-106-074 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 200 V | For D1000 model: CIMR-DA2A0030 | Rated current: 83 A | Inductance: 0.44 mH | Weight: 38 kg
100-106-075 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 200 V | For D1000 model: CIMR-DA2A0050 | Rated current: 140 A | Inductance: 0.26 mH | Weight: 65 kg
100-106-076 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 200 V | For D1000 model: CIMR-DA2A0065 | Rated current: 200 A | Inductance: 0.18 mH | Weight: 79 kg
100-106-077 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 200 V | For D1000 model: CIMR-DA2A0090 | Rated current: 270 A | Inductance: 0.14 mH | Weight: 102 kg
100-106-078 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 200 V | For D1000 model: CIMR-DA2A0130 | Rated current: 400 A | Inductance: 0.09 mH | Weight: 164 kg
100-106-079 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 400 V | For D1000 model: CIMR-DA4A0005 | Rated current: 8 A | Inductance: 9.19 mH | Weight: 7.1 kg
100-106-080 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 400 V | For D1000 model: CIMR-DA4A0010 | Rated current: 16 A | Inductance: 4.59 mH | Weight: 13 kg
100-106-081 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 400 V | For D1000 model: CIMR-DA4A0020 | Rated current: 30 A | Inductance: 2.45 mH | Weight: 26 kg
100-106-082 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 400 V | For D1000 model: CIMR-DA4A0030 | Rated current: 43 A | Inductance: 1.71 mH | Weight: 34 kg
100-106-083 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 400 V | For D1000 model: CIMR-DA4A0040 | Rated current: 58 A | Inductance: 1.27 mH | Weight: 44 kg
100-106-084 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 400 V | For D1000 model: CIMR-DA4A0060 | Rated current: 86 A | Inductance: 0.85 mH | Weight: 56 kg
100-106-085 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 400 V | For D1000 model: CIMR-DA4A0100 | Rated current: 145 A | Inductance: 0.51 mH | Weight: 87 kg
100-106-086 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 400 V | For D1000 model: CIMR-DA4A0130 | Rated current: 210 A | Inductance: 0.35 mH | Weight: 122 kg
100-106-087 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 400 V | For D1000 model: CIMR-DA4A0185 | Rated current: 300 A | Inductance: 0.25 mH | Weight: 150 kg
100-106-088 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 400 V | For D1000 model: CIMR-DA4A0270 | Rated current: 410 A | Inductance: 0.18 mH | Weight: 222 kg
100-106-089 Type: Input AC reactor 1 (UZBA-B) | Voltage class: 400 V | For D1000 model: CIMR-DA4A0370 (1 pc) / CIMR-DA4A0630 (2 pcs) | Rated current: 560 A | Inductance: 0.13 mH | Weight: 293 kg
100-106-090 Type: Input AC reactor 2 | Voltage class: 400 V | For D1000 model: CIMR-DA4A0270 | Rated current: 410 A | Inductance: 0.06 mH | Weight: 60 kg
100-106-091 Type: Input AC reactor 2 | Voltage class: 400 V | For D1000 model: CIMR-DA4A0370 | Rated current: 560 A | Inductance: 0.05 mH | Weight: 102 kg
100-106-092 Type: Input AC reactor 2 | Voltage class: 400 V | For D1000 model: CIMR-DA4A0630 | Rated current: 1140 A | Inductance: 0.02 mH | Weight: 172 kg
