YASKAWA EZZ020800 Attachment for External Heatsink Mounting

YASKAWA EZZ020800 Attachment for External Heatsink Mounting

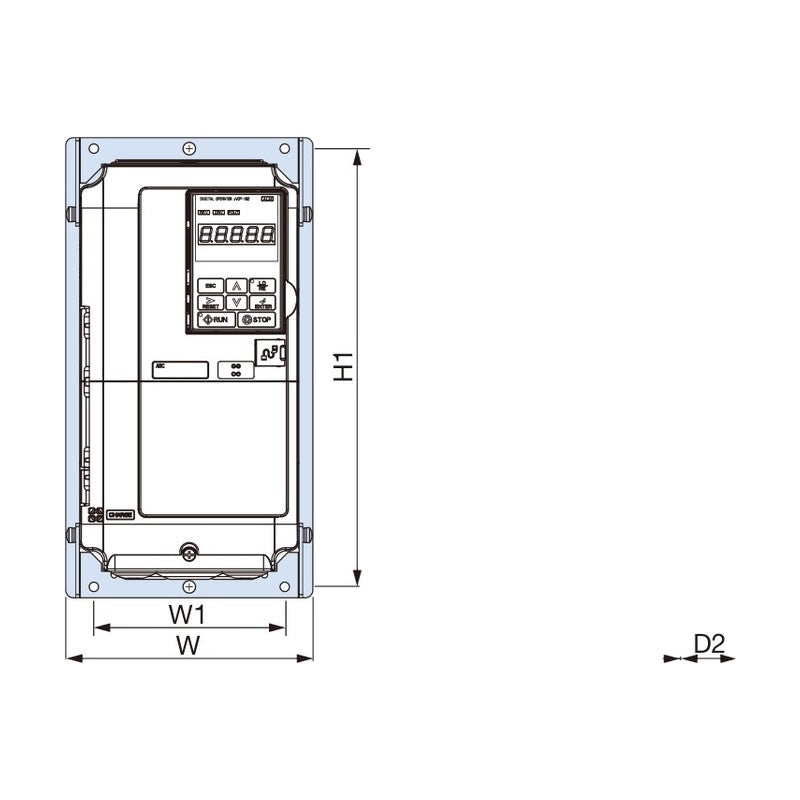

Attachment frames required to mount smaller 1000-series drives/units with the heatsink outside the enclosure panel; the attachment increases the overall width and height.

Key features

  • Not required for CIMR-AA2A0110/AA4A0058 and above (standard feet are replaced instead)
  • Current derating may be needed with external heatsink mounting
EZZ020800A Outer size WxH: 158x294 mm | Applicable models: CIMR-AA2A0004 to 0012; CIMR-AA4A0002 to 0005
EZZ020800B Outer size WxH: 158x294 mm | Applicable models: CIMR-AA2A0018 to 0040; CIMR-AA4A0007 to 0023; CIMR-RA2A/RA4A03P5 to 0007
EZZ020800C Outer size WxH: 198x329 mm | Applicable models: CIMR-AA2A0056; CIMR-AA4A0031/0038; CIMR-RA2A/RA4A0010/0014; CIMR-DA2A/DA4A0005
EZZ020800D Outer size WxH: 238x380 mm | Applicable models: CIMR-AA2A0069/0081; CIMR-AA4A0044; CIMR-RA2A/RA4A0017 to 0028; CIMR-DA2A/DA4A0010/0020
Drive AccessoriesYASKAWA
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA EZZ020800 Attachment for External Heatsink Mounting

Brand YASKAWA·Drive Accessories

Available part numbers (4)

EZZ020800A, EZZ020800B, EZZ020800C, EZZ020800D

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EZZ020800AOuter size WxH: 158x294 mm | Applicable models: CIMR-AA2A0004 to 0012; CIMR-AA4A0002 to 0005
EZZ020800BOuter size WxH: 158x294 mm | Applicable models: CIMR-AA2A0018 to 0040; CIMR-AA4A0007 to 0023; CIMR-RA2A/RA4A03P5 to 0007
EZZ020800COuter size WxH: 198x329 mm | Applicable models: CIMR-AA2A0056; CIMR-AA4A0031/0038; CIMR-RA2A/RA4A0010/0014; CIMR-DA2A/DA4A0005
EZZ020800DOuter size WxH: 238x380 mm | Applicable models: CIMR-AA2A0069/0081; CIMR-AA4A0044; CIMR-RA2A/RA4A0017 to 0028; CIMR-DA2A/DA4A0010/0020
