• YASKAWA EZZ022745 UL Type 1 Kit for U1000
1 1

YASKAWA U1000 EZZ022745 UL Type 1 Kits

YASKAWA U1000 EZZ022745 UL Type 1 Kits

EZZ022745 kits convert the U1000 IP00 open-chassis drive to a UL Type 1 enclosure.

Key features

  • Converts U1000 IP00 open-chassis models to UL Type 1 enclosure
  • Covers CIMR-UA2*0028 to 2*0248 and CIMR-UA4*0011 to 4*0590
  • Not available for CIMR-UA4*0720 to 4*0930
  • Removing the top protective cover converts the drive to IP20 conformity for panel installation

Specifications

Series U1000
Enclosure rating UL Type 1
Voltage class 200 V and 400 V
Code prefix EZZ022745

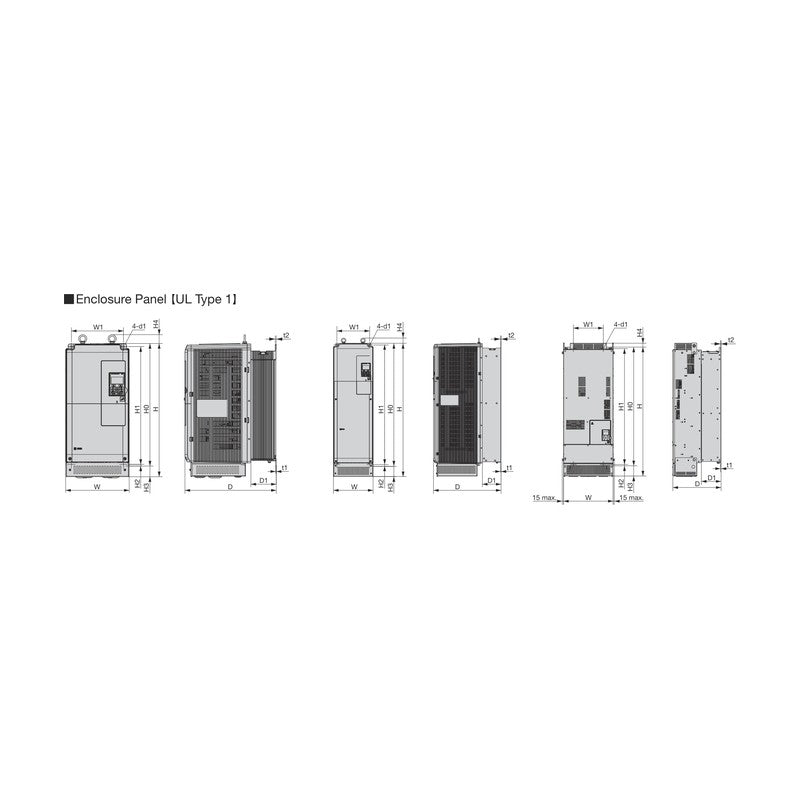

Height note H = drive with kit installed
Source YASKAWA U1000 catalogue, p. 29
EZZ022745A Model No.: 100-127-413 | For 200 V: 2*0028 | For 400 V: 4*0011 to 4*0034 | H with kit: 524 mm
EZZ022745B Model No.: 100-127-414 | For 200 V: 2*0042 to 2*0081 | For 400 V: 4*0040 to 4*0077 | H with kit: 705 mm
EZZ022745C Model No.: 100-127-415 | For 200 V: 2*0104 to 2*0130 | For 400 V: 4*0096 to 4*0124 | H with kit: 885 mm
EZZ022745D Model No.: 100-127-416 | For 200 V: 2*0154 to 2*0192 | For 400 V: 4*0156 to 4*0180 | H with kit: 1107 mm
EZZ022745E Model No.: 100-127-417 | For 200 V: 2*0248 | For 400 V: 4*0216 to 4*0240 | H with kit: 1320 mm
EZZ022745F Model No.: 100-127-418 | For 200 V: - | For 400 V: 4*0302 to 4*0414 | H with kit: 1460 mm
EZZ022745G Model No.: 100-142-161 | For 200 V: - | For 400 V: 4*0477 to 4*0590 | H with kit: 1853 mm
Drive AccessoriesYASKAWA
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA U1000 EZZ022745 UL Type 1 Kits

Brand YASKAWA·Drive Accessories

Available part numbers (7)

EZZ022745A, EZZ022745B, EZZ022745C, EZZ022745D, EZZ022745E, EZZ022745F, EZZ022745G

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EZZ022745AModel No.: 100-127-413 | For 200 V: 2*0028 | For 400 V: 4*0011 to 4*0034 | H with kit: 524 mm
EZZ022745BModel No.: 100-127-414 | For 200 V: 2*0042 to 2*0081 | For 400 V: 4*0040 to 4*0077 | H with kit: 705 mm
EZZ022745CModel No.: 100-127-415 | For 200 V: 2*0104 to 2*0130 | For 400 V: 4*0096 to 4*0124 | H with kit: 885 mm
EZZ022745DModel No.: 100-127-416 | For 200 V: 2*0154 to 2*0192 | For 400 V: 4*0156 to 4*0180 | H with kit: 1107 mm
EZZ022745EModel No.: 100-127-417 | For 200 V: 2*0248 | For 400 V: 4*0216 to 4*0240 | H with kit: 1320 mm
EZZ022745FModel No.: 100-127-418 | For 200 V: - | For 400 V: 4*0302 to 4*0414 | H with kit: 1460 mm
EZZ022745GModel No.: 100-142-161 | For 200 V: - | For 400 V: 4*0477 to 4*0590 | H with kit: 1853 mm
