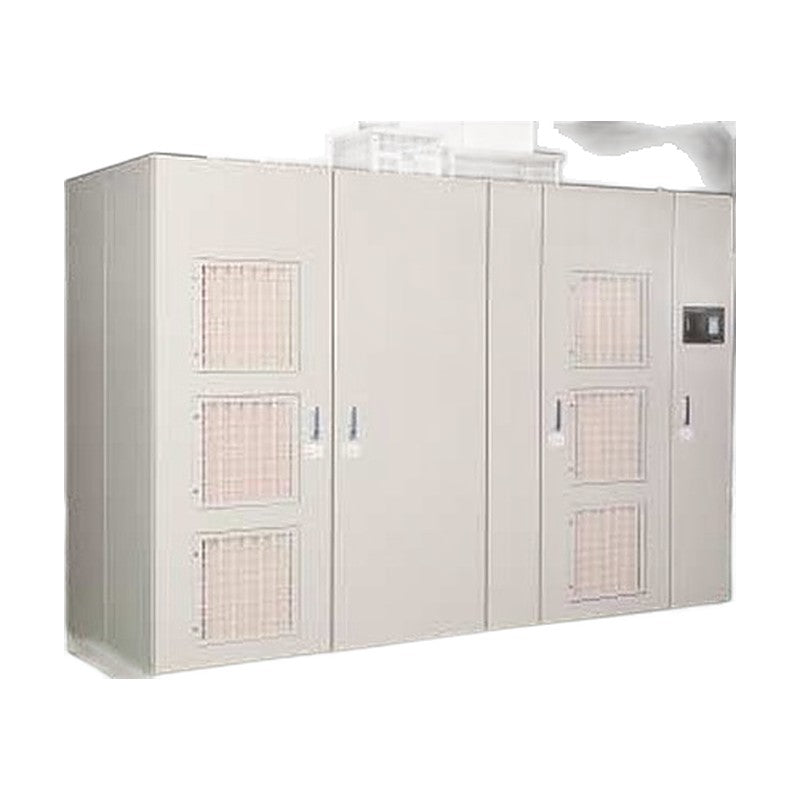

YASKAWA FSDrive-MV1000 Medium-Voltage AC Drive

YASKAWA FSDrive-MV1000 Medium-Voltage AC Drive

The FSDrive-MV1000 is a compact medium-voltage AC drive (3 kV, 6 kV and 11 kV classes) using series-connected multi-level power cells for low-harmonic, high-efficiency variable speed control of large motors.

Key features

  • Voltage-type PWM with series-connected power cells (3-level output); sinusoidal input and output waveforms
  • Efficiency approx. 97% and power factor 0.95 min. at rated load
  • Open-loop and closed-loop vector control; drives induction and synchronous motors (SM option)
  • Draw-out power cells for easy maintenance
  • MEMOBUS (RS-485) standard; DeviceNet, PROFIBUS-DP options

Specifications

Control methods Open-loop vector, closed-loop vector, V/f (multiple motors), closed-loop vector for SM (option)
Frequency control range 0.01 to 120 Hz
Overload 110% for 1 min, 120% for 15 s
Control power Single-phase 200/220 V, 50/60 Hz
Input transformer Class H dry type, secondary multi-phase winding
Protection design IP40 (simplified dustproof)
Ambient -5 to +40 °C, 85% RH max.
Altitude Max. 2000 m
Standards JIS, JEM, JEC
CIMR-MV2ACA035 Voltage class: 3 kV class (3000/3300 V) | Nominal capacity: 200 kVA | Max applicable motor: 132 kW | Rated output current: 35 A | Dimensions WxDxH: 1950x1000x2550 mm | Approx mass: 2100 kg
CIMR-MV2ACA050 Voltage class: 3 kV class (3000/3300 V) | Nominal capacity: 285 kVA | Max applicable motor: 200 kW | Rated output current: 50 A | Dimensions WxDxH: 1950x1000x2550 mm | Approx mass: 2200 kg
CIMR-MV2ACA070 Voltage class: 3 kV class (3000/3300 V) | Nominal capacity: 400 kVA | Max applicable motor: 315 kW | Rated output current: 70 A | Dimensions WxDxH: 1950x1000x2550 mm | Approx mass: 2400 kg
CIMR-MV2ACA100 Voltage class: 3 kV class (3000/3300 V) | Nominal capacity: 570 kVA | Max applicable motor: 450 kW | Rated output current: 100 A | Dimensions WxDxH: 1950x1000x2550 mm | Approx mass: 2600 kg
CIMR-MV2ACA140 Voltage class: 3 kV class (3000/3300 V) | Nominal capacity: 800 kVA | Max applicable motor: 630 kW | Rated output current: 140 A | Dimensions WxDxH: 1950x1000x2550 mm | Approx mass: 2800 kg
CIMR-MV2ACA200 Voltage class: 3 kV class (3000/3300 V) | Nominal capacity: 1150 kVA | Max applicable motor: 900 kW | Rated output current: 200 A | Dimensions WxDxH: 3000x1100x2550 mm | Approx mass: 4100 kg
CIMR-MV2ACA260 Voltage class: 3 kV class (3000/3300 V) | Nominal capacity: 1500 kVA | Max applicable motor: 1250 kW | Rated output current: 260 A | Dimensions WxDxH: 3500x1200x2550 mm | Approx mass: 5500 kg
CIMR-MV2ACA330 Voltage class: 3 kV class (3000/3300 V) | Nominal capacity: 1900 kVA | Max applicable motor: 1500 kW | Rated output current: 330 A | Dimensions WxDxH: 4100x1600x2550 mm | Approx mass: 7000 kg
CIMR-MV2ACA400 Voltage class: 3 kV class (3000/3300 V) | Nominal capacity: 2300 kVA | Max applicable motor: 1800 kW | Rated output current: 400 A | Dimensions WxDxH: 4100x1600x2550 mm | Approx mass: 7400 kg
CIMR-MV2ACA520 Voltage class: 3 kV class (3000/3300 V) | Nominal capacity: 3000 kVA | Max applicable motor: 2500 kW | Rated output current: 520 A | Dimensions WxDxH: 5300x1600x2800 mm | Approx mass: 8800 kg
CIMR-MV2ACA650 Voltage class: 3 kV class (3000/3300 V) | Nominal capacity: 3700 kVA | Max applicable motor: 3000 kW | Rated output current: 650 A | Dimensions WxDxH: 5600x1600x2800 mm | Approx mass: 9900 kg
CIMR-MV2AFA035 Voltage class: 6 kV class (6000/6600 V) | Nominal capacity: 400 kVA | Max applicable motor: 250 kW | Rated output current: 35 A | Dimensions WxDxH: 3100x1100x2550 mm | Approx mass: 3000 kg
CIMR-MV2AFA050 Voltage class: 6 kV class (6000/6600 V) | Nominal capacity: 570 kVA | Max applicable motor: 400 kW | Rated output current: 50 A | Dimensions WxDxH: 3100x1100x2550 mm | Approx mass: 3300 kg
CIMR-MV2AFA070 Voltage class: 6 kV class (6000/6600 V) | Nominal capacity: 800 kVA | Max applicable motor: 630 kW | Rated output current: 70 A | Dimensions WxDxH: 3100x1100x2550 mm | Approx mass: 3600 kg
CIMR-MV2AFA100 Voltage class: 6 kV class (6000/6600 V) | Nominal capacity: 1150 kVA | Max applicable motor: 900 kW | Rated output current: 100 A | Dimensions WxDxH: 3100x1100x2550 mm | Approx mass: 3900 kg
CIMR-MV2AFA140 Voltage class: 6 kV class (6000/6600 V) | Nominal capacity: 1600 kVA | Max applicable motor: 1250 kW | Rated output current: 140 A | Dimensions WxDxH: 3100x1100x2550 mm | Approx mass: 4200 kg
CIMR-MV2AFA200 Voltage class: 6 kV class (6000/6600 V) | Nominal capacity: 2300 kVA | Max applicable motor: 1800 kW | Rated output current: 200 A | Dimensions WxDxH: 4500x1300x2550 mm | Approx mass: 6600 kg
CIMR-MV2AFA260 Voltage class: 6 kV class (6000/6600 V) | Nominal capacity: 3000 kVA | Max applicable motor: 2500 kW | Rated output current: 260 A | Dimensions WxDxH: 5500x1300x2550 mm | Approx mass: 8000 kg
CIMR-MV2AFA330 Voltage class: 6 kV class (6000/6600 V) | Nominal capacity: 3800 kVA | Max applicable motor: 3000 kW | Rated output current: 330 A | Dimensions WxDxH: 6300x1600x2800 mm | Approx mass: 10100 kg
CIMR-MV2AFA400 Voltage class: 6 kV class (6000/6600 V) | Nominal capacity: 4600 kVA | Max applicable motor: 3600 kW | Rated output current: 400 A | Dimensions WxDxH: 6300x1600x2800 mm | Approx mass: 11000 kg
CIMR-MV2AFA520 Voltage class: 6 kV class (6000/6600 V) | Nominal capacity: 6000 kVA | Max applicable motor: 5000 kW | Rated output current: 520 A | Dimensions WxDxH: 7100x1600x2900 mm | Approx mass: 14500 kg
CIMR-MV2AFA650 Voltage class: 6 kV class (6000/6600 V) | Nominal capacity: 7500 kVA | Max applicable motor: 6000 kW | Rated output current: 650 A | Dimensions WxDxH: 7300x1600x2900 mm | Approx mass: 17000 kg
CIMR-MV2AHA035 Voltage class: 11 kV class (10000-11000 V) | Nominal capacity: 660 kVA | Max applicable motor: 530 kW | Rated output current: 35 A | Dimensions WxDxH: 5100x1400x2700 mm | Approx mass: 7600 kg
CIMR-MV2AHA050 Voltage class: 11 kV class (10000-11000 V) | Nominal capacity: 950 kVA | Max applicable motor: 760 kW | Rated output current: 50 A | Dimensions WxDxH: 5100x1400x2700 mm | Approx mass: 7800 kg
CIMR-MV2AHA070 Voltage class: 11 kV class (10000-11000 V) | Nominal capacity: 1300 kVA | Max applicable motor: 1070 kW | Rated output current: 70 A | Dimensions WxDxH: 5100x1400x2700 mm | Approx mass: 8000 kg
CIMR-MV2AHA100 Voltage class: 11 kV class (10000-11000 V) | Nominal capacity: 1900 kVA | Max applicable motor: 1520 kW | Rated output current: 100 A | Dimensions WxDxH: 5100x1400x2700 mm | Approx mass: 8200 kg
CIMR-MV2AHA140 Voltage class: 11 kV class (10000-11000 V) | Nominal capacity: 2650 kVA | Max applicable motor: 2130 kW | Rated output current: 140 A | Dimensions WxDxH: 5100x1400x2700 mm | Approx mass: 8400 kg
CIMR-MV2AHA200 Voltage class: 11 kV class (10000-11000 V) | Nominal capacity: 3800 kVA | Max applicable motor: 3050 kW | Rated output current: 200 A | Dimensions WxDxH: 6900x1500x2700 mm | Approx mass: 10000 kg
CIMR-MV2AHA260 Voltage class: 11 kV class (10000-11000 V) | Nominal capacity: 5000 kVA | Max applicable motor: 3960 kW | Rated output current: 260 A | Dimensions WxDxH: 7300x1600x2800 mm | Approx mass: 13200 kg
CIMR-MV2AHA330 Voltage class: 11 kV class (10000-11000 V) | Nominal capacity: 6200 kVA | Max applicable motor: 5030 kW | Rated output current: 330 A | Dimensions WxDxH: 8800x1700x2800 mm | Approx mass: 16000 kg
CIMR-MV2AHA400 Voltage class: 11 kV class (10000-11000 V) | Nominal capacity: 7600 kVA | Max applicable motor: 6100 kW | Rated output current: 400 A | Dimensions WxDxH: 8800x1700x2800 mm | Approx mass: 17000 kg
CIMR-MV2AHA520 Voltage class: 11 kV class (10000-11000 V) | Nominal capacity: 9900 kVA | Max applicable motor: 7930 kW | Rated output current: 520 A | Dimensions WxDxH: 10200x1800x2900 mm | Approx mass: 22000 kg
CIMR-MV2AHA650 Voltage class: 11 kV class (10000-11000 V) | Nominal capacity: 12000 kVA | Max applicable motor: 9910 kW | Rated output current: 650 A | Dimensions WxDxH: 10200x1800x2900 mm | Approx mass: 25000 kg
Medium-Voltage AC DrivesYASKAWA
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA FSDrive-MV1000 Medium-Voltage AC Drive

Brand YASKAWA·Medium-Voltage AC Drives

Available part numbers (33)

CIMR-MV2ACA035, CIMR-MV2ACA050, CIMR-MV2ACA070, CIMR-MV2ACA100, CIMR-MV2ACA140, CIMR-MV2ACA200, CIMR-MV2ACA260, CIMR-MV2ACA330, CIMR-MV2ACA400, CIMR-MV2ACA520 + 23 more — see full table ↓
