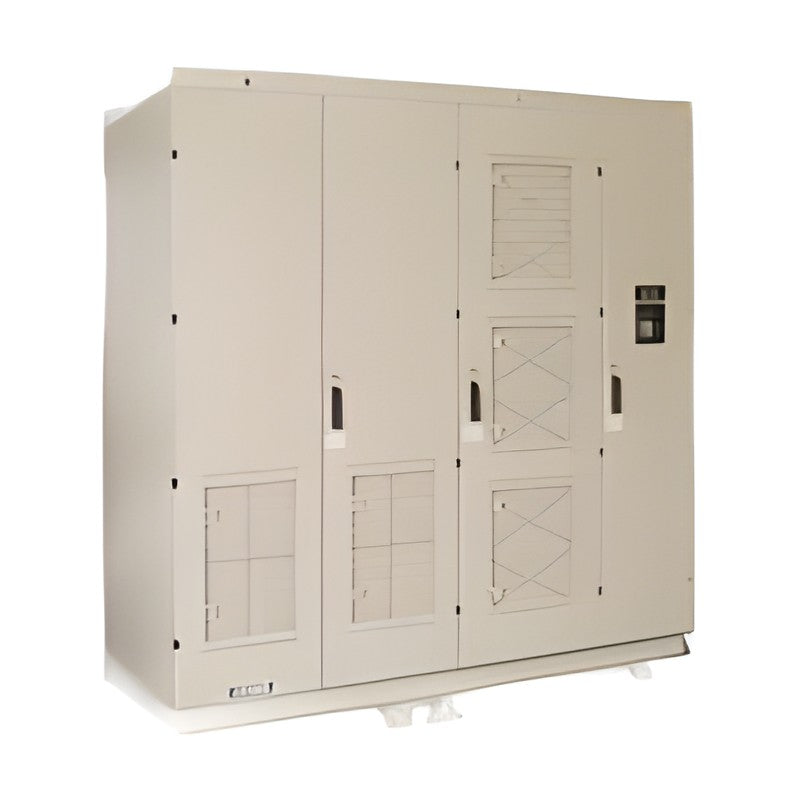

YASKAWA FSDrive-MV1S Medium-Voltage AC Drive

YASKAWA FSDrive-MV1S Medium-Voltage AC Drive

The FSDrive-MV1S is a direct medium-voltage (3 kV and 6 kV class) AC drive with PWM control and series-connected multi-output power cells, for energy-saving speed control of fans, blowers, pumps and other large motors.

Key features

  • PWM control with multi-output power cells connected in series; low harmonics and high-frequency noise
  • Efficiency approx. 97%, power factor 0.97 or more
  • Open-loop vector, flux vector and V/f control (multiple-motor operation)
  • No regenerative braking function

Specifications

Overload 110% for 60 s, 120% for 15 s
Frequency control range 0.01 to 120 Hz
Accel/decel time 0.1 to 6000 s
Cooling Forced air (fan failure detection)
Control power 3-phase 200/220, 380, 400/440 V ±10%, 50/60 Hz, 3 kVA or more
Enclosure IP40 (dustproof)
Ambient -5 to +40 °C, 45-85% RH
Standards JIS, JEC, JEM
CIMR-MV1SAA132 Output voltage class: 3 kV class | Input: 3300 V at 60 Hz | Nominal capacity: 200 kVA | Max applicable motor: 132 kW | Rated output current: 35 A | Approx mass: 2000 kg (max.)
CIMR-MV1SBA132 Output voltage class: 3 kV class | Input: 3000 V at 50 Hz | Nominal capacity: 200 kVA | Max applicable motor: 132 kW | Rated output current: 35 A | Approx mass: 2000 kg (max.)
CIMR-MV1SEA132 Output voltage class: 3 kV class | Input: 3300 V at 50 Hz | Nominal capacity: 200 kVA | Max applicable motor: 132 kW | Rated output current: 35 A | Approx mass: 2000 kg (max.)
CIMR-MV1SAA200 Output voltage class: 3 kV class | Input: 3300 V at 60 Hz | Nominal capacity: 285 kVA | Max applicable motor: 200 kW | Rated output current: 50 A | Approx mass: 2200 kg (max.)
CIMR-MV1SBA200 Output voltage class: 3 kV class | Input: 3000 V at 50 Hz | Nominal capacity: 285 kVA | Max applicable motor: 200 kW | Rated output current: 50 A | Approx mass: 2200 kg (max.)
CIMR-MV1SEA200 Output voltage class: 3 kV class | Input: 3300 V at 50 Hz | Nominal capacity: 285 kVA | Max applicable motor: 200 kW | Rated output current: 50 A | Approx mass: 2200 kg (max.)
CIMR-MV1SAA315 Output voltage class: 3 kV class | Input: 3300 V at 60 Hz | Nominal capacity: 400 kVA | Max applicable motor: 315 kW | Rated output current: 70 A | Approx mass: 2500 kg (max.)
CIMR-MV1SBA315 Output voltage class: 3 kV class | Input: 3000 V at 50 Hz | Nominal capacity: 400 kVA | Max applicable motor: 315 kW | Rated output current: 70 A | Approx mass: 2500 kg (max.)
CIMR-MV1SEA315 Output voltage class: 3 kV class | Input: 3300 V at 50 Hz | Nominal capacity: 400 kVA | Max applicable motor: 315 kW | Rated output current: 70 A | Approx mass: 2500 kg (max.)
CIMR-MV1SAA450 Output voltage class: 3 kV class | Input: 3300 V at 60 Hz | Nominal capacity: 570 kVA | Max applicable motor: 450 kW | Rated output current: 100 A | Approx mass: 2800 kg (max.)
CIMR-MV1SBA450 Output voltage class: 3 kV class | Input: 3000 V at 50 Hz | Nominal capacity: 570 kVA | Max applicable motor: 450 kW | Rated output current: 100 A | Approx mass: 2800 kg (max.)
CIMR-MV1SEA450 Output voltage class: 3 kV class | Input: 3300 V at 50 Hz | Nominal capacity: 570 kVA | Max applicable motor: 450 kW | Rated output current: 100 A | Approx mass: 2800 kg (max.)
CIMR-MV1SAA630 Output voltage class: 3 kV class | Input: 3300 V at 60 Hz | Nominal capacity: 800 kVA | Max applicable motor: 630 kW | Rated output current: 140 A | Approx mass: 3500 kg (max.)
CIMR-MV1SBA630 Output voltage class: 3 kV class | Input: 3000 V at 50 Hz | Nominal capacity: 800 kVA | Max applicable motor: 630 kW | Rated output current: 140 A | Approx mass: 3500 kg (max.)
CIMR-MV1SEA630 Output voltage class: 3 kV class | Input: 3300 V at 50 Hz | Nominal capacity: 800 kVA | Max applicable motor: 630 kW | Rated output current: 140 A | Approx mass: 3500 kg (max.)
CIMR-MV1SAA900 Output voltage class: 3 kV class | Input: 3300 V at 60 Hz | Nominal capacity: 1150 kVA | Max applicable motor: 900 kW | Rated output current: 200 A | Approx mass: 4400 kg (max.)
CIMR-MV1SBA900 Output voltage class: 3 kV class | Input: 3000 V at 50 Hz | Nominal capacity: 1150 kVA | Max applicable motor: 900 kW | Rated output current: 200 A | Approx mass: 4400 kg (max.)
CIMR-MV1SEA900 Output voltage class: 3 kV class | Input: 3300 V at 50 Hz | Nominal capacity: 1150 kVA | Max applicable motor: 900 kW | Rated output current: 200 A | Approx mass: 4400 kg (max.)
CIMR-MV1SAA13C Output voltage class: 3 kV class | Input: 3300 V at 60 Hz | Nominal capacity: 1500 kVA | Max applicable motor: 1250 kW | Rated output current: 260 A | Approx mass: 4900 kg (max.)
CIMR-MV1SBA13C Output voltage class: 3 kV class | Input: 3000 V at 50 Hz | Nominal capacity: 1500 kVA | Max applicable motor: 1250 kW | Rated output current: 260 A | Approx mass: 4900 kg (max.)
CIMR-MV1SEA13C Output voltage class: 3 kV class | Input: 3300 V at 50 Hz | Nominal capacity: 1500 kVA | Max applicable motor: 1250 kW | Rated output current: 260 A | Approx mass: 4900 kg (max.)
CIMR-MV1SAA15C Output voltage class: 3 kV class | Input: 3300 V at 60 Hz | Nominal capacity: 1900 kVA | Max applicable motor: 1500 kW | Rated output current: 330 A | Approx mass: 5300 kg (max.)
CIMR-MV1SBA15C Output voltage class: 3 kV class | Input: 3000 V at 50 Hz | Nominal capacity: 1900 kVA | Max applicable motor: 1500 kW | Rated output current: 330 A | Approx mass: 5300 kg (max.)
CIMR-MV1SEA15C Output voltage class: 3 kV class | Input: 3300 V at 50 Hz | Nominal capacity: 1900 kVA | Max applicable motor: 1500 kW | Rated output current: 330 A | Approx mass: 5300 kg (max.)
CIMR-MV1SAA18C Output voltage class: 3 kV class | Input: 3300 V at 60 Hz | Nominal capacity: 2300 kVA | Max applicable motor: 1800 kW | Rated output current: 400 A | Approx mass: 6400 kg (max.)
CIMR-MV1SBA18C Output voltage class: 3 kV class | Input: 3000 V at 50 Hz | Nominal capacity: 2300 kVA | Max applicable motor: 1800 kW | Rated output current: 400 A | Approx mass: 6400 kg (max.)
CIMR-MV1SEA18C Output voltage class: 3 kV class | Input: 3300 V at 50 Hz | Nominal capacity: 2300 kVA | Max applicable motor: 1800 kW | Rated output current: 400 A | Approx mass: 6400 kg (max.)
CIMR-MV1SAA25C Output voltage class: 3 kV class | Input: 3300 V at 60 Hz | Nominal capacity: 3000 kVA | Max applicable motor: 2500 kW | Rated output current: 520 A | Approx mass: 9500 kg (max.)
CIMR-MV1SBA25C Output voltage class: 3 kV class | Input: 3000 V at 50 Hz | Nominal capacity: 3000 kVA | Max applicable motor: 2500 kW | Rated output current: 520 A | Approx mass: 9500 kg (max.)
CIMR-MV1SEA25C Output voltage class: 3 kV class | Input: 3300 V at 50 Hz | Nominal capacity: 3000 kVA | Max applicable motor: 2500 kW | Rated output current: 520 A | Approx mass: 9500 kg (max.)
CIMR-MV1SCC250 Output voltage class: 6 kV class | Input: 6600 V at 60 Hz | Nominal capacity: 400 kVA | Max applicable motor: 250 kW | Rated output current: 35 A | Approx mass: 2900 kg (max.)
CIMR-MV1SDC250 Output voltage class: 6 kV class | Input: 6000 V at 50 Hz | Nominal capacity: 400 kVA | Max applicable motor: 250 kW | Rated output current: 35 A | Approx mass: 2900 kg (max.)
CIMR-MV1SFC250 Output voltage class: 6 kV class | Input: 6600 V at 50 Hz | Nominal capacity: 400 kVA | Max applicable motor: 250 kW | Rated output current: 35 A | Approx mass: 2900 kg (max.)
CIMR-MV1SCC400 Output voltage class: 6 kV class | Input: 6600 V at 60 Hz | Nominal capacity: 570 kVA | Max applicable motor: 400 kW | Rated output current: 50 A | Approx mass: 3200 kg (max.)
CIMR-MV1SDC400 Output voltage class: 6 kV class | Input: 6000 V at 50 Hz | Nominal capacity: 570 kVA | Max applicable motor: 400 kW | Rated output current: 50 A | Approx mass: 3200 kg (max.)
CIMR-MV1SFC400 Output voltage class: 6 kV class | Input: 6600 V at 50 Hz | Nominal capacity: 570 kVA | Max applicable motor: 400 kW | Rated output current: 50 A | Approx mass: 3200 kg (max.)
CIMR-MV1SCC630 Output voltage class: 6 kV class | Input: 6600 V at 60 Hz | Nominal capacity: 800 kVA | Max applicable motor: 630 kW | Rated output current: 70 A | Approx mass: 3700 kg (max.)
CIMR-MV1SDC630 Output voltage class: 6 kV class | Input: 6000 V at 50 Hz | Nominal capacity: 800 kVA | Max applicable motor: 630 kW | Rated output current: 70 A | Approx mass: 3700 kg (max.)
CIMR-MV1SFC630 Output voltage class: 6 kV class | Input: 6600 V at 50 Hz | Nominal capacity: 800 kVA | Max applicable motor: 630 kW | Rated output current: 70 A | Approx mass: 3700 kg (max.)
CIMR-MV1SCC900 Output voltage class: 6 kV class | Input: 6600 V at 60 Hz | Nominal capacity: 1150 kVA | Max applicable motor: 900 kW | Rated output current: 100 A | Approx mass: 4500 kg (max.)
CIMR-MV1SDC900 Output voltage class: 6 kV class | Input: 6000 V at 50 Hz | Nominal capacity: 1150 kVA | Max applicable motor: 900 kW | Rated output current: 100 A | Approx mass: 4500 kg (max.)
CIMR-MV1SFC900 Output voltage class: 6 kV class | Input: 6600 V at 50 Hz | Nominal capacity: 1150 kVA | Max applicable motor: 900 kW | Rated output current: 100 A | Approx mass: 4500 kg (max.)
CIMR-MV1SCC13C Output voltage class: 6 kV class | Input: 6600 V at 60 Hz | Nominal capacity: 1600 kVA | Max applicable motor: 1250 kW | Rated output current: 140 A | Approx mass: 5300 kg (max.)
CIMR-MV1SDC13C Output voltage class: 6 kV class | Input: 6000 V at 50 Hz | Nominal capacity: 1600 kVA | Max applicable motor: 1250 kW | Rated output current: 140 A | Approx mass: 5300 kg (max.)
CIMR-MV1SFC13C Output voltage class: 6 kV class | Input: 6600 V at 50 Hz | Nominal capacity: 1600 kVA | Max applicable motor: 1250 kW | Rated output current: 140 A | Approx mass: 5300 kg (max.)
CIMR-MV1SCC18C Output voltage class: 6 kV class | Input: 6600 V at 60 Hz | Nominal capacity: 2300 kVA | Max applicable motor: 1800 kW | Rated output current: 200 A | Approx mass: 7000 kg (max.)
CIMR-MV1SDC18C Output voltage class: 6 kV class | Input: 6000 V at 50 Hz | Nominal capacity: 2300 kVA | Max applicable motor: 1800 kW | Rated output current: 200 A | Approx mass: 7000 kg (max.)
CIMR-MV1SFC18C Output voltage class: 6 kV class | Input: 6600 V at 50 Hz | Nominal capacity: 2300 kVA | Max applicable motor: 1800 kW | Rated output current: 200 A | Approx mass: 7000 kg (max.)
CIMR-MV1SCC25C Output voltage class: 6 kV class | Input: 6600 V at 60 Hz | Nominal capacity: 3000 kVA | Max applicable motor: 2500 kW | Rated output current: 260 A | Approx mass: 8700 kg (max.)
CIMR-MV1SDC25C Output voltage class: 6 kV class | Input: 6000 V at 50 Hz | Nominal capacity: 3000 kVA | Max applicable motor: 2500 kW | Rated output current: 260 A | Approx mass: 8700 kg (max.)
CIMR-MV1SFC25C Output voltage class: 6 kV class | Input: 6600 V at 50 Hz | Nominal capacity: 3000 kVA | Max applicable motor: 2500 kW | Rated output current: 260 A | Approx mass: 8700 kg (max.)
CIMR-MV1SCC30C Output voltage class: 6 kV class | Input: 6600 V at 60 Hz | Nominal capacity: 3800 kVA | Max applicable motor: 3000 kW | Rated output current: 330 A | Approx mass: 9400 kg (max.)
CIMR-MV1SDC30C Output voltage class: 6 kV class | Input: 6000 V at 50 Hz | Nominal capacity: 3800 kVA | Max applicable motor: 3000 kW | Rated output current: 330 A | Approx mass: 9400 kg (max.)
CIMR-MV1SFC30C Output voltage class: 6 kV class | Input: 6600 V at 50 Hz | Nominal capacity: 3800 kVA | Max applicable motor: 3000 kW | Rated output current: 330 A | Approx mass: 9400 kg (max.)
CIMR-MV1SCC36C Output voltage class: 6 kV class | Input: 6600 V at 60 Hz | Nominal capacity: 4600 kVA | Max applicable motor: 3600 kW | Rated output current: 400 A | Approx mass: 12000 kg (max.)
CIMR-MV1SDC36C Output voltage class: 6 kV class | Input: 6000 V at 50 Hz | Nominal capacity: 4600 kVA | Max applicable motor: 3600 kW | Rated output current: 400 A | Approx mass: 12000 kg (max.)
CIMR-MV1SFC36C Output voltage class: 6 kV class | Input: 6600 V at 50 Hz | Nominal capacity: 4600 kVA | Max applicable motor: 3600 kW | Rated output current: 400 A | Approx mass: 12000 kg (max.)
CIMR-MV1SCC43C Output voltage class: 6 kV class | Input: 6600 V at 60 Hz | Nominal capacity: 5300 kVA | Max applicable motor: 4300 kW | Rated output current: 460 A | Approx mass: 13600 kg (max.)
CIMR-MV1SDC43C Output voltage class: 6 kV class | Input: 6000 V at 50 Hz | Nominal capacity: 5300 kVA | Max applicable motor: 4300 kW | Rated output current: 460 A | Approx mass: 13600 kg (max.)
CIMR-MV1SFC43C Output voltage class: 6 kV class | Input: 6600 V at 50 Hz | Nominal capacity: 5300 kVA | Max applicable motor: 4300 kW | Rated output current: 460 A | Approx mass: 13600 kg (max.)
CIMR-MV1SCC50C Output voltage class: 6 kV class | Input: 6600 V at 60 Hz | Nominal capacity: 6000 kVA | Max applicable motor: 5000 kW | Rated output current: 520 A | Approx mass: 16000 kg (max.)
CIMR-MV1SDC50C Output voltage class: 6 kV class | Input: 6000 V at 50 Hz | Nominal capacity: 6000 kVA | Max applicable motor: 5000 kW | Rated output current: 520 A | Approx mass: 16000 kg (max.)
CIMR-MV1SFC50C Output voltage class: 6 kV class | Input: 6600 V at 50 Hz | Nominal capacity: 6000 kVA | Max applicable motor: 5000 kW | Rated output current: 520 A | Approx mass: 16000 kg (max.)
Medium-Voltage AC DrivesYASKAWA
63 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA FSDrive-MV1S Medium-Voltage AC Drive

Brand YASKAWA·Medium-Voltage AC Drives

Available part numbers (63)

CIMR-MV1SAA132, CIMR-MV1SBA132, CIMR-MV1SEA132, CIMR-MV1SAA200, CIMR-MV1SBA200, CIMR-MV1SEA200, CIMR-MV1SAA315, CIMR-MV1SBA315, CIMR-MV1SEA315, CIMR-MV1SAA450 + 53 more — see full table ↓
