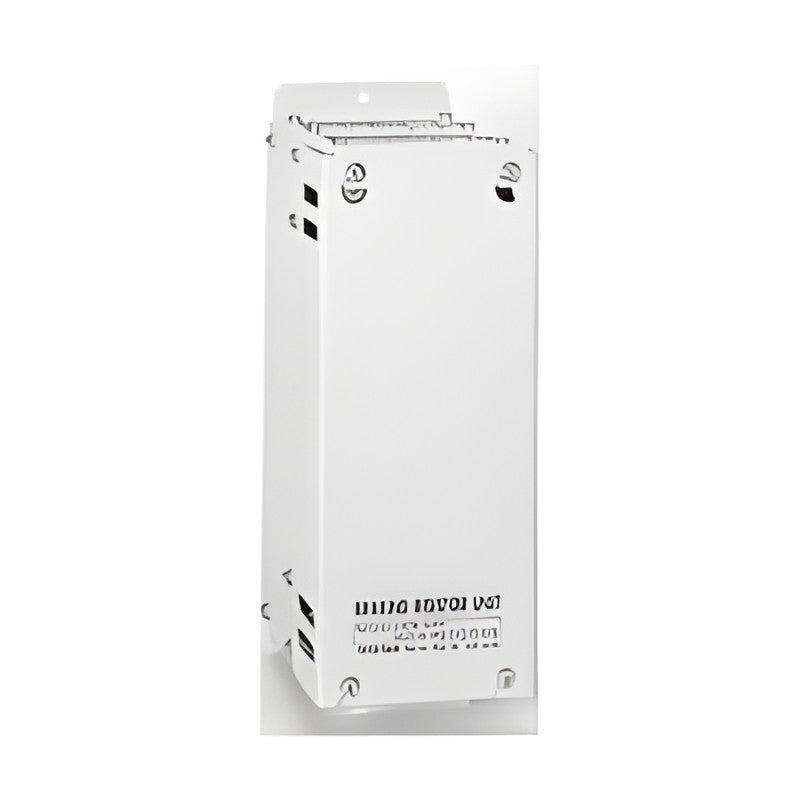

YASKAWA LKEB Braking Resistor Unit (Stand-Alone, 10% ED)

YASKAWA LKEB Braking Resistor Unit (Stand-Alone, 10% ED)

LKEB stand-alone braking resistor units with built-in thermal overload relay, used with the drive's braking transistor or a CDBR braking unit (10% ED).

Specifications

Duty factor 10% ED, 10 s max.
Protection Built-in thermal overload relay
LKEB-20P7 Voltage class: 200 V | Resistor: 70 W 200 Ω | Weight: 3.0 kg | Allowable average power: 30 W
LKEB-21P5 Voltage class: 200 V | Resistor: 260 W 100 Ω | Weight: 4.5 kg | Allowable average power: 60 W
LKEB-22P2 Voltage class: 200 V | Resistor: 260 W 70 Ω | Weight: 4.5 kg | Allowable average power: 89 W
LKEB-23P7 Voltage class: 200 V | Resistor: 390 W 40 Ω | Weight: 5.0 kg | Allowable average power: 150 W
LKEB-25P5 Voltage class: 200 V | Resistor: 520 W 30 Ω | Weight: 7.5 kg | Allowable average power: 220 W
LKEB-27P5 Voltage class: 200 V | Resistor: 780 W 20 Ω | Weight: 8.5 kg | Allowable average power: 300 W
LKEB-2011 Voltage class: 200 V | Resistor: 2400 W 13.6 Ω | Weight: 10 kg | Allowable average power: 440 W
LKEB-2015 Voltage class: 200 V | Resistor: 3000 W 10 Ω | Weight: 15 kg | Allowable average power: 600 W
LKEB-2018 Voltage class: 200 V | Resistor: 4800 W 8 Ω | Weight: 19 kg | Allowable average power: 740 W
LKEB-2022 Voltage class: 200 V | Resistor: 4800 W 6.8 Ω | Weight: 19 kg | Allowable average power: 880 W
LKEB-40P7 Voltage class: 400 V | Resistor: 70 W 750 Ω | Weight: 3.0 kg | Allowable average power: 30 W
LKEB-41P5 Voltage class: 400 V | Resistor: 260 W 400 Ω | Weight: 4.5 kg | Allowable average power: 60 W
LKEB-42P2 Voltage class: 400 V | Resistor: 260 W 250 Ω | Weight: 4.5 kg | Allowable average power: 89 W
LKEB-43P7 Voltage class: 400 V | Resistor: 390 W 150 Ω | Weight: 5.0 kg | Allowable average power: 150 W
LKEB-45P5 Voltage class: 400 V | Resistor: 520 W 100 Ω | Weight: 7.5 kg | Allowable average power: 220 W
LKEB-47P5 Voltage class: 400 V | Resistor: 780 W 75 Ω | Weight: 8.5 kg | Allowable average power: 300 W
LKEB-4011 Voltage class: 400 V | Resistor: 1040 W 50 Ω | Weight: 16 kg | Allowable average power: 440 W
LKEB-4015 Voltage class: 400 V | Resistor: 1560 W 40 Ω | Weight: 18 kg | Allowable average power: 600 W
LKEB-4018 Voltage class: 400 V | Resistor: 4800 W 32 Ω | Weight: 19 kg | Allowable average power: 740 W
LKEB-4022 Voltage class: 400 V | Resistor: 4800 W 27.2 Ω | Weight: 19 kg | Allowable average power: 880 W
LKEB-4030 Voltage class: 400 V | Resistor: 6000 W 20 Ω | Weight: 25 kg | Allowable average power: 1200 W
LKEB-4037 Voltage class: 400 V | Resistor: 9600 W 16 Ω | Weight: 33 kg | Allowable average power: 1500 W
LKEB-4045 Voltage class: 400 V | Resistor: 9600 W 13.6 Ω | Weight: 33 kg | Allowable average power: 1800 W
