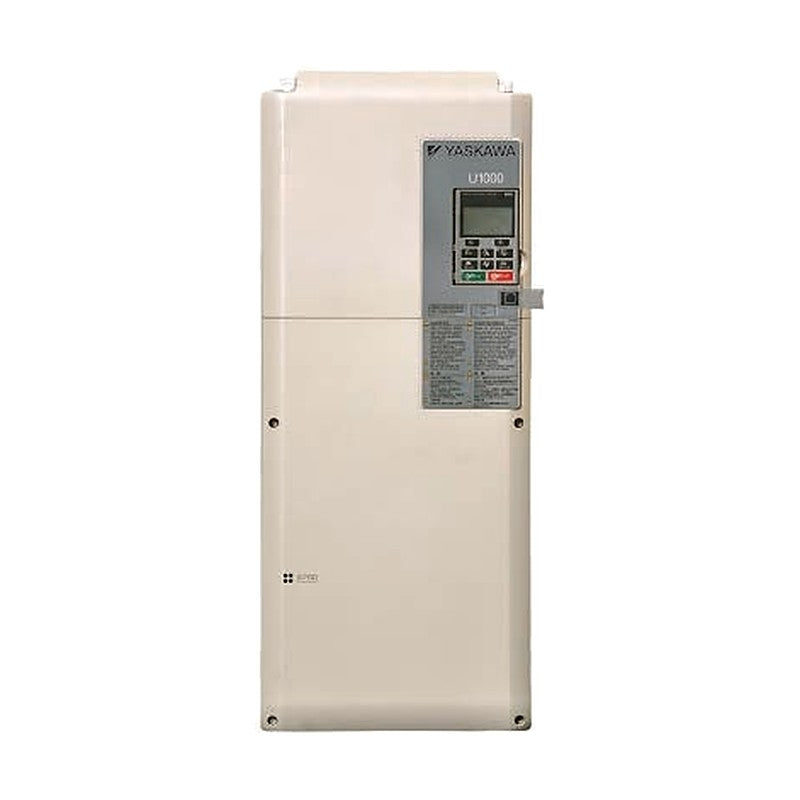

YASKAWA U1000 Matrix Converter (200 V class, 28-248 A)

YASKAWA U1000 Matrix Converter (200 V class, 28-248 A)

The YASKAWA U1000 200 V class is a current-vector matrix converter that delivers low-harmonic, fully regenerative motor control without a separate harmonic filter or regenerative unit.

Key features

  • Matrix converter topology: input harmonic current distortion 5% or less (IEEE 519) and input power factor 0.98 or more
  • Power regeneration to the supply as standard - no braking resistor or regenerative converter needed
  • Customized-specification letter: A standard, E built-in EMC filter, P built-in 24 V power supply unit, W both
  • IP00 open chassis; UL Type 1 enclosure with optional UL Type 1 kit (EZZ022745); external heatsink mounting with attachment (EZZ022706)
  • Induction and PM motor control: V/f, OLV, CLV, OLV/PM, AOLV/PM, CLV/PM; Safe Disable inputs (ISO/EN13849-1 Cat.3 PLe, IEC/EN61508 SIL3)
  • Environmental-spec versions available to order: K (gas), M (humidity, dust), N (oil), P (moisture, dust, vibration), S (shock, vibration), T (oil, vibration); codes listed use A (standard)

Specifications

Series U1000 matrix converter
Voltage class Three-phase 200-240 Vac, 50/60 Hz
Voltage tolerance -15% to +10%
Overload HD 150% / ND 120% of rated current for 60 s
Carrier frequency 4 kHz (adjustable up to 10 kHz)
Max. output frequency 400 Hz
Input power factor 0.98 or more (rated load)
Ambient temperature -10 to +50 C (open chassis)
Cooling Fan cooled
Model key CIMR-U A 2 [spec] [current] [encl.] [env.] [rev.]
Source YASKAWA U1000 catalogue, p. 12-31
CIMR-UA2A0028 Base model (specify enclosure) | Option: Standard model | ND: 28 A | HD: 22 A | Input (ND): 25 A / 12 kVA
CIMR-UA2A0028AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Standard model | ND: 28 A | HD: 22 A | Input (ND): 25 A / 12 kVA | Weight: 20 kg
CIMR-UA2E0028 Base model (specify enclosure) | Option: Built-in EMC filter | ND: 28 A | HD: 22 A | Input (ND): 25 A / 12 kVA
CIMR-UA2E0028AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in EMC filter | ND: 28 A | HD: 22 A | Input (ND): 25 A / 12 kVA | Weight: 21 kg
CIMR-UA2P0028 Base model (specify enclosure) | Option: Built-in 24 V PSU | ND: 28 A | HD: 22 A | Input (ND): 25 A / 12 kVA
CIMR-UA2P0028AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in 24 V PSU | ND: 28 A | HD: 22 A | Input (ND): 25 A / 12 kVA | Weight: 20 kg
CIMR-UA2W0028 Base model (specify enclosure) | Option: EMC filter + 24 V PSU | ND: 28 A | HD: 22 A | Input (ND): 25 A / 12 kVA
CIMR-UA2W0028AAA Enclosure: IP00 (UL Type 1 with kit) | Option: EMC filter + 24 V PSU | ND: 28 A | HD: 22 A | Input (ND): 25 A / 12 kVA | Weight: 21 kg
CIMR-UA2A0042 Base model (specify enclosure) | Option: Standard model | ND: 42 A | HD: 28 A | Input (ND): 38 A / 17 kVA
CIMR-UA2A0042AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Standard model | ND: 42 A | HD: 28 A | Input (ND): 38 A / 17 kVA | Weight: 32 kg
CIMR-UA2E0042 Base model (specify enclosure) | Option: Built-in EMC filter | ND: 42 A | HD: 28 A | Input (ND): 38 A / 17 kVA
CIMR-UA2E0042AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in EMC filter | ND: 42 A | HD: 28 A | Input (ND): 38 A / 17 kVA | Weight: 33 kg
CIMR-UA2P0042 Base model (specify enclosure) | Option: Built-in 24 V PSU | ND: 42 A | HD: 28 A | Input (ND): 38 A / 17 kVA
CIMR-UA2P0042AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in 24 V PSU | ND: 42 A | HD: 28 A | Input (ND): 38 A / 17 kVA | Weight: 32 kg
CIMR-UA2W0042 Base model (specify enclosure) | Option: EMC filter + 24 V PSU | ND: 42 A | HD: 28 A | Input (ND): 38 A / 17 kVA
CIMR-UA2W0042AAA Enclosure: IP00 (UL Type 1 with kit) | Option: EMC filter + 24 V PSU | ND: 42 A | HD: 28 A | Input (ND): 38 A / 17 kVA | Weight: 33 kg
CIMR-UA2A0054 Base model (specify enclosure) | Option: Standard model | ND: 54 A | HD: 42 A | Input (ND): 49 A / 22 kVA
CIMR-UA2A0054AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Standard model | ND: 54 A | HD: 42 A | Input (ND): 49 A / 22 kVA | Weight: 32 kg
CIMR-UA2E0054 Base model (specify enclosure) | Option: Built-in EMC filter | ND: 54 A | HD: 42 A | Input (ND): 49 A / 22 kVA
CIMR-UA2E0054AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in EMC filter | ND: 54 A | HD: 42 A | Input (ND): 49 A / 22 kVA | Weight: 33 kg
CIMR-UA2P0054 Base model (specify enclosure) | Option: Built-in 24 V PSU | ND: 54 A | HD: 42 A | Input (ND): 49 A / 22 kVA
CIMR-UA2P0054AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in 24 V PSU | ND: 54 A | HD: 42 A | Input (ND): 49 A / 22 kVA | Weight: 32 kg
CIMR-UA2W0054 Base model (specify enclosure) | Option: EMC filter + 24 V PSU | ND: 54 A | HD: 42 A | Input (ND): 49 A / 22 kVA
CIMR-UA2W0054AAA Enclosure: IP00 (UL Type 1 with kit) | Option: EMC filter + 24 V PSU | ND: 54 A | HD: 42 A | Input (ND): 49 A / 22 kVA | Weight: 33 kg
CIMR-UA2A0068 Base model (specify enclosure) | Option: Standard model | ND: 68 A | HD: 54 A | Input (ND): 62 A / 28 kVA
CIMR-UA2A0068AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Standard model | ND: 68 A | HD: 54 A | Input (ND): 62 A / 28 kVA | Weight: 35 kg
CIMR-UA2E0068 Base model (specify enclosure) | Option: Built-in EMC filter | ND: 68 A | HD: 54 A | Input (ND): 62 A / 28 kVA
CIMR-UA2E0068AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in EMC filter | ND: 68 A | HD: 54 A | Input (ND): 62 A / 28 kVA | Weight: 36 kg
CIMR-UA2P0068 Base model (specify enclosure) | Option: Built-in 24 V PSU | ND: 68 A | HD: 54 A | Input (ND): 62 A / 28 kVA
CIMR-UA2P0068AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in 24 V PSU | ND: 68 A | HD: 54 A | Input (ND): 62 A / 28 kVA | Weight: 35 kg
CIMR-UA2W0068 Base model (specify enclosure) | Option: EMC filter + 24 V PSU | ND: 68 A | HD: 54 A | Input (ND): 62 A / 28 kVA
CIMR-UA2W0068AAA Enclosure: IP00 (UL Type 1 with kit) | Option: EMC filter + 24 V PSU | ND: 68 A | HD: 54 A | Input (ND): 62 A / 28 kVA | Weight: 36 kg
CIMR-UA2A0081 Base model (specify enclosure) | Option: Standard model | ND: 81 A | HD: 68 A | Input (ND): 74 A / 34 kVA
CIMR-UA2A0081AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Standard model | ND: 81 A | HD: 68 A | Input (ND): 74 A / 34 kVA | Weight: 35 kg
CIMR-UA2E0081 Base model (specify enclosure) | Option: Built-in EMC filter | ND: 81 A | HD: 68 A | Input (ND): 74 A / 34 kVA
CIMR-UA2E0081AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in EMC filter | ND: 81 A | HD: 68 A | Input (ND): 74 A / 34 kVA | Weight: 36 kg
CIMR-UA2P0081 Base model (specify enclosure) | Option: Built-in 24 V PSU | ND: 81 A | HD: 68 A | Input (ND): 74 A / 34 kVA
CIMR-UA2P0081AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in 24 V PSU | ND: 81 A | HD: 68 A | Input (ND): 74 A / 34 kVA | Weight: 35 kg
CIMR-UA2W0081 Base model (specify enclosure) | Option: EMC filter + 24 V PSU | ND: 81 A | HD: 68 A | Input (ND): 74 A / 34 kVA
CIMR-UA2W0081AAA Enclosure: IP00 (UL Type 1 with kit) | Option: EMC filter + 24 V PSU | ND: 81 A | HD: 68 A | Input (ND): 74 A / 34 kVA | Weight: 36 kg
CIMR-UA2A0104 Base model (specify enclosure) | Option: Standard model | ND: 104 A | HD: 81 A | Input (ND): 95 A / 43 kVA
CIMR-UA2A0104AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Standard model | ND: 104 A | HD: 81 A | Input (ND): 95 A / 43 kVA | Weight: 60 kg
CIMR-UA2E0104 Base model (specify enclosure) | Option: Built-in EMC filter | ND: 104 A | HD: 81 A | Input (ND): 95 A / 43 kVA
CIMR-UA2E0104AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in EMC filter | ND: 104 A | HD: 81 A | Input (ND): 95 A / 43 kVA | Weight: 63 kg
CIMR-UA2P0104 Base model (specify enclosure) | Option: Built-in 24 V PSU | ND: 104 A | HD: 81 A | Input (ND): 95 A / 43 kVA
CIMR-UA2P0104AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in 24 V PSU | ND: 104 A | HD: 81 A | Input (ND): 95 A / 43 kVA | Weight: 60 kg
CIMR-UA2W0104 Base model (specify enclosure) | Option: EMC filter + 24 V PSU | ND: 104 A | HD: 81 A | Input (ND): 95 A / 43 kVA
CIMR-UA2W0104AAA Enclosure: IP00 (UL Type 1 with kit) | Option: EMC filter + 24 V PSU | ND: 104 A | HD: 81 A | Input (ND): 95 A / 43 kVA | Weight: 63 kg
CIMR-UA2A0130 Base model (specify enclosure) | Option: Standard model | ND: 130 A | HD: 104 A | Input (ND): 118 A / 54 kVA
CIMR-UA2A0130AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Standard model | ND: 130 A | HD: 104 A | Input (ND): 118 A / 54 kVA | Weight: 60 kg
CIMR-UA2E0130 Base model (specify enclosure) | Option: Built-in EMC filter | ND: 130 A | HD: 104 A | Input (ND): 118 A / 54 kVA
CIMR-UA2E0130AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in EMC filter | ND: 130 A | HD: 104 A | Input (ND): 118 A / 54 kVA | Weight: 63 kg
CIMR-UA2P0130 Base model (specify enclosure) | Option: Built-in 24 V PSU | ND: 130 A | HD: 104 A | Input (ND): 118 A / 54 kVA
CIMR-UA2P0130AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in 24 V PSU | ND: 130 A | HD: 104 A | Input (ND): 118 A / 54 kVA | Weight: 60 kg
CIMR-UA2W0130 Base model (specify enclosure) | Option: EMC filter + 24 V PSU | ND: 130 A | HD: 104 A | Input (ND): 118 A / 54 kVA
CIMR-UA2W0130AAA Enclosure: IP00 (UL Type 1 with kit) | Option: EMC filter + 24 V PSU | ND: 130 A | HD: 104 A | Input (ND): 118 A / 54 kVA | Weight: 63 kg
CIMR-UA2A0154 Base model (specify enclosure) | Option: Standard model | ND: 154 A | HD: 130 A | Input (ND): 140 A / 64 kVA
CIMR-UA2A0154AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Standard model | ND: 154 A | HD: 130 A | Input (ND): 140 A / 64 kVA | Weight: 110 kg
CIMR-UA2E0154 Base model (specify enclosure) | Option: Built-in EMC filter | ND: 154 A | HD: 130 A | Input (ND): 140 A / 64 kVA
CIMR-UA2E0154AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in EMC filter | ND: 154 A | HD: 130 A | Input (ND): 140 A / 64 kVA | Weight: 115 kg
CIMR-UA2P0154 Base model (specify enclosure) | Option: Built-in 24 V PSU | ND: 154 A | HD: 130 A | Input (ND): 140 A / 64 kVA
CIMR-UA2P0154AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in 24 V PSU | ND: 154 A | HD: 130 A | Input (ND): 140 A / 64 kVA | Weight: 110 kg
CIMR-UA2W0154 Base model (specify enclosure) | Option: EMC filter + 24 V PSU | ND: 154 A | HD: 130 A | Input (ND): 140 A / 64 kVA
CIMR-UA2W0154AAA Enclosure: IP00 (UL Type 1 with kit) | Option: EMC filter + 24 V PSU | ND: 154 A | HD: 130 A | Input (ND): 140 A / 64 kVA | Weight: 115 kg
CIMR-UA2A0192 Base model (specify enclosure) | Option: Standard model | ND: 192 A | HD: 154 A | Input (ND): 175 A / 80 kVA
CIMR-UA2A0192AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Standard model | ND: 192 A | HD: 154 A | Input (ND): 175 A / 80 kVA | Weight: 110 kg
CIMR-UA2E0192 Base model (specify enclosure) | Option: Built-in EMC filter | ND: 192 A | HD: 154 A | Input (ND): 175 A / 80 kVA
CIMR-UA2E0192AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in EMC filter | ND: 192 A | HD: 154 A | Input (ND): 175 A / 80 kVA | Weight: 115 kg
CIMR-UA2P0192 Base model (specify enclosure) | Option: Built-in 24 V PSU | ND: 192 A | HD: 154 A | Input (ND): 175 A / 80 kVA
CIMR-UA2P0192AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in 24 V PSU | ND: 192 A | HD: 154 A | Input (ND): 175 A / 80 kVA | Weight: 110 kg
CIMR-UA2W0192 Base model (specify enclosure) | Option: EMC filter + 24 V PSU | ND: 192 A | HD: 154 A | Input (ND): 175 A / 80 kVA
CIMR-UA2W0192AAA Enclosure: IP00 (UL Type 1 with kit) | Option: EMC filter + 24 V PSU | ND: 192 A | HD: 154 A | Input (ND): 175 A / 80 kVA | Weight: 115 kg
CIMR-UA2A0248 Base model (specify enclosure) | Option: Standard model | ND: 248 A | HD: 192 A | Input (ND): 226 A / 103 kVA
CIMR-UA2A0248AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Standard model | ND: 248 A | HD: 192 A | Input (ND): 226 A / 103 kVA | Weight: 176 kg
CIMR-UA2E0248 Base model (specify enclosure) | Option: Built-in EMC filter | ND: 248 A | HD: 192 A | Input (ND): 226 A / 103 kVA
CIMR-UA2E0248AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in EMC filter | ND: 248 A | HD: 192 A | Input (ND): 226 A / 103 kVA | Weight: 181 kg
CIMR-UA2P0248 Base model (specify enclosure) | Option: Built-in 24 V PSU | ND: 248 A | HD: 192 A | Input (ND): 226 A / 103 kVA
CIMR-UA2P0248AAA Enclosure: IP00 (UL Type 1 with kit) | Option: Built-in 24 V PSU | ND: 248 A | HD: 192 A | Input (ND): 226 A / 103 kVA | Weight: 176 kg
CIMR-UA2W0248 Base model (specify enclosure) | Option: EMC filter + 24 V PSU | ND: 248 A | HD: 192 A | Input (ND): 226 A / 103 kVA
CIMR-UA2W0248AAA Enclosure: IP00 (UL Type 1 with kit) | Option: EMC filter + 24 V PSU | ND: 248 A | HD: 192 A | Input (ND): 226 A / 103 kVA | Weight: 181 kg
AC DrivesYASKAWA
80 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA U1000 Matrix Converter (200 V class, 28-248 A)

Brand YASKAWA·AC Drives

Available part numbers (80)

CIMR-UA2A0028, CIMR-UA2A0028AAA, CIMR-UA2E0028, CIMR-UA2E0028AAA, CIMR-UA2P0028, CIMR-UA2P0028AAA, CIMR-UA2W0028, CIMR-UA2W0028AAA, CIMR-UA2A0042, CIMR-UA2A0042AAA + 70 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
