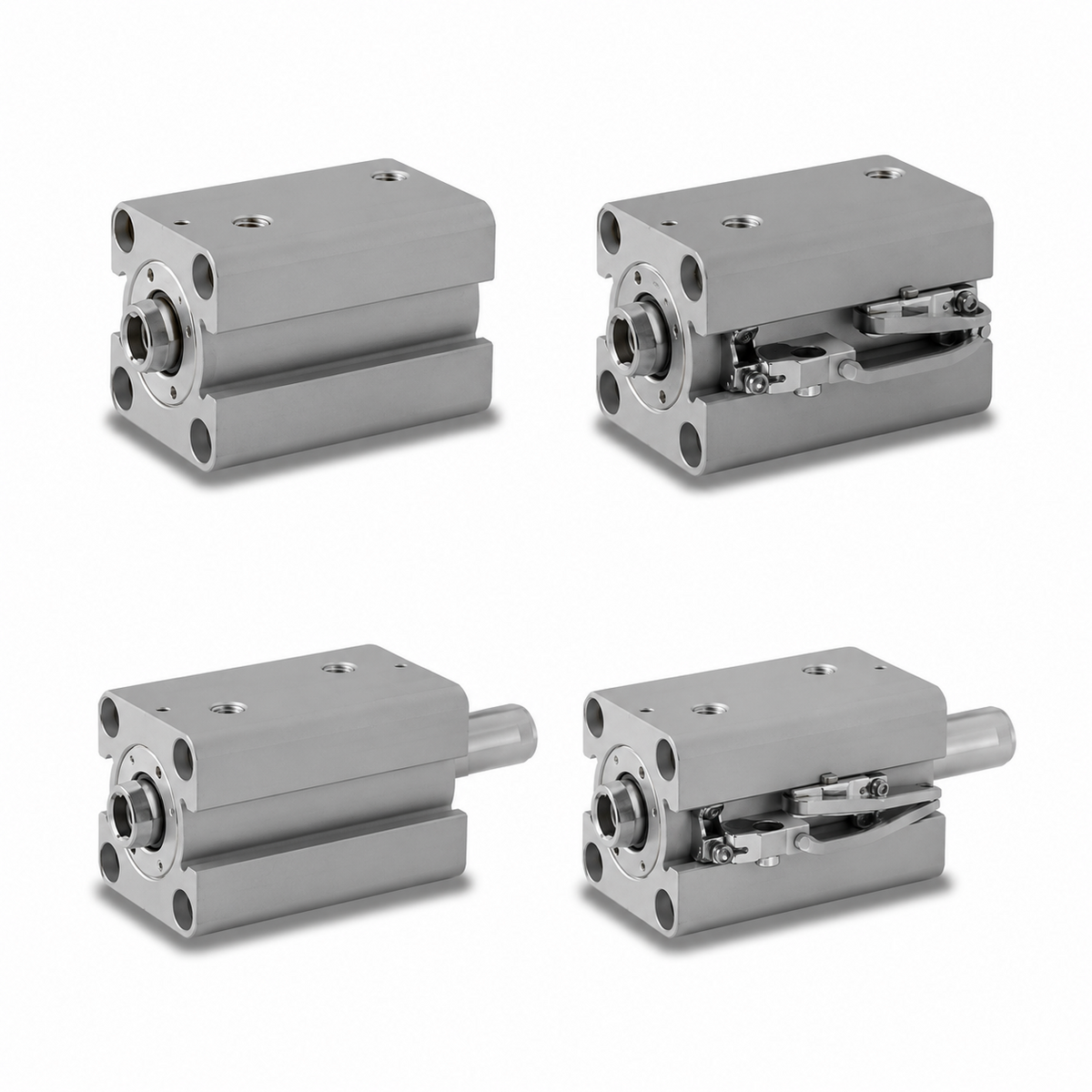

YUKEN CBY14 Series thin hydraulic cylinder.

Key features

  • The overall length is about 1/3 of a conventional cylinder, so it can be installed even in tight spaces that are difficult for conventional cylinders
  • Light and compact design with an integrated cylinder tube and cover, the body using a special aluminum alloy
  • Usable up to 16 MPa depending on the operating pressure and number of cycles
  • Bore sizes 32-100 mm
  • Cushion: none (N)
  • Standard enumerated strokes

Specifications

Series CBY14 (thin/compact hydraulic cylinder)
Rod Configuration Single rod
Cushion None (N) - fixed
Rated Pressure 14 MPa @ 2.5x10^6 cycles / 12 MPa @ 1.0x10^7 cycles
Proof Pressure 20 MPa
Max Usable Pressure up to 16 MPa (depending on operating pressure & cycles)
Min Operating Pressure 0.3 MPa
Speed Range 8-100 mm/s
Stroke Tolerance 0 to +0.8 mm
Rod End Thread Tolerance JIS B0211-6H/6g
Support (selectable) SD, LD, FA, FB
Rod End Thread no symbol: female (Rc) / T: male
