Photoelectric
Autonics

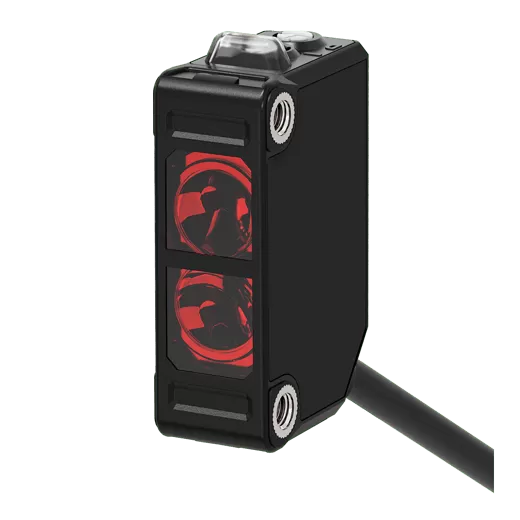

[AUTONICS] BJX Series Rectangular Photoelectric Sensors
Family ID: AUTONICS-BJX-SERIES
Rectangular photoelectric sensors W 11 x H 32 x L 20 mm with through-beam, polarized retroreflective, and diffuse reflective types. Mirror Surface Rejection (M.S.R.) function on polarized type. Light/Dark ON switch. IP65 rated. Cable and M8 connector type variants.
28 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-BJX7M-TDT-1 | — | AUTONICS | Photoelectric sensor | BJX Series | Through-beam | 7 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX7M-TDT-2 | — | AUTONICS | Photoelectric sensor | BJX Series | Through-beam | 7 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX7M-TDT-C1 | — | AUTONICS | Photoelectric sensor | BJX Series | Through-beam | 7 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function | ||
| AUTONICS-BJX7M-TDT-C2 | — | AUTONICS | Photoelectric sensor | BJX Series | Through-beam | 7 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function | ||
| AUTONICS-BJX10M-TDT-1 | — | AUTONICS | Photoelectric sensor | BJX Series | Through-beam | 10 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX10M-TDT-2 | — | AUTONICS | Photoelectric sensor | BJX Series | Through-beam | 10 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX10M-TDT-C1 | — | AUTONICS | Photoelectric sensor | BJX Series | Through-beam | 10 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function | ||
| AUTONICS-BJX10M-TDT-C2 | — | AUTONICS | Photoelectric sensor | BJX Series | Through-beam | 10 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function | ||
| AUTONICS-BJX15M-TDT-1 | — | AUTONICS | Photoelectric sensor | BJX Series | Through-beam | 15 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX15M-TDT-2 | — | AUTONICS | Photoelectric sensor | BJX Series | Through-beam | 15 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX15M-TDT-C1 | — | AUTONICS | Photoelectric sensor | BJX Series | Through-beam | 15 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function | ||
| AUTONICS-BJX15M-TDT-C2 | — | AUTONICS | Photoelectric sensor | BJX Series | Through-beam | 15 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function | ||
| AUTONICS-BJX3M-PDT-1 | — | AUTONICS | Photoelectric sensor | BJX Series | Polarized retroreflective | 3 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX3M-PDT-2 | — | AUTONICS | Photoelectric sensor | BJX Series | Polarized retroreflective | 3 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX3M-PDT-C1 | — | AUTONICS | Photoelectric sensor | BJX Series | Polarized retroreflective | 3 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function | ||
| AUTONICS-BJX3M-PDT-C2 | — | AUTONICS | Photoelectric sensor | BJX Series | Polarized retroreflective | 3 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function | ||
| AUTONICS-BJX100-DDT-1 | — | AUTONICS | Photoelectric sensor | BJX Series | Diffuse reflective | 100 mm | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX100-DDT-2 | — | AUTONICS | Photoelectric sensor | BJX Series | Diffuse reflective | 100 mm | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX100-DDT-C1 | — | AUTONICS | Photoelectric sensor | BJX Series | Diffuse reflective | 100 mm | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function | ||
| AUTONICS-BJX100-DDT-C2 | — | AUTONICS | Photoelectric sensor | BJX Series | Diffuse reflective | 100 mm | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function | ||
| AUTONICS-BJX300-DDT-1 | — | AUTONICS | Photoelectric sensor | BJX Series | Diffuse reflective | 300 mm | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX300-DDT-2 | — | AUTONICS | Photoelectric sensor | BJX Series | Diffuse reflective | 300 mm | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX300-DDT-C1 | — | AUTONICS | Photoelectric sensor | BJX Series | Diffuse reflective | 300 mm | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function | ||
| AUTONICS-BJX300-DDT-C2 | — | AUTONICS | Photoelectric sensor | BJX Series | Diffuse reflective | 300 mm | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function | ||
| AUTONICS-BJX1M-DDT-1 | — | AUTONICS | Photoelectric sensor | BJX Series | Diffuse reflective | 1 m | NPN open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX1M-DDT-2 | — | AUTONICS | Photoelectric sensor | BJX Series | Diffuse reflective | 1 m | PNP open collector | 10-30 VDC | Cable type | IP65 | M.S.R. function | ||
| AUTONICS-BJX1M-DDT-C1 | — | AUTONICS | Photoelectric sensor | BJX Series | Diffuse reflective | 1 m | NPN open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function | ||
| AUTONICS-BJX1M-DDT-C2 | — | AUTONICS | Photoelectric sensor | BJX Series | Diffuse reflective | 1 m | PNP open collector | 10-30 VDC | M8 connector type | IP65 | M.S.R. function |
